Shortnose sturgeon (Acipenser brevirostrum): COSEWIC assessment and status report 2015

Shortnose Sturgeon
Photo/illustration of Bluenose Stugeon by Couch, Karen J
Illustration/Photo: Karen J. Couch © U.S. Fish and Wildlife Service [Public domain], via Wikimedia Commons.

Special Concern
2015

Table of Contents

List of Figures

List of Tables

List of Appendices

Document Information

COSEWIC
Committee on the Status
of Endangered Wildlife
in Canada

COSEWIC logo

COSEPAC
Comité sur la situation
des espèces en péril
au Cananda

COSEWIC status reports are working documents used in assigning the status of wildlife species suspected of being at risk. This report may be cited as follows:

COSEWIC. 2015. COSEWIC assessment and status report on the Shortnose Sturgeon Acipenser brevirostrum in Canada. Committee on the Status of Endangered Wildlife in Canada. Ottawa. xii + 48 pp. (Species at Risk Public Registry website).

Previous report(s):

COSEWIC 2005. COSEWIC assessment and update status report on the shortnose sturgeon Acipenser brevirostrum in Canada. Committee on the Status of Endangered Wildlife in Canada. Ottawa. vi + 27 pp. (Species at Risk Public Registry website).

Dadswell, M.J. 1980. COSEWIC status report on the shortnose sturgeon Acipenser brevirostrum in Canada. Committee on the Status of Endangered Wildlife in Canada. Ottawa. 18 pp.

Production note:

COSEWIC acknowledges Dr. Matthew K. Litvak for writing the status report on the Shortnose Sturgeon, Acipenser brevirostrumin Canada, prepared under contract with Environment Canada. This status report was overseen and edited by Dr. Rick Taylor, Co-chair of the COSEWIC Freshwater Fishes Specialist Subcommittee.

For additional copies contact:

COSEWIC Secretariat
c/o Canadian Wildlife Service
Environment Canada
Ottawa, ON
K1A 0H3

Tel.: 819-938-4125
Fax: 819-938-3984
COSEWIC E-mail
COSEWIC Website

Également disponible en français sous le titre Ếvaluation et Rapport de situation du COSEPAC sur L’esturgeon à museau court (Acipenser brevirostrum) au Canada.

Cover illustration/photo:

Shortnose Sturgeon -- Cover image by Couch, Karen J., U.S. Fish and Wildlife Service [Public domain], via Wikimedia Commons.

COSEWIC Assessment Summary

Assessment Summary – May 2015

Common name
Shortnose Sturgeon
Scientific name
Acipenser brevirostrum
Status
Special Concern
Reason for designation
This large-bodied, slow-growing, late-maturing fish is found only in a single river estuary system in Canada where spawning fish aggregate in a single known location. Although there are no imminent threats toward the species, its limited distribution makes the species vulnerable to becoming Threatened if conditions thought to negatively impact it (variable flow patterns, pollution, bycatch in commercial fisheries, and poaching) are not managed effectively.
Occurrence
New Brunswick, Nova Scotia
Status history
Designated Special Concern in April 1980. Status re-examined and confirmed in May 2005 and in May 2015

COSEWIC Executive Summary

Shortnose Sturgeon
Acipenser brevirostrum

Wildlife Species Description and Significance

The Shortnose Sturgeon is one of five species of sturgeon in Canada. It has an elongate body, which is cylindrical at the abdomen, a heterocercal tail, and stiff paired fins. The Shortnose Sturgeon has four barbels that hang down in front of the mouth and is distinguished from the co-occuring Atlantic Sturgeon by a relatively short snout. The mouth is ventrally located and is protrusible. The Shortnose Sturgeon is a small-sized sturgeon growing to a maximum fork length of about 125 cm and may live to be over 60 years old.

Distribution

The Shortnose Sturgeon is distributed across 25 rivers along the east coast of North America from New Brunswick south to Florida, but in Canada it is known only from the Saint John River system in New Brunswick.

Habitat

The Shortnose Sturgeon spawns in fast flowing water over boulder and gravel substrates. In the Saint John River, Shortnose Sturgeon are suspected to spawn within a 10 km stretch below the Mactaquac Dam, which is 138 km upstream from the mouth of the Saint John River estuary. One major overwintering site has been confirmed in Canada; adults overwinter in fast moving water at the junction of the Kennebecasis and Hammond rivers at depths of 3 to 6 m. Little is known about the juveniles, but they have been caught between 35 and 120 km upstream from the mouth of the Saint John River estuary. Mean size of juveniles is smaller in upriver samples suggesting that younger fish use more upstream habitats.

Biology

Shortnose Sturgeon are relatively long-lived fishes; the oldest female and male Shortnose Sturgeon recorded from the Saint John River were 67 and 32 years of age, respectively. The largest recorded specimen captured in the Saint John River was 23.6 kg with a fork length of 122 cm. Males are generally lighter than females at the same lengths. The weight-length relationship is allometric, with larger fish being relatively heavier than smaller fish. The growth rate of adults is between 490-540 g per year. Males and females first become reproductive at 12 and 18 years old, respectively. Females produce up to 200,000 eggs and appear to spawn every three years. Shortnose Sturgeon spawn from mid-April to June and the eggs are demersal and adhesive. As is typical for sturgeons, survival through the early life history stages has been identified as a key factor controlling recruitment.

Population Size and Trends

There has been no total population estimate of the lower Saint John River estuary population of Shortnose Sturgeon since the 1970s when a population size of 18,000 adult fish was estimated over the 1973-1977 time period. Recent work on the overwintering population at the confluence of the Hammond and Kennebecasis rivers, however, suggests that the numbers at this site have been stable since 2005; abundance ranged between 3,852 and 5,222 fish greater than 50 cm in length. Catch per unit effort, using 5-6” stretched-mesh gill nets, at this site has not changed appreciably over the past 26 years. By contrast, some Aboriginal traditional knowledge suggests that there has been a decline in abundance across the entire river since the Mactaquac Dam was completed in 1968.

Threats and Limiting Factors

There are no well-documented imminent threats towards the Shortnose Sturgeon, but several potential threats exist. The Mactaquac Dam prevents the potential for migration and spawning upstream of the dam. There is currently no effective way to allow passage of Shortnose Sturgeon over this dam. The dam controls water flow and, therefore, some aspects of habitat availability and quality including water temperature. The Saint John River is a highly developed area with residential and industrial activities all impacting water quality. Because Shortnose Sturgeon are long-lived, bottom-dwelling fish and consume prey living in the sediments, they are exposed to contaminants in both sediments and the prey items. Shortnose Sturgeon are subject to by-catch in the Gaspereau, American Shad, American Eel and Atlantic Sturgeon fisheries. They are also caught in a recreational fishery, but the minimum size for retention (120 cm) protects the majority of the population. Muskellunge, an invasive, predatory fish species in the Saint John River, may prey upon Shortnose Sturgeon juveniles.

Protection, Status, and Ranks

The Shortnose Sturgeon was assessed as a species of Special Concern in Canada in 1980 and reassessed as such in 2005. The Shortnose Sturgeon was listed as Special Concern under Schedule 1 of the Canadian Species at Risk Act (SARA) in 2009 and under New Brunswick’s SARA in 2013. Fisheries and Oceans Canada is currently developing a management plan for Shortnose Sturgeon as required under Canada’s SARA. Recreational fishing activities on the river are regulated; the Maritime Provinces Fishery Regulations (SOR/93-55) Section 97 includes size restrictions for retention, and gear and seasonal closures. Angling closures are in effect for all non-tidal waters frequented by the Shortnose Sturgeon. The Shortnose Sturgeon has been listed as Endangered by the Endangered Species Act in the United States since March 1967. The Shortnose Sturgeon has had IUCN Red Book Status since 1996, when it was assessed as Vulnerable, and is listed on Appendix 1 of CITES.

Technical Summary

Scientific Name:
Acipenser brevirostrum
English Name:
Shortnose Sturgeon
French Name:
Esturgeon à museau court
Range of occurrence in Canada (province/territory/ocean):
New Brunswick (Saint John River and estuary) and Nova Scotia (Minas Basin).

Demographic Information

Extent and Occupancy Information

Number of Mature Individuals (in each population)

Quantitative Analysis

Threats (actual or imminent, to populations or habitats)

No imminent threats. Lower level threats include:

Damming and water regulation

By-catch fin commercial Gaspereau, American Shad, American Eel and Atlantic Sturgeon fisheries

Recreational fishery (essentially a catch and release fishery because only fish larger than 120 cm fork length can be kept--a size that exceeds that of most Shortnose Sturgeon. Some hooking mortality is likely associated with the catch and release fishery)

Compromised water quality (from industrial pollution, agricultural runoff, forestry and pulp and paper mills, municipal waste water)

Potential threats

Invasive species

Sea level rise from global warming increasing water levels and promoting further seawater intrusion.

Rescue Effect (immigration from outside Canada)

Data-Sensitive Species

Status History

Status and Reasons for Designation:

Status:
Special Concern
Alpha-numeric code:
Not applicable
Reasons for designation:
This large-bodied, slow-growing, late-maturing fish is found only in a single river estuary system in Canada where spawning fish aggregate in a single known location. Although there are no imminent threats toward the species, its limited distribution makes the species vulnerable to becoming Threatened if conditions thought to negatively impact it (variable flow patterns, pollution, bycatch in commercial fisheries, and poaching) are not managed effectively.

Applicability of Criteria

Criterion A:
Not applicable as abundance trends are unknown.
Criterion B:
Not applicable. Comes close to meeting Endangered for B2a as IAO (< 500 km²), and the number of known spawning locations (< 5) are below thresholds, but no other sub-criteria apply (e.g., no evidence of continuing decline in habitat quality, area, or number of mature individuals).
Criterion C:
Not applicable. Exceeds thresholds.
Criterion D:
Not applicable. Although the estimated number of spawning locations (< 5) is under the threshold for Threatened, there is no imminent threat that could make the species susceptible to becoming at least critically endangered over a short period of time.
Criterion E:
Not applicable as data necessary for analysis are not available.

Preface

Since publication of the last COSEWIC Status Report on the Shortnose Sturgeon in 2005, research indicates that there is little gene flow between the Saint John population and the other 18 Shortnose Sturgeon genetically distinct populations along the east coast of North America. An overwintering site was discovered at the junction of the Kennebecasis and Hammond rivers in the Saint John River and confirmed through video observations. Fish overwintering at this site migrated upriver in early spring to a spawning site below the Mactaquac Dam at river kilometre 138. Further, recent work modelling time of hatching and time of reproduction from larvae caught below the Mactaquac Dam suggests that Shortnose Sturgeon spawn from April to June in the Saint John River. A study examining the cause of death of larvae caught in D-frame nets suggested that up to 25% died prior to collection, perhaps owing to environmental changes as a result of flow manipulation at the Mactaquac Dam. Shortnose Sturgeon forage heavily on benthic invertebrates throughout their life history until late fall, which is later than previously acknowledged. Gastric flushing and stable isotope analysis suggested that Shortnose Sturgeon in the Kennebecasis River and Long Reach contained benthic invertebrates from both shallow and deep habitats. Recent work on the overwintering site discovered at the confluence of the Kennebecasis and Hammond rivers suggests that the population in this region has been stable (3,500-5,800) over a seven-year period. There is still no information available on the possibility of individuals, or their attributes, living above Mactaquac Dam.

COSEWIC History

The Committee on the Status of Endangered Wildlife in Canada (COSEWIC) was created in 1977 as a result of a recommendation at the Federal-Provincial Wildlife Conference held in 1976. It arose from the need for a single, official, scientifically sound, national listing of wildlife species at risk. In 1978, COSEWIC designated its first species and produced its first list of Canadian species at risk. Species designated at meetings of the full committee are added to the list. On June 5, 2003, the Species at Risk Act (SARA) was proclaimed. SARA establishes COSEWIC as an advisory body ensuring that species will continue to be assessed under a rigorous and independent scientific process.

COSEWIC Mandate

The Committee on the Status of Endangered Wildlife in Canada (COSEWIC) assesses the national status of wild species, subspecies, varieties, or other designatable units that are considered to be at risk in Canada. Designations are made on native species for the following taxonomic groups: mammals, birds, reptiles, amphibians, fishes, arthropods, molluscs, vascular plants, mosses, and lichens.

COSEWIC Membership

COSEWIC comprises members from each provincial and territorial government wildlife agency, four federal entities (Canadian Wildlife Service, Parks Canada Agency, Department of Fisheries and Oceans, and the Federal Biodiversity Information Partnership, chaired by the Canadian Museum of Nature), three non-government science members and the co-chairs of the species specialist subcommittees and the Aboriginal Traditional Knowledge subcommittee. The Committee meets to consider status reports on candidate species.

Definitions (2015

Wildlife Species
A species, subspecies, variety, or geographically or genetically distinct population of animal, plant or other organism, other than a bacterium or virus, that is wild by nature and is either native to Canada or has extended its range into Canada without human intervention and has been present in Canada for at least 50 years.
Extinct (X)
A wildlife species that no longer exists.
Extirpated (XT)
A wildlife species no longer existing in the wild in Canada, but occurring elsewhere.
Endangered (E)
A wildlife species facing imminent extirpation or extinction.
Threatened (T)
A wildlife species likely to become endangered if limiting factors are not reversed.
Special Concern (SC)
(Note: Formerly described as “Vulnerable” from 1990 to 1999, or “Rare” prior to 1990.)
A wildlife species that may become a threatened or an endangered species because of a combination of biological characteristics and identified threats.
Not at Risk (NAR)
(Note: Formerly described as “Not In Any Category”, or “No Designation Required.”)
A wildlife species that has been evaluated and found to be not at risk of extinction given the current circumstances.
Data Deficient (DD)
(Note: Formerly described as “Indeterminate” from 1994 to 1999 or “ISIBD” [insufficient scientific information on which to base a designation] prior to 1994. Definition of the [DD] category revised in 2006.)
A category that applies when the available information is insufficient (a) to resolve a species’ eligibility for assessment or (b) to permit an assessment of the species’ risk of extinction.

The Canadian Wildlife Service, Environment Canada, provides full administrative and financial support to the COSEWIC Secretariat.

Wildlife Species Description and Significance

Name and Classification

Scientific Name:
Acipenser brevirostrum Lesueur, 1818
Common Names:
Shortnose Sturgeon, Shortnosed Sturgeon and Little Sturgeon (Saint John River, NB), Pinkster and Roundnoser (Hudson River, NY), Bottlenose or Mammose (Delaware River), Salmon Sturgeon (Carolinas), Soft-shell or Lake Sturgeon (Altamaha River) (Dadswell et al. 1984) and Esturgeon à museau court.

Taxonomy

Class:
Osteichthyes
Subclass:
Actinopterygii
Infraclass:
Chondrostei
Order:
Acipenseriformes
Family:
Acipenseridae
Genus:
Acipenser
Species:
Acipenser brevirostrum
Maliseet name:
Buzgus

Morphological Description

The Shortnose Sturgeon is a relatively small-bodied sturgeon with a maximum reported total length of 143 cm (Birstein 1993). The body of the Shortnose Sturgeon is elongate and cylindrical in the abdomen and tail, but somewhat depressed anterior of the pectoral girdle (Figure 1). The Shortnose Sturgeon is a heavily armoured fish with five rows of bony scutes (also called plates or bucklers), an inferior elongated protrusible wide mouth, four barbels anterior to mouth on the ventral surface of the rostrum, small eyes, and spiracles. The head is somewhat short and highly variable in shape (e.g., the head is more prominent in younger fish). The caudal peduncle is narrow, with the dorsal fin posterior to the paired pelvic fins. The caudal fin is heterocercal with a prominent long upper lobe and a short and broad lower lobe. The pectoral fins are large and relatively stiff. The first pectoral fin ray is thick and ossified. The body has no scales, but has minute denticles.

Figure 1. Lateral view of adult Shortnose Sturgeon. The distance between the white arrows represents fork length (121 cm), the distance between the white arrow at the snout and the angled black arrow represents total length (135 cm).
Lateral view of adult Shortnose Sturgeon. The distance between the white arrows represents fork length (121 cm), the distance between the white arrow at the snout and the angled black arrow represents total length (135 cm).
Long description for Figure 1

Photo of an adult Shortnose Sturgeon (lateral view). The body is elongate and cylindrical in the abdomen and tail. There are five rows of bony scutes, an inferior elongated mouth, and four barbels anterior to the mouth on the ventral surface of the rostrum. The caudal peduncle is narrow, with the dorsal fin posterior to the paired pelvic fins. The caudal fin is heterocercal. Shortnose Sturgeon have a dark, mottled chain-like patterning on the dorsal surface of the head over an olive-brown or green background. The lateral surfaces are lighter moving ventrally, with the ventral surface white in colour.

The skeleton of the Shortnose Sturgeon is cartilaginous with the exception of the presence of some true bone in the skull, jaws, and pectoral girdle. The notochord is un-constricted (Schmitz 1998), and the Shortnose Sturgeon possesses a swim bladder that is joined to the esophagus (physostomous condition). The esophagus is muscular and acts like a crop or gizzard to crush invertebrates. The Shortnose Sturgeon has a spiral valve for an intestine, similar to that found in fishes of the class Chondrichthyes (sharks, skates, rays, and ratfishes; Vladykov and Greeley 1963).

Shortnose Sturgeon possess 22-29 gill rakers on the first arch, 38-42 rays on the dorsal fin, 19-22 rays on the anal fin, 8-13 dorsal scutes, 22-33 lateral scutes, 7-11 ventral scutes, at least two plates between the dorsal fin and the caudal fulcrum, and usually one or two rows of pre-anal fin plates (Vladykov and Greeley 1963; Scott and Crossman 1973).

The colour of the Shortnose Sturgeon is variable. Fish have a dark, mottled chain-like patterning on the dorsal surface of the head over an olive-brown or green background. The lateral surfaces are lighter moving ventrally, with the ventral surface white in colour (Figure 1). The dorsal scutes are lighter brown while the lateral, ventral, and pre-anal scutes have a yellow tinge. The leading edges of fins are lighter and sometimes white.

The Atlantic Sturgeon (Acipenser oxyrhynchus) is most often found in association with the Shortnose Sturgeon, including within the Saint John River system. Mature adults are easily distinguished by size, as Atlantic Sturgeon are much larger than Shortnose Sturgeon. The largest recorded Atlantic Sturgeon was caught on the Saint John River; it was 4.59 m and weighed 364.9 kg (Vladykov and Greeley 1963). When juvenile Atlantic Sturgeon are caught with similar sized juvenile and adult Shortnose Sturgeon, discrimination between species is possible using the following characters: 1) proboscis of the young Atlantic Sturgeon is much longer and more tapered than that of the Shortnose Sturgeon (Figure 2); 2) relative mouth size of the Shortnose Sturgeon (>62% of the interorbital width) is larger than that of the Atlantic Sturgeon (<55% of the interorbital width) (Figure 2); 3) 19-22 anal fin rays in the Shortnose Sturgeon, whereas there are 25-30 anal fin rays present in the Atlantic Sturgeon; and 4) 19-22 dorsal fin rays for Shortnose Sturgeon and 38-46 for Atlantic Sturgeon (Vladykov and Greeley 1963; Scott and Crossman 1973; Scott and Scott 1988). Although Gorham and McAllister (1974) indicated that bony plates occurred above the anal fin in Atlantic Sturgeon and not Shortnose Sturgeon, which could be used as a potential key character for identification, they are sometimes lacking in Atlantic Sturgeon and this trait is, therefore, not recommended as a diagnostic feature. Atlantic Sturgeon adults tend to lose the point on their snout as they age and their head shape becomes more similar to the Shortnose Sturgeon, which may cause confusion for recreational anglers that catch the larger Atlantic Sturgeon.

Figure 2. View of mouths of juvenile Shortnose Sturgeon (left) and Atlantic Sturgeon (right). Shortnose Sturgeon mouths are relatively larger (wider) than those of the Atlantic Sturgeon especially when compared to interorbital width.
View of mouths of juvenile Shortnose Sturgeon (left) and Atlantic Sturgeon
Long description for Figure 2

Photo illustrating differences between the snouts and mouths of a juvenile Shortnose Sturgeon and a juvenile Atlantic Sturgeon. The snout of the young Atlantic Sturgeon is much longer and more tapered than that of the Shortnose Sturgeon, while the relative mouth size of the Shortnose Sturgeon (more than 62 percent of the interorbital width) is larger than that of the Atlantic Sturgeon (less than 55 percent of the interorbital width).

Shortnose Sturgeon larvae are approximately 7-11 mm total length when they hatch (Buckley and Kynard 1981). The larvae possess a large yolk-sac with a yolk plug in the spiral valve, which is released when feeding begins. They are considered “direct developers”, i.e., they do not metamorphose from a larval to juvenile body form. Larval Shortnose Sturgeon resemble the juvenile/adult form at approximately 20-25 mm in total length (Bain 1997).

Although Shortnose Sturgeon typically spawn before Atlantic Sturgeon, there is potential for temporal overlap in spawning period. The similarity between the species, particularly during the early life history stages, may cause difficulties in assessment and description of spawning sites and timing and therefore reproductive success and recruitment.

Population Spatial Structure and Variability

The Shortno#_fig03se Sturgeon in Canada is found only within the Saint John River system in New Brunswick (NB, Figure 3). This river system is complex and fragmented by dams. Shortnose Sturgeon are distributed throughout the river from below the Mactaquac Dam at river kilometre (RKM) 138 to the lower estuary. Unfortunately, little is known about whether or not this species exists, or did exist, above the Mactaquac Dam. Raymond (1905) described reports in the 1600s of “sturgeon” being plentiful near Meductic, which is 55 km upstream of the Mactaquac Dam, but Shortnose and Atlantic sturgeon were not distinguished at that time. Further, the historical spawning grounds of Shortnose Sturgeon may have been at Grand Falls, about 100 km upstream of the current location of Mactaquac Dam (Shortnose Sturgeon Review Team 2010).

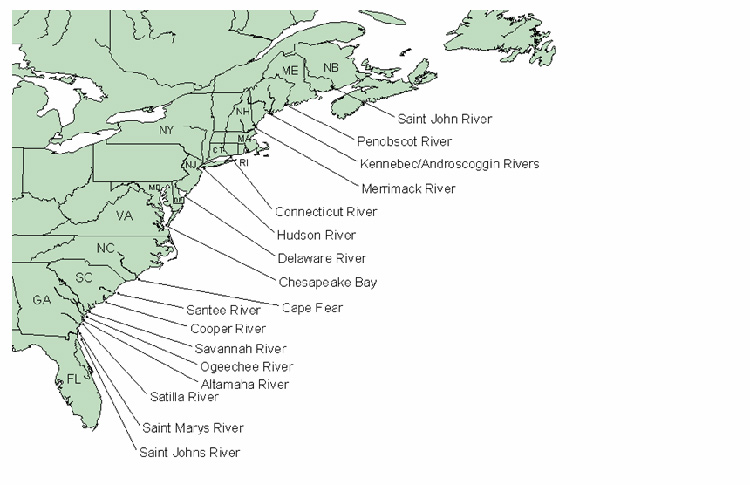

Figure 3. Distribution of the Shortnose Sturgeon in 17 of the 19 distinct population segment rivers in North America. Note that individual rivers within the ACE basin (Ashepoo, Combahee and Edisto Rivers) and Winah Bay, both in South Carolina and that also contain Shortnose Sturgeon, are not shown (see Table 1).
Distribution of the Shortnose Sturgeon in 17 of the 19 distinct population segment rivers in North America.
Long description for Figure 3

Map identifying 17 of the 19 rivers inhabited by distinct population segments of the Shortnose Sturgeon. These rivers occur from New Brunswick to Florida along the eastern coast of North America

Evidence from mitochondrial and microsatellite DNA studies (see below) suggests that the Shortnose Sturgeon in Canada is genetically distinct from all other populations along the east coast of North America (see review by Shortnose Sturgeon Review Team 2010; DFO 2014a). Indeed, a variety of studies suggest that there is little mixing of Shortnose Sturgeon from the Saint John River with those other populations from the Gulf of Maine. By contrast, Wirgin et al. (2010) examined mitochondrial DNA variation in Shortnose Sturgeon and found that there was at least some mixing of fish among some areas. This was not surprising as recent telemetry work in Maine rivers shows that there is more movement among them than previously thought (Fernandes et al. 2010; Zydlewski et al. 2011; Dionne et al. 2013). Wirgin et al. (2010), however, also found that the Saint John River population shared few mitochondrial haplotypes with sturgeon from Maine rivers, and that the Saint John River population was significantly different (p < 0.0001) from the 18 other areas sampled. Female-mediated gene flow between the Penobscot and Saint John rivers was low and was estimated to be 1.9 migrants/generation and 2.1 migrants/generation by the ΦST and coalescent-based approaches, respectively (i.e., many fewer than one fish per year; Wirgin et al. 2010). When data from 11 microsatellite DNA loci were examined, Shortnose Sturgeon from the Saint John River, while still genetically distinct from 17 other localities examined, tended to be most similar to proximate rivers tributary to the Gulf of Maine, which may reflect historical rather than contemporary movements (DFO 2014a).

Designatable Units

The only known population of this species in Canada occurs in the Saint John River. It is genetically distinct from populations in the US (see above). Based on the Canadian National Freshwater Biogeographic Zone (NFBZ) classification adopted by the Committee on the Status of Endangered Wildlife in Canada (COSEWIC), the Canadian population is found within the Maritimes NFBZ. Given the existence of the Shortnose Sturgeon within a single NFBZ and the lack of evidence (genetic, behavioural, or life-history) of divergence within this area, the species is treated as a single designatable unit.

Special Significance

The Shortnose Sturgeon is one of 25 extant species within the Acipenseridae, derivatives of a relatively ancient lineage of ray-finned fishes, all of which are listed as Vulnerable through Endangered by the International Union for the Conservation of Nature (IUCN). The Shortnose Sturgeon is one of five species of sturgeon in Canada. The Saint John River, NB, Shortnose Sturgeon population is the only occurrence of this species in Canada and the most northern population in its North American range. The Shortnose Sturgeon in Canada is recognized as one of 19 “distinct population segments” defined for the global population of the species (National Marine Fisheries Service 1998; DFO 2014a). It is likely that the Shortnose Sturgeon was once, and unknowingly, exploited commercially to some extent in the Atlantic Sturgeon fishery before recognition of the Shortnose Sturgeon as a distinct species in 1950s (Liem and Day 1959).

Distribution

Global Range

Nineteen genetically distinct Shortnose Sturgeon populations have been identified across 25 river systems along the eastern coastline of North America (National Marine Fisheries Service 1998), from Florida to NB (Figure 3). Populations range from 100 adults in Merrimack River, Massachusetts, to an estimated ~38,000 mature adults in the Hudson River, NY (Table 1).

Table 1. List of distinct population segments identified by the National Marine Fisheries Service (1998).
Distinct Population Segments Rivers Inhabited by Shortnose Sturgeon
Saint John Saint John River (New Brunswick, Canada)
Penobscot Penobscot River (Maine)
Kennebec System Sheepscot, Kennebec, and Androscoggin Rivers (Maine)
Merrimack Merrimack River (Massachusetts)
Connecticut Connecticut River (Massachusetts and Connecticut)
Hudson Hudson River (New York)
Delaware Delaware River (New Jersey, Delaware, Pennsylvania)
Chesapeake Bay Chesapeake Bay, Potomac River (Maryland and Virginia)
Cape Fear Cape Fear River (North Carolina)
Winyah Bay Waccamaw, Pee Dee and Black Rivers (South Carolina, North Carolina)
Santee Santee River (South Carolina)
Cooper Cooper River (South Carolina)
“ACE” Basin Ashepoo, Combahee and Edisto Rivers (South Carolina)
Savannah Savannah River (South Carolina, Georgia), and hatchery stocks
Ogeechee Ogeechee River (Georgia)
Altamaha Altamaha (Georgia)
Satilla Satilla River (Georgia)
St. Marys St. Marys River (Florida)
St. Johns St. Johns River (Florida)

Canadian Range

In Canada, the Shortnose Sturgeon is found in the Saint John River system in NB, including a major tributary--the Kennebecasis River (Figure 4). Shortnose Sturgeon have been known to move from natal rivers to coastal environments (Dadswell et al. 1984; Kynard 1997; Savoy 2004; Fernandes 2010; Zydlewski et al. 2011; Dionne et al. 2013). Although the extent of coastal movement for the Saint John River Shortnose Sturgeon is currently unknown, a single individual of unknown population origin was caught in a fishing weir in the Minas Basin, NS, during the summer of 2013 (Dadswell et al. 2013). Tag returns from Dadswell’s (1979) study suggested, however, that there is little emigration from this population. Additionally, from 1998 to the present day, no ultrasonically tagged Shortnose Sturgeon has been observed leaving the Saint John River system (N = 64, M. Litvak unpubl. data).

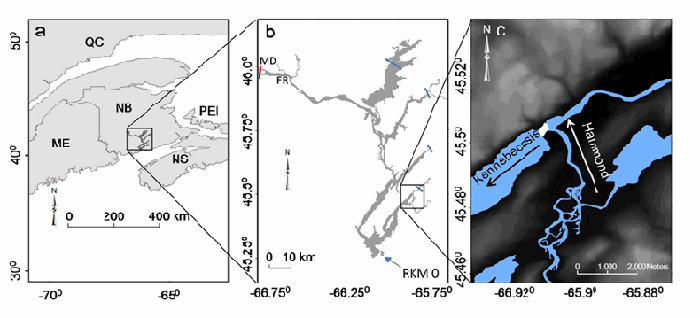

Figure 4. (a) The Atlantic coast, showing the Maritime Provinces of Canada, Québec, and Maine, (b) The Lower Saint John River where MD = approximate locations of Mactaquac Dam at river kilometre (RKM) 138, FR = Fredericton, BB = Belleisle Bay, OR = Oromocto, GA = Gagetown, GL = Grand Lake, WA = Washademoak, LR = Long Reach, SB = South Bay, SJ = Saint John, and the upstream boundaries of field sampling conducted by Dadswell (1979) as represented by the blue bars, (c) The confluence of the Kennebecasis-Hammond rivers (flow of the rivers is indicated by arrows). The white area on (c) is the one confirmed overwintering site for the Shortnose Sturgeon (modified from Usvyatsov et al. 2012a).
Series of three map panels showing the Canadian distribution of the Shortnose Sturgeon.
Long description for Figure 4

Series of three map panels showing the Canadian distribution of the Shortnose Sturgeon. Panel A shows a section of the Atlantic coast of North America that includes the Maritime Provinces of Canada, Quebec, and Maine. Panel B is an enlarged section from Panel A, showing detail of the Lower Saint John River area. Panel C is an enlarged section of Panel B, showing the confluence of the Kennebecasis-Hammond rivers. It indicates the one confirmed overwintering site of the Shortnose Sturgeon.

Extent of Occurrence and Area of Occupancy

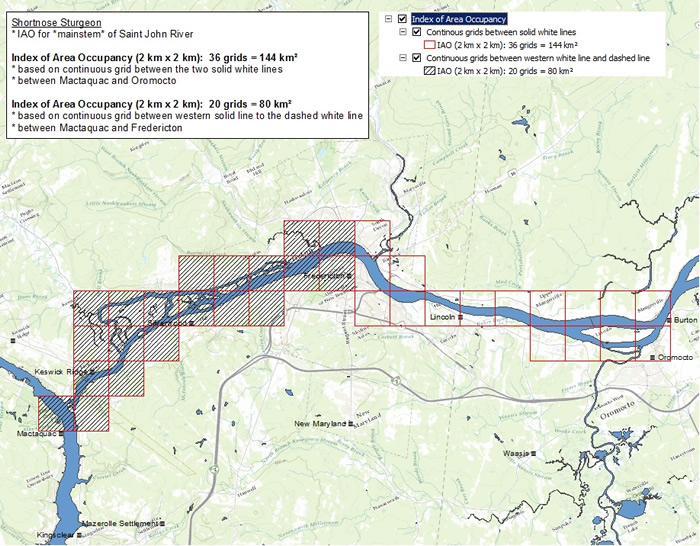

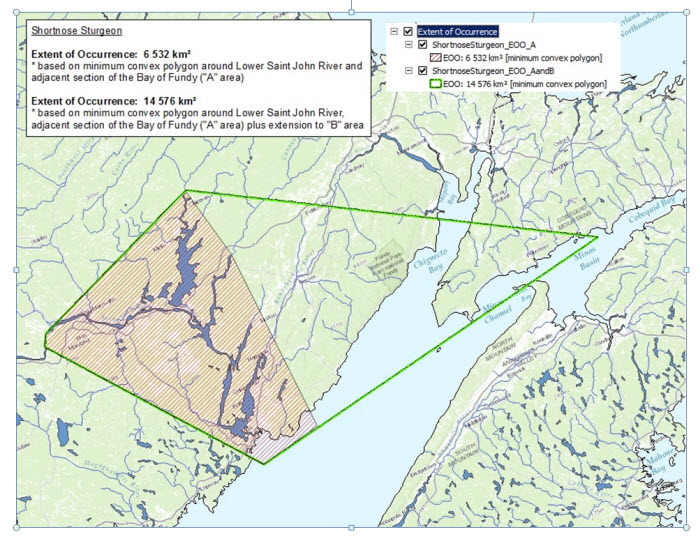

Estimates of extent of occurrence and the index of the area of occupancy are 6,532 km2 and 80 km2, respectively (Appendix 1, 2). The IAO was based on using a 2x2 km2 grid overlain upon mainstem river areas from the downstream end of Mactaquac Dam to about Frederiction that are suspected spawning areas (based on tracking mature adults and high catches of eggs and larval sturgeon--see Reproduction). If the spawning area extends down as far as Oromocto, the IAO would be 144 km2 (Appendix 2). Using known or suspected overwintering areas as the most limiting habitat would generate an IAO of 4-40 km2 (see Figure 4).

Search Effort

The Shortnose Sturgeon was first discovered in the Saint John River in 1957 (Liem and Day 1959). The most extensive study to date was conducted between 1973 and 1977 by Dadswell (1979), who used gill nets to catch, measure, and mark 4,178 Shortnose Sturgeon throughout the lower portion of the Saint John River including various tributaries, lakes and the estuary (Figure 4). Dadswell’s program included sampling in the Jemseg, Oromocto, Canaan, Kennebecasis and Hammond rivers as well as Grand Lake, Washademoak Lake, Otnabog Lake, Belleisle Bay and Darlings Lake (Figure 4). There are also a number of reports of Shortnose Sturgeon observed as by-catch in fisheries in the Saint John Harbour (Dadswell 1979; Litvak pers. obs.). Dadswell (1979) found large numbers of fish throughout the lower Saint John River with overwintering concentrations found in Grand Lake, Gagetown, Washademoak, Belleisle Bay, Long Reach, South Bay and the Kennebecasis River. More recent work began in 1998 focused on the mainstem of the Saint John and Kennebecasis rivers and sampled fish with gill nets (stretched mesh sizes between of 11 and 15 cm) and by angling using barbless circle hooks baited with worms (Litvak, unpubl. data). Li et al. (2007) and later Usvyatsov et al. (2012a) confirmed, through videosampling, the presence of an overwintering site with a large number of Shortnose Sturgeon at the confluence of the Hammond and Kennebecasis rivers (Figure 4). Weights and lengths of fish have also been taken since 1998 during catch and release fishing derbies that occur each fall in the Kennebecasis River. Unfortunately, no search effort has been made above Mactaquac Dam, but it is possible that a now land-locked population of Shortnose Sturgeon exists above this dam (see Population Spatial Structure and Variability). For instance, a landlocked population of Shortnose Sturgeon occurs upstream of the Holyoke Dam (river kilometre, RKM, 140) on the Connecticut River (Taubert 1980). In addition, there has been no concerted effort to assess the occurrence or likelihood of additional spawning areas.

Habitat

Habitat Requirements

The Shortnose Sturgeon has been described as anadromous or amphidromous, i.e., making only short forays to sea (Kynard 1997). In the southern portions of their range, they concentrate in estuaries and are anadromous, but in the more northern regions they concentrate in fresh water and are amphidromous (Kieffer and Kynard 1993). In the Saint John River, adults are found both in fresh water and in areas under tidal influence (Dadswell 1979, 1984; Dadswell et al. 1984). Shortnose Sturgeon from the Saint John River have been caught along the coast, but this is rare (Dadswell et al. 1984, 2014). They are generally restricted to brackish and freshwater sections of their natal rivers. Tagging by Dadswell (1979) and sonic tracking (Litvak unpubl. data) research on the lower Saint John River population below Mactaquac Dam suggests that fish remain in their natal river and estuary. This is similar to results of studies on US populations (Buckley and Kynard 1985; Hall et al. 1991; Kieffer and Kynard 1993; O’Herron et al. 1993; Kynard 1997).

Overwintering habitat was thought to occur in either the lower reaches of the Saint John River in deep, brackish (~10 ppt) water, or further upriver for fish destined to spawn that spring (Dadswell 1979) (multi-stage spawning migration--see below). Even sites further upriver are under tidal influence, but salinity is low (~10 ppm). Kynard (1997) suggested that Shortnose Sturgeon adults in reproductive condition are widely separated from those adults that will not spawn the following spring. Litvak (unpubl. data), however, used sonic tracking of tagged fish to show that many of the fish that overwinter in the lower reaches of the Saint John River still undergo a spawning migration in the spring.

One confirmed overwintering site for the Saint John River population is at the junction of the Hammond and Kennebecasis rivers (tributaries of the lower Saint John River), which has been used consistently since it was discovered in 2005 (Li et al. 2007; Usvyatsov et al. 2012a). An underwater videocamera system combined with Kriging (a spatial statistical approach) was used to confirm, count and map the distribution of Shortnose Sturgeon at this site (Li et al. 2007; Usvyatsov et al. 2012a). This site was not one of the more saline habitats used by wintering adults reported in the 1970s (Dadswell 1979) and is about 2 ha in size, 3-6 m deep, 0 ppt salinity, with high water velocities, and sandy substrates. No fish tagged in this region have gone to other potential overwintering areas identified by Dadswell (1979). Usvyatsov (pers. comm. 2013) ultrasonically tagged Shortnose Sturgeon further upriver during the winter of 2011 and tracked fish to an area in the Saint John River near Gagetown 5 km upstream of an overwintering site identified by Dadswell (1979).

Spawning is thought to occur in areas with high water velocity (also see Reproduction section below). Water velocity at spawning sites in the US populations ranged between 0.4 and 0.7 m/s, and were generally over gravel and/or boulder substrate and at water temperature that ranged between 8oC and 13oC (Buckley and Kynard 1985; Kieffer and Kynard 1996; Kynard 1997; National Marine Fisheries Service 1998; Shortnose Sturgeon Status Review Team 2010). Shortnose Sturgeon tagged in the Kennebecasis River were found to migrate upstream and spawn in the spring below the Mactaquac Dam at RKM 138; the only known spawning site of the Shortnose Sturgeon population in the Saint John River (COSEWIC 2005; Litvak unpubl. data). The importance of this area as a spawning site was confirmed by Usvyatsov et al. (2012b, 2013a), who caught thousands of larvae using D-frame nets set across the river at 12.5 and 17 km downstream of the dam during 2008-2011. The water velocity at the upstream transect ranged between 0.7 and 2.6 m/s. The specific area(s) in which the Shortnose Sturgeon spawn within this reach below the dam has not yet been identified and, therefore, the river velocities during reproduction have not been characterized for the Saint John River Shortnose Sturgeon.

Dadswell (1979) reported that the youngest juvenile fish caught on the Saint John River other than larvae was 2 years old. With the exception of larvae, there are no recorded captures of fish aged 1 year or younger and therefore no information on habitat use by post-larval juvenile fish (i.e., under about 45 cm fork length) in the Saint John River. Dadswell (1979) found that older juveniles were distributed in the riverine habitat from Oak Point (RKM 35) to Fredericton (RKM 120), but were concentrated between Evandale (RKM 45) and Oromocto (RKM 90). Mean size of juveniles was smaller in the upper reaches compared with downriver and most fish were associated with sand, mud, and clay substrates and higher salinities with sand and/or mud mixture (Dadswell 1979; Dadswell et al. 1984). Bain (1997) suggested that juveniles reside upstream of the salt-water wedge in the Hudson River, NY. Crossman and Litvak (unpubl. data) tracked six juvenile Shortnose Sturgeon throughout the year and found that juvenile Shortnose Sturgeon spent time at the salt/fresh water interface (see also Bain 1997).

Habitat Trends

Historically, urban development, forestry, and agricultural and industrial effluents contribute to siltation and pollutant loads in the Saint John River (see Threats and Limiting Factors). A late summer die-off of sturgeon and other species was observed in 1974 in a eutrophic area of the estuary with a high density of vegetation (Dadswell et al. 1984). It was assumed that this mortality was caused by oxygen depletion due to vegetative blooms resulting from elevated nutrient levels (Dadswell et al.1984). While the Saint John River water quality has improved somewhat since serious problems were noted in the 1970-80s, especially downstream of Fredericton, it is still rated only as “fair” or “usually protected but occasionally threatened or impaired; conditions sometimes depart from natural or desirable levels” (e.g., see Environmental Reporting Series 2007, New Brunswick Watersheds, Saint John River; Kidd et al. 2011). Also, there are currently over 200 dams or water control structures, more than 100 sources of municipal wastewater and ~70 more non-municipal effluent sources (Kidd et al. 2011). The completion of the Mactaquac Dam in 1968 cut off the upper portions of the Saint John River, which eliminated the possibility of even transient use of that area by Shortnose Sturgeon. New Brunswick Power is embarking on a study to determine the future of the Mactaquac Dam with a decision to be made by 2016 (NB Power 2014). The fate of this dam, to be either decommissioned or refurbished, and the potential impacts as a result of either of these choices will be important to the status of the Shortnose Sturgeon population in the Saint John River. In addition, and for unknown reasons, there appears to have been an increase in the frequency and magnitude of large floods in the Lower Reach of the Saint John River since about 1968 (Cunjak et al. 2011), but the impacts of changes in flood behaviour in this area on Shortnose Sturgeon are unknown.

Biology

Life Cycle and Growth

The oldest Shortnose Sturgeon caught on the Saint John River was a female estimated to be 67 years old (Dadswell 1979). Sturgeon can be aged by counting the alternating translucent (winter) and opaque (summer) annuli of a cross section through the “bony” first pectoral fin ray (Currier 1951; Collins and Smith 1996). The validity of this technique has come into question for Lake Sturgeon (Acipenser fulvescens), however, because the use of pectoral spines generally underestimates age as fish approach maturity (Bruch et al. 2009). The best way to accurately estimate the age of sturgeon is through destructive sampling and examining sagittal otoliths (Bruch et al. 2009).

The largest recorded specimen caught on the Saint John River was a female weighing 23.6 kg with a fork length (FL) of 122 cm (Dadswell 1979). Subsequently, a fish of 124.6 cm FL has been captured (Litvak, unpubl. data). Litvak (unpubl. data) reported a size range of between 50 and about 125 cm FL for fish caught in the Saint John River between 1998 and 2002 (Figure 5). The length-weight relationship for Saint John River Shortnose Sturgeon has remained stable over 25 years and the relationships between weight (W) and FL are: Log­10 W = 3.21 (Log­10 FL) – 5.45 (n=2890, p<0.001, r2=0.99) for the 1970s time period (Dadswell 1979), and Log110 W = 3.11 (Log10 FL) – 5.36 (n = 860, p<0.001, r2=0.87) for the 1998-2001 time period (Litvak, unpubl. data, Appendix 3). Both these relationships suggest an allometric relationship between weight and length; i.e., longer fish are relatively heavier than shorter fish.

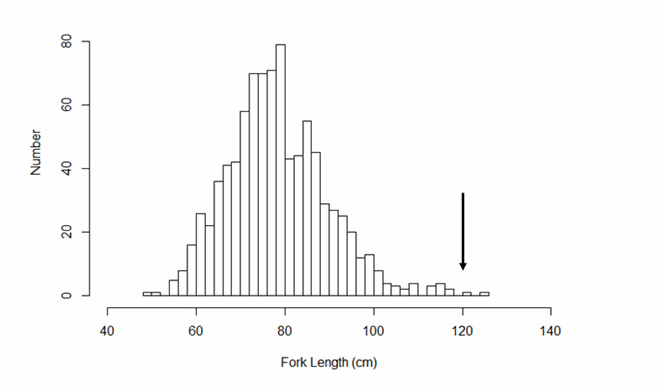

Figure 5. Fork length frequency distribution of Shortnose Sturgeon caught in the Saint John River using a 12.5 cm stretch gill net, 1998-2002. The current size limit for retention in the recreational fishery is any fish that is at least 120 cm fork length (arrowhead).
Chart of fork-length frequency distribution for Shortnose Sturgeon caught in the Saint John River
Long description for Figure 5

Chart of fork-length frequency distribution for Shortnose Sturgeon caught in the Saint John River using a 12.5 cm stretch gill net, between 1998 and 2002. Fork length ranges from 50 cm to about 125 cm.

Dadswell (1979) found no difference in weight between males and females at similar sizes. Litvak (unpubl. data), however, sexed 40 adults; 14 females and 26 males of known weight and length. The weight-length relationship (Appendix 3) of the Shortnose Sturgeon population suggests that males are significantly lighter than females at an equivalent length (t-test of residuals, df=38; p<0.05, Litvak, unpubl. data). Although no external sexually dimorphic characters have been discovered to date, the Shortnose Sturgeon is sexually dimorphic in terms of weight.

Dadswell (1979) estimated growth rates from 106 tagged and recaptured fish between 1973 and 1978. During this period Shortnose Sturgeon were found to gain 490 grams per year (1.32 g/day). Shortnose Sturgeon in the Saint John River (1998-2002) had an average annual mean weight gain of 540 g (gaining 1.48 g per day +1.2 SE) or a specific growth rate (following Ricker 1975) of 0.017% ± 0.067 per day (COSEWIC 2005). Von Bertalanffy growth curves for weight were determined for females and males of the Saint John population to be Wt(female)=24.8(1-e-0.042(t-0.8))3 and Wt(males)=13.9(1-e-0.063(t-.51))3, respectively (Dadswell 1979). Corresponding von Bertalanffy L∞ was estimated to be 127.0 cm for females and 108.7 cm for males (Dadswell 1979).

Reproduction

Age and size at maturity

Dadswell (1979) reported that Shortnose Sturgeon matured at between 50 and 80 cm FL. Fifty percent of male and female Shortnose Sturgeon reach maturity at ages of 12.4 and 17.2 years old, respectively (Dadswell 1979). The generation time was estimated by calculating the average age of mature fish in the 1975 sample of Dadswell (1979) and was 20.1 years (N, adjusted for effort gillnet selectivity, = 10,008, range of ages = 14 - 62 years of age). Males first matured at about 12 years and the oldest male found was 32 years of age. Females first matured at about 18 years and the oldest female sampled was 67 years of age (Dadswell 1979).

Sexual Differentiation

Anatomical differentiation of Shortnose Sturgeon gonads in Saint John River fish occurs by 6 months of age (Flynn and Benfey 2007). The sex determining mechanism is still unknown, but based on gynogenetic studies it appears that females are not the homogametic sex (Flynn et al. 2006).

Eggs

TheShortnose Sturgeon is a highly fecund, iteroparous (spawning more than once in its lifetime) fish, producing many demersal and adhesive eggs (27,000-208,000; Dadswell 1979). Egg production is directly related to female size; each female on average produces 11,600 eggs per kg of fish (Dadswell 1979). Eggs are black to brown and are approximately 3.5 mm in diameter at release and expand to 4 mm after fertilization and adhesion to the substrate (Kynard 1997). There are no published accounts of spawning behaviour in captivity or in the wild.

Reproductive migration

Reproductive adults in the Saint John River, like other Shortnose Sturgeon populations, undergo a spawning migration in the spring. These spawning migrations occur when the river temperature reaches 8-9<sup>o</sup>C. Dadswell (1979) originally suggested that Shortnose Sturgeon spawned between Oak Point and Fredericton in the Saint John River and in the Kennebecasis River. This was given credence by the capture of three larvae at the Oromocto shoals at RKM 105 (Taubert and Dadswell 1980). No eggs and larvae, however, have been caught in the Kennebecasis River. Dadswell (1984) later suggested that another spawning site occurred between Fredericton and the Mactaquac Dam. Kynard (1997) predicted that they would spawn at or near the Mactaquac Dam because almost every other Shortnose Sturgeon population that occurs on large dammed rivers spawn at the first river blockage. Sonically tagged Shortnose Sturgeon have been tracked to just below the Mactaquac Dam (RKM 138; Litvak unpubl. data) as Kynard (1997) hypothesized. These fish were tagged the previous fall, overwintered in the Kennebecasis River that is in the lower reaches of the Saint John River, and travelled rapidly upstream during the spring.

From 1998-2002, 14 larvae were caught using a towed and weighted bongo net 2-4 km below the dam. In 2003, using D-frame drift nets, hundreds of eggs and larvae were caught all within 5 km of the dam (Litvak, unpubl. data). Usvyatsov et al. (2012b, 2013a) used the D-frame technique and set-out a series of transects along the river below the dam and caught 6,900 wild Shortnose Sturgeon larvae during 2008-2011. Dadswell (1979) suggested that Shortnose Sturgeon spawn from mid-May to mid-June. By contrast, Usvyatsov et al. (2012b) used Hardy and Litvak’s (2004) data on effect of temperature on growth of Shortnose Sturgeon to develop a Gompertz growth regression model to back-calculate predicted date of hatching. Date of reproduction was determined in similar fashion; they ran a series of experiments to examine the effect of temperature on development rate prior to hatching to develop a second Gompertz growth model to determine the date of reproduction in the wild. Larvae collected during 2008-2010 were used to estimate that the peak spawning period occurred in late April and early May.

Shortnose Sturgeon may vary in their pre-spawning migrations (Kieffer and Kynard 1993). Kieffer and Kynard (1993) suggested three patterns: 1) a short 1-step migration in the spring only a few weeks before spawning; 2) a long 1-step migration in the late winter/early spring before spawning; 3) a short 2-step migration composed of a longer fall migration putting the fish closer to the spawning habitat for overwintering and then a short migration as in 1). Dadswell (1984) suggested that Shortnose Sturgeon spawned in deep water channels and that they engage in the two-step spawning migration-strategy (i.e., 3 above). Litvak (unpubl. data) used sonic tags and has only observed fish employ strategy 2), but this may be a reflection of the segment of the Saint John River population that was studied.

Dadswell (1979) suggested that adults remain upriver until a 2-3<sup>o</sup>C decline in water temperature in the fall stimulates a downstream migration. Kynard (1997) indicated that adults disperse downriver after spawning. Litvak (unpubl. data) has found that sonically tagged spawning fish have used both strategies in the Saint John River.

Sex ratio and spawning periodicity

The sex ratio in the Saint John River is approximately 2:1, females to males (Dadswell 1979). The oldest male recorded from the Saint John River was 32 years old (Dadswell 1979). This finding, in conjunction with samples of juveniles indicating a 1:1 ratio of females to males, suggests that males do not live as long as females (Dadswell 1979). Males and females become reproductive later than those from southern populations (Dadswell 1984). Little information exists on spawning periodicity, but it has been suggested that females spawn less frequently, once every 3-5 years, than males, which spawn every other year (Dadswell 1979). In more southern populations, Shortnose Sturgeon of both sexes tend to spawn more often (Dasdwell et al. 1984). Males from the Saint John River held in captivity do produce semen annually (P. Soucy, pers. comm. 2003; B. Hogans, pers. comm. 2014).

Larval Behaviour

Usvyatsov et al. (2013a) deployed D-framed nets in transects across the river channel to examine larval distribution and timing of larval downstream migration. While they did not find a consistent pattern of larval distribution across the channel, they did find a consistent, significant preference for nighttime (dusk to dawn) over daytime dispersal. This is consistent with two lab studies on Shortnose Sturgeon larval dispersal (Richmond and Kynard 1995; Parker 2007) that suggested a preference for nighttime dispersal. Generalized linear models were used to examine the timing and extent of larval migration in the Saint John River during the study period. Logistic models incorporating water temperature and Mactaquac Dam discharge provided good predictions of the timing of larval migration. The probability of larval presence was highest when water temperature reached 15<sup>o</sup>C. At this temperature, larvae were predicted to disperse when nighttime total dam discharge was 20 x 106 to 30 x 106 m3. The extent of larval migration was described using negative binomial models, which suggested that dam discharge and transect location significantly influenced the number of drifting larvae.

Survival

Shortnose Sturgeon have a large body size, a tough leathery skin, and bony scutes that should lower mortality rates from predation during the juvenile and adult stages. Early life mortality in sturgeon is not well understood, yet is most likely the most important determinant of year-class strength. For instance, recent analysis suggests that for three species of North American sturgeon, Atlantic Sturgeon, White Sturgeon (A. transmontanus), and Shortnose Sturgeon, population dynamics are most sensitive to changes in survival during the first few years of life (Gross et al. 2002). Usvyatsov et al. (2013b) found a large portion of drifting larvae caught in the nets were damaged or dead. They examined the degree of decomposition to estimate the source of this mortality and found that 4-25% of the larvae caught in their D-frame nets were dead prior to capture. The cause(s) of this mortality are not known, but it may be caused by nightly reductions in flow at the Mactaquac Dam. Nighttime discharge in regulated rivers is often lowered due to reduced electricity demand. This may result in stranding of embryos and larvae, which can kill or damage them if they are in areas higher than the water level after flow reduction. Lower flow rates may also cause the larvae to drift at lower velocities, which may result in three outcomes: (1) larvae remain hidden in the substrate for a longer time, waiting for flood events that will increase nighttime discharge; (2) larvae may have to spend a longer time drifting in order to reach their nursery grounds (constant drifting distance); and/or (3) larvae may settle closer to the dam than they would have under natural conditions (constant drifting time). The three outcomes may be deleterious due to starvation, increased predation risk, and settling in a suboptimal habitat, respectively (Usvyatsov et al.2013a).

Hardy (2000) examined growth and starvation resistance of larval Shortnose Sturgeon in response to delayed feeding. He found starvation affected growth and survival, yet despite the degree of starvation, larvae were able to resume growth and experience high survivorship following feeding. Specific growth rates (dry weights) directly following feeding were highest among the groups of fish that were denied food for the longest time periods. This suggests that Shortnose Sturgeon possess a compensatory mechanism in response to starvation. A point-of-no-return (i.e., when starved fish could no longer resume growth) of 56% weight loss, however, was reached 41 d post-fertilization, which is long compared to many other fish species with r-selected life-history patterns. This work suggests that starvation, depending on food availability, may not be a major determinant of early life history survival, suggesting that future work should focus on mortality from predation. Low survival of larval sturgeon may be the major factor affecting long-term health of populations and may represent recruitment bottlenecks (Gross et al. 2002; Smith et al. 2002).

Physiology and Adaptability

Temperature effects

Shortnose Sturgeon growth rates vary inversely with latitude; fish from northerly populations grow more slowly than fish from southern populations (National Marine Fisheries Service 1998). This has been related to higher water temperatures and a longer growing season in southern environments rather than a genetic attribute of specific populations (Dadswell et al. 1984). Hardy and Litvak (2004) reared Shortnose and Atlantic sturgeon at different water temperatures (13, 15, 18, 21oC) after hatching and measured yolk utilization rate and efficiency, maximum standard length, survival and development of the escape response (a characteristic swimming behaviour in response to being attacked by predators). Newly hatched Atlantic Sturgeon were smaller in size, more efficient at utilizing yolk (incorporating yolk to body tissue) and reached developmental stages sooner than Shortnose Sturgeon reared at the same temperatures (13 and 15oC). Within each species, decreasing temperature delayed yolk absorption, escape response initiation, time to reach maximum size, and time to 100% mortality. Yolk utilization efficiencies and the size of larvae, however, were independent of rearing temperature for both species. These results suggest that even though an increase in temperature drives metabolic processes and speeds up development, these two species are still efficient at transferring yolk energy to body tissues. The lower efficiencies experienced by larval Shortnose Sturgeon may reflect differences in yolk quality between the two species or the Atlantic Sturgeon’s innate higher conversion efficiencies.

Salinity tolerance

Embryos and larvae of the Shortnose Sturgeon lack tolerance to salinity, but tolerance improves with age (Jenkins et al. 1993). Under estuarine-like salinity conditions (< 15 ppt), 22 day old Shortnose Sturgeon experienced 90% mortality at 11 ppt, but 39 day old fish experienced 100% survival after 96 hr at 7 ppt (Jenkins et al. 1993). Fish as old as 330 days experienced 100% mortality at 30 ppt, but survived well at 20-25 ppt (Jenkins et al. 1993). Jarvis et al. (2001) examined the effect of salinity on growth of Shortnose Sturgeon produced from Saint John River broodstock and grown in culture. They raised juveniles (mean weight 273 g) at four salinities (0, 5, 10, and 20 ppt) for 10 weeks at 18oC. Weight gain and feed conversion rate decreased with increasing salinity. Fish reared at 0 ppt salinity showed significantly more weight gain and a higher feed conversion rate than the fish raised at all other salinities. Fish reared at 20 ppt exhibited the poorest growth. Shortnose Sturgeon in the Saint John River, however, become more tolerant of salinity as they age and do occur in estuarine regions of the Saint John River (Dadswell 1979). Ziegeweid et al. (2008) confirmed Dadswell’s (1979) observation because they found that there was an interaction between temperature and salinity during Shortnose Sturgeon growth experiments. Survival of juveniles decreased with increasing temperature and salinity, but tolerance of these factors increased with body size (Ziegeweid et al. 2008). Similarly, Penny and Kieffer (2014) examined oxygen consumption and haematology of juvenile (200-300 g wet weight) Saint John River Shortnose Sturgeon during an acute 24 hour saltwater challenge. They found that all fish survived in the brackish water and full seawater treatments, but also that cortisol levels in fish in the full strength seawater treatment increased significantly as did plasma protein levels. They suggested that juvenile Shortnose Sturgeon in the Saint John can withstand changes in salinity that would be associated with the extreme tides in the estuary but that they are not ideally suited to inhabit saline environments indefinitely.

Exercise physiology

Kieffer et al. (2001) examined the physiological responses to exercise of Atlantic Sturgeon and Shortnose Sturgeon. They measured the rates of oxygen consumption and ammonia excretion in both species and a variety of physiological parameters in both muscle (e.g., lactate, glycogen, pyruvate, glucose and phosphocreatine concentrations) and blood (e.g., osmolality and lactate concentration) in juvenile Shortnose Sturgeon following 5 min of exhaustive exercise. In both species, oxygen consumption and ammonia excretion rates increased approximately twofold following exhaustive exercise. Post-exercise oxygen consumption rates decreased to control levels within 30 min in both sturgeon species, but post-exercise ammonia excretion rates remained high in Atlantic Sturgeon throughout the 4 h experiment. Resting muscle energy metabolite levels in Shortnose Sturgeon were similar to those of other fish species, but the levels decreased only slightly following the exercise period and recovery occurred within an hour. Under resting conditions, muscle lactate levels were low (<1 μmol g-1) but they increased (to approximately 6 μmol g-1) after exercise, returning to control levels within 6 h. Unlike similarly stressed teleost fishes, such as the Rainbow Trout (Oncorhynchus mykiss), plasma lactate levels did not increase substantially and returned to resting levels within 2 hours. Plasma osmolality was not significantly affected by exercise in Shortnose Sturgeon. Taken together, these results suggest that Shortnose and Atlantic sturgeon do not exhibit the physiological responses to exhaustive exercise typical of other fish species. They may possess behavioural or endocrinological mechanisms that differ from those of other fishes and that lead to a reduced ability to respond physiologically to exhaustive exercise.

In terms of swimming capability, Shortnose Sturgeon are considered to be relatively poor swimmers relative to many teleosts (Deslauriers and Kieffer 2011). They do, however, compensate by holding station in close contact with the substrate at high water flow levels (Adams et al. 1999, 2003). Deslauriers and Kieffer (2012) examined the effects of temperature on young of the year Saint John Shortnose Sturgeon swimming capacity and endurance. They found that temperature (5-25oC treatment groups) did affect swimming capacity (Ucrit), but did not have an effect on swimming endurance.

Oxygen tolerance

Collins et al. (2000) suggested that poor water quality may affect production of Shortnose Sturgeon juveniles and that low oxygen levels in juvenile feeding areas, in particular, may become a recruitment bottleneck. Secor and Nicklitschek (2001) suggested that absence or reduced populations of both Shortnose Sturgeon and Atlantic Sturgeon were a result of low oxygen levels. They also hypothesized that the apparent recovery of Shortnose Sturgeon in the Hudson River was due to a return to normal oxygen levels. Baker et al. (2005) examined the response of juvenile Saint John Shortnose Sturgeon to acute hypoxic conditions. They found that Shortnose Sturgeon were able to offset acute environmental hypoxia to some extent through hyperventilation.

Dispersal and Migration

Early life history dispersal

Yolk sac larvae of the Shortnose Sturgeon are photonegative and seek cover (Kynard and Horgan 2002). Shortnose Sturgeon from the Hudson and Connecticut rivers migrated over a three-day period (Kynard and Horgan 2002) after yolk-sac absorption. Kynard and Horgan (2002) suggested that Shortnose Sturgeon may engage in a two-step migration during the early life history stage: 1) a brief active/passive larval movement, and 2) an active early juvenile downstream migration to nursery areas. Shortnose Sturgeon larvae from the Saint John River appear to engage in an active/passive migration during their early life history stages (Usvyatsov et al. 2012b, 2013a). They drift mainly at night and unlike that reported by Kynard and Horgan (2002) will do so during the yolk-sac stages.

Juvenile dispersal

Juvenile sturgeon usually move upstream during the summer months and downstream in the fall and winter (Dadswell et al. 1984; Hall et al. 1991). Ultrasonically-tagged juvenile Shortnose Sturgeon (<56 cm) engaged in summer migrations in response to changing river temperatures in the Savannah River (Collins et al. 2000). They moved upriver when temperatures exceeded 22oC and moved downriver into the Savannah Harbour when temperatures were below this threshold. Collins et al. (2000) did not observe any diel migration of juvenile Shortnose Sturgeon. Preliminary work on the Saint John River population also found little difference in diel activity; juveniles did not occur in shallow areas of the reaches in which they were observed (Crossman and Litvak unpubl. data).

Adult movements based on genetic approaches

Dadswell et al. (1984) and Kynard (1997) both suggested that some adults move out of their natal rivers and that this may facilitate gene flow between populations. Although there was a higher probability of emigration in the northern populations, gene flow was viewed as low compared to other anadromous species and it is generally considered that all localities should be managed as discrete populations (Grunwald et al. 2002; Quattro et al. 2002). This was recently confirmed for the Saint John River population (Wirgin et al. 2010; Shortnose Sturgeon Status Research Team 2010--see also Population Structure and Variability).

Diet

In general, sturgeons are bottom, suctorial feeders. Shortnose Sturgeon juveniles feed mainly on crustaceans and insects and the adults in the lower Saint John estuary eat mainly molluscs, the Soft Shell Clam, Mya arenearia,in particular(Dadswell 1979; Pottle and Dadswell 1979; Dadswell et al. 1984). According to Dadswell (1979), foraging decreased substantially once water temperatures fell below 10◦C, and in the freshwater part of the lower Saint John River no foraging occurred throughout the winter, but finer-scale spatial and seasonal changes in diet composition were not studied. Usvyatsov et al. (2012c) used gastric flushing and sampled more fish from more areas than had been done previously and found that Shortnose Sturgeon foraged heavily into late November at temperatures between 8-10oC. At freshwater sites, Usvyatsov et al. (2012c) found much higher occurrences of Amphipoda, Ephemeroptera, Trichoptera, and Diptera in the diet than has been described previously for sturgeon from the Saint John River and in South Carolina (Dadswell et al. 1984). In a saline environment, Dadswell et al. (1984) reported bivalves to be the main prey items, but also high occurrences of Amphipoda, Isopoda, and Diptera. The differences in Shortnose Sturgeon gut contents between the Usvyatsov et al. (2012c) study and previous reports of the Saint John River and other rivers may be due to differences in composition of the benthos or differences in study methods. The gut contents of sturgeon captured in Long Reach and the Kennebecasis River sites in the summer and late fall contained both groups of benthos, which suggests that the fish moved between the deep, saltwater areas and shallower, freshwater areas. In contrast, in early fall, fish contained fewer bivalves and more Chironomidae and Isopoda, which possibly indicates a higher use of shallow areas.

Interspecific Interactions

There is potential for competition for food between sympatric Shortnose Sturgeon and Atlantic Sturgeon, particularly during the juvenile stages (Bain 1997). Analysis of gut contents of juvenile Shortnose Sturgeon and Atlantic Sturgeon captured in the Saint John River system by Pottle and Dadswell (1979) revealed that similar organisms were found in both species.

If competitive ability varies within and among fish species, growth may be affected as more aggressive individuals or species may acquire a larger portion of available food (Beacham 1993; Cutts et al. 1998; McCarthy 2001). Giberson (2004) found that when juvenile Shortnose Sturgeon and Atlantic Sturgeon are grown together, the foraging activity and growth rates of Shortnose Sturgeon were depressed. Giberson (2004) examined the importance of food availability on growth rate and change in the coefficient of variation in weight of juvenile Atlantic Sturgeon and Shortnose Sturgeon grown in mixed and single species groups. Atlantic Sturgeon held in mixed and single species treatment groups exhibited significantly higher specific growth rates (%/d) than did Shortnose Sturgeon at two food availability levels (3% body weight per day [BW/d]) or 1% BW/d). Shortnose Sturgeon held in mixed species treatment groups had significantly lower growth rates than those held in single species groups at both food levels. Atlantic Sturgeon growth rates were unaffected by the presence of Shortnose Sturgeon at both high and low food availability levels. These results suggest that Atlantic Sturgeon may be a superior competitor compared to Shortnose Sturgeon when either habitat or food is limited.

There are no records of Shortnose Sturgeon being preyed upon in the Saint John River. Yellow Perch (Perca flavescens), however, are potential predators of larvae (Dadswell 1984). Muskellunge (Esox masquinongy), a recent invader to the Saint John River system (Kidd et al. 2011), could eat juvenile Shortnose Sturgeon. Seals are present in the Saint John River and are potential predators of adults (Dadswell 1984).

Behaviour/adaptability

Although sturgeon species are derived from one of the most ancestral lineages within the ray-finned fishes (Bemis et al. 1997), they may have a more complex system of social behaviours and interactions than previously thought. The juvenile stage of the sturgeon life history is particularly important because survival at these stages directly affects the number of individuals that are recruited into the adult population (Gross et al. 2002; Smith et al. 2002). Giberson (2004) paired Atlantic Sturgeon and Shortnose Sturgeon in contest competition experiments. She found that Atlantic Sturgeon were the first to start foraging, and engaged in more foraging events. Even when paired with a larger Shortnose Sturgeon, Atlantic Sturgeon started foraging earlier and initiated more foraging events.

Shortnose Sturgeon appear to be social fish; they exhibit shoaling behaviour a few days after hatching (Litvak pers. obs.). This shoaling behaviour only exists when there is a flow of water; larvae form tight well-spaced schools to swim against the current. This schooling behaviour breaks down when there is no flow. Scuba-diving observations of adults in the wild suggest that they exhibit shoaling behaviour (L. Sabatis pers. comm. 2013). Shortnose Sturgeon have been observed to form tight and dense aggregations at the Saint John River overwintering site (Li et al. 2007; Usvyatsov et al. 2012a).

Dadswell (1979) observed that when groups of tagged fish were recaptured using a gill net they were often recaptured one or more years later with many of the same fish. He calculated that the probability of this event occurring at random was 1.88 x 10-24 (Dadswell 1979). These observations suggest that Shortnose Sturgeon may be social and potentially pair bond as adults (Dadswell 1979). If Shortnose Sturgeon and Atlantic Sturgeon partition available resources, it is likely based on species-specific preferences for different salinities (National Marine Fisheries Service 1998). Giberson and Litvak (unpubl. data), however, developed an angular flume to provide individual sturgeon with a choice of different flow rates. In all instances Shortnose Sturgeon chose to swim in higher water velocities than did the Atlantic Sturgeon, suggesting that differences in flow preference may also play a role in habitat partitioning.

Population Size

Sampling Effort, Methods and Abundance

Mark and recapture approaches:

There have been two mark and recapture population size estimates on the Saint John River, both below the Mactaquac Dam. Dadswell (1979) conducted his study during the period of 1973 – 1977 on the mainstem of the Saint John River below Oromocto, and in tributaries including Grand Lake, Washademoak Lake, Belleisle Bay, and the Kennebecasis River from Darlings Lake to the main stem of the Saint John River. He estimated population size to be approximately 18,000 adults (­+30% SE; 95% confidence intervals (Manly 1984) 7,200 – 28,880 adults) in the lower Saint John River. Litvak (unpubl. data) also conducted a mark-recapture population estimate between 1998 and 2004 focusing largely on the Kennebecasis River below Darlings Lake using a Jolly Seber approach (Krebs 1999) and estimated that there were 2,068 fish (95% CI: 801 to 11,277) in this tributary of the Saint John River. The wide confidence intervals of the population size estimate for the Kennebecasis River may be a function of immigration from and emigration to other tributaries of the Saint John River. While this approach is informative it probably does not provide a precise enough estimate to be useful in tracking population changes over time. Although the studies used similar approaches they are not comparable because they were not conducted on the same spatial scale.

Dadswell and Litvak (unpubl. data) compared catch-per-unit-effort (CPUE) data for fish caught in the Kennebecasis River using gill nets with mesh of similar size caught in the summer during each study. They found that there was no significant difference in CPUE (t-test, df = 46, p = 0.83) between the two studies in this region of the river over a 26 year period. Mean CPUE was 0.027 and 0.024 fish per metre of net per hour, for Dadwell’s (1979) and Litvak’s (unpubl. data) studies, respectively.

Video sampling approaches:

Shortnose Sturgeon aggregate in the winter and this provides an excellent opportunity to derive better estimates of their population size (Li et al. 2007). Li et al. (2007) used a sonic tracking technique to follow Shortnose Sturgeon to their overwintering ground in 2005. They drilled holes in the ice and used an underwater videocamera to determine the number of fish below each hole. This information was used to map the distribution and abundance of the fish at the overwintering site at the confluence of the Kennebecasis and Hammond rivers. They used both general linear models and ordinary Kriging to determine habitat type and population size, respectively. They estimated that there were 4,836 (95% CI = 4,701 – 4,971) adult Shortnose Sturgeon at this 2 ha site. The bottom at this location was a flat, sandy substrate. This population size was within the confidence intervals established with the tagging study of the Kennebecasis River described above, but with a very high level of precision, suggesting that this approach is better to assess changes in population size in Shortnose Sturgeon in the Saint John River.

Usvyatsov et al. (2012a) repeated this work to determine if there was consistent use of this site. They also added lasers to the underwater video approach to determine fish size and to provide a crude approximation of age class structure. They found that, like Li et al. (2007), there were high concentrations of Shortnose Sturgeon overwintering at this site, ranging from 3,852-5,222 in 2009 and 2011 (Table 2). The fork length ranged from 54 to 119 cm. The sizes of these fish suggest that they would range from 11 to 57 years of age (Usvyatsov et al. 2012a).

Table 2. Comparison of three semivariogram models (exponential, spherical and Gaussian), applied to 2009 and 2011 and only the exponential applied to the 2005 calculation of overwintering density data, showing model parameters (nugget, sill and range) and the resulting overall abundance (± standard error) (from Li et al. 2007 and Usvyatsov et al. 2012).
Model Year Minimized SS Nugget Sill Range Abundance SE
Exponential 2005 NA 0 0.2 10 4836 69
Exponential 2009 0.001 0.015 0.059 26.000 4085.3 50.5
Exponential; 2011 0.004 0.069 0.152 25.999 3852.1 92.9
Spherical 2009 0.001 0.017 0.048 45.416 4769.2 48.7
Spherical 2011 0.002 0.054 0.136 31.777 5163.8 90.8
Gaussian 2009 0.001 0.023 0.044 26.000 4450.3 48.1
Gaussian 2011 0.002 0.069 0.120 15.370 5222.4 90.3

Angling:

A mean number of 144 (SE = 7.8) fishers participated in the Kennebecasis River fishing derby tournament conducted annually since 1998. On average, they caught 0.36 (SE = 0.06) fish per angler per year over the 6 h tournament. The mean size of the fish caught by anglers was 76.7 cm FL (SE = 2.1, M. Litvak, unpubl. data).

Fluctuations and Trends

No direct comparisons can be made between the mark-recapture estimates of Dadswell (1979) and Litvak (unpubl. data) as they were on different spatial scales. The similar CPUE, the same weight-length relationships, and growth rates between the two studies suggest, however, that the Saint John River population has not changed appreciably over the 25 year period between these studies (approximately one generation). The number of Shortnose Sturgeon overwintering in the Kennebacasis River has also not varied much over the seven year study period (i.e., about 3,800 to 5,200 fish, 2005-2012). In contrast, representatives from the Oromocto First Nation’s fisheries technician team indicated, based on casual observations, that they have perceived a decrease in numbers of Shortnose Sturgeon over the past thirty years (L. Sabattis, H. Paul and B. Paul pers. comm. 2013). Further, Dadswell (1979) hypothesized that one-third of the Saint John River female population spawned each year and that there were 12,000 females producing on average 94,000 eggs each, which provides an estimated production of approximately 3.76 x 109 eggs per year. In contrast, Usvyatsov et al. (2013a) incorporated fieldwork and modelling to examine the timing and extent of Shortnose Sturgeon larval dispersal with the primary objective of estimating the abundance of migrating larvae in the Saint John River. They found that there were dramatically lower numbers of larvae produced in the Saint John River during the years 2008-2011 (21,000 to 245,000 per annum) than suggested by Dadswell (1979). Differences in inferred production levels may be related, at least in part, to method of capture, overestimation of the number of females or larvae, or to a decline in the number of females or their fecundity since 1979.

There is a fish lift at the Mactaquac Dam that has been in place since the dam’s completion in 1968. Shortnose Sturgeon have never been caught in this fish lift (R. Price, pers. comm. 2013) and the fish lift intake is only 6’ deep over a water depth of 40’ and may not be deep enough to capture Shortnose Sturgeon. No information is currently available for Shortnose Sturgeon potential presence or abundance above the Mactaquac Dam. Shortnose Sturgeon have, however, been observed as landlocked populations upstream of the Holyoke Dam (RKM 140) on the Connecticut River (Taubert 1980).

Stokesbury et al. (2014) calculated the Species Ability to Forestall Extinction (SAFE) Index to estimate the conservation status of Saint John River Shortnose Sturgeon. This index has been proposed as a heuristic measure of the “distance” that a species is from extinction based on population size estimates and assuming a minimum viable population size of 5,000 adults (Stokesbury et al. 2014). Essentially, the SAFE index represents the difference between the estimated adult population size (N) and the minimum viable population size (MVP); a SAFE index value of 0 represents the transition between a threatened status (values less than 0) and not-threatened status sensu IUCN (values greater than 0; Clements et al. 2011). Stokesbury et al. (2014) calculated a SAFE index of about 0.55 for the Saint John River Shortnose Sturgeon, which was lower than that estimated for the Hudson River (1.0), but higher than estimates for two rivers in Georgia and one in South Carolina (~ -0.4 to -1.2). These differences in the SAFE indices were associated with very low estimates of adult population sizes in the latter three populations in the threatened zone (range from 290 – 1,500) and the very large estimated population size in the Hudson River (57,000, Stokesbury et al. 2014). Consequently, the SAFE value calculated for the Saint John River Shortnose Sturgeon (0.55) could be interpreted to suggest that the population surpasses a quantitative threshold for being threatened (as Stokesbury et al. (2014) did for the SAFE value of 1.29 for the entire Atlantic basin population). It should be noted, however, that the SAFE index for the Saint John River population used only the mean estimated adult population size (18,000) generated back in 1979 (Dadswell 1979). Using the lower 95% confidence interval (7,200 – see above) would generate a SAFE index (= log10(N) – log10(MVP), Clements et al. 2011) of only 0.16. Using the upper 95% confidence interval (28,880) yields a SAFE index estimate of 0.76. In addition, the SAFE approach used a single generic minimum viable population size (5,000) that was largely based on estimates for non-fish taxa (only 8 of 212 estimates of MVP were for fishes). In fact, MVP estimates for fishes are relatively scarce, but those that are available all exceeded 200,000 (see Traill et al. 2007 and also Flather et al. 2011). Using the lower 95% confidence interval for N (7,200) and increasing the MVP only slightly to 8,000 adults would result in a SAFE index of -0.05 below the threshold for “threatened”. Clearly, while the SAFE approach is an interesting one, it requires much more precise parameterization (i.e., both for N and MVP) and some estimate of variance before it can be applied to quantitative assessment criteria for the Shortnose Sturgeon.

Rescue Effect

Telemetry research on rivers of Maine shows that there is more movement of Shortnose Sturgeon among rivers than previously thought (Fernandes et al. 2010; Zydlewski et al. 2011; Dionne et al. 2013). Recent work by Wirgin et al. (2010) and the Shortnose Sturgeon Status Research Team (2010) suggests that although there is more mixing between populations among the 19 river segments than suggested by the National Marine Fisheries Service (1998), the Saint John population was the most genetically distinct system among the populations analyzed. Thus, the probability of rescue of the Saint John population of Shortnose Sturgeon from the Gulf of Maine population complex should the Saint John River population collapse is low to unlikely as the number of migrants calculated from genetic work was fewer than 2.5 per generation (i.e., << one fish per year, Wirgin et al. 2010).

Threats and Limiting Factors

The Saint John River population of Shortnose Sturgeon is the most northerly distributed population of the species, which probably places natural limits on productivity of the population given that the species, like the vast majority of fishes, are ectotherms. Indeed, the relative carrying capacities of various river systems was estimated by Stokesbury et al. (2014). Here, the estimated carrying capacity of the Saint John River population was estimated as 0.51 adults/hectare, lower than that estimated for two more southern rivers: the Delaware River (0.64) and the Hudson River (1.29).

There are no well-documented, imminent threats to the Shortnose Sturgeon, but several potential threats exist. Fish are targeted in a recreational fishery, but only individuals over 120 cm total length can be kept when caught by anglers, which protects most of the population (Section 97 in the Maritime Provinces Fishery Regulations under the Fisheries Act, see also Figure 5). Size distribution data recorded as fork length, which is a smaller measurement than total length such that a 120 cm fork length fish will have a longer total length by ~ 10% of FL (see Figure 1), suggest that while most fish would be protected by this size regulation, some fish could clearly be retained (Figure 5, DFO 2014b). Further, there may be some hooking and handling mortality associated with catch-and-release angling (cf. COSEWIC 2013). By-catch from commercial and recreational fisheries exists throughout the east coast (Dadswell 1979; Collins et al.1996; Kynard 1997; Bahn et al. 2012). For instance, Dadswell (1979) reported a total of 121 tagged fish returned by commercial fishers in the Saint John River between 1973 and 1978. Bahn et al. (2012) reported by-catches of 71, 53, and 486 Shortnose Sturgeon in American Shad (A. sapidissima) fisheries in the Altamaha River, Georgia, in 2007-2009. The total population size of Altamaha River Shortnose Sturgeon was estimated as ~1,800 adults and mortality from by-catch in nets was estimated as 8% (although post-release mortality was not monitored). Although there is no directed commercial harvest of Shortnose Sturgeon, and the extent of illegal fishing and markets is unknown, it is thought to be significant in US rivers. There is, however, no evidence that illegal fishing occurs or is a significant issue for the Saint John River population (Kynard 1997; DFO 2014b).

In the Saint John River, Shortnose Sturgeon are caught incidentally by Gaspereau (Alosa pseudoharengus), American Shad, American Eel (Anguilla rostrata), and Atlantic Sturgeon commercial fishers. Fish are most often released unharmed, but they are vulnerable to capture during their spawning migration, which is coincident with the Gaspereau runs. Capture and release during spawning migrations may interrupt spawning and lead to abandonment of migrations (National Marine Fisheries Service 1998).

Shortnose Sturgeon are vulnerable to chemical contaminants. Chambers et al. (2012) tested the sensitivities of Shortnose and Atlantic sturgeon during early life stages to doses of polychlorinated biphenyl 126 (PCB126) and 2,3,7,8-tetrachlorodibenzo-p-dioxin (TCDD). They found that both species were among the most sensitive fishes, which may make Shortnose Sturgeon especially vulnerable because of their long life span as benthic predators. Hence, there is great potential for bioaccumulation of heavy metals and other toxicants (Dadswell 1979). Kocan et al. (1996) studied the effects of coal tar leachate (PAHs) on embryo and larval development and such exposure resulted in extremely high mortality within 18 days. Although there are exceptions, especially near the city of Saint John and areas upstream of the Mactaquac Dam (Edmundston to Grand Falls), water quality (defined by various measures of metals, pH, dissolved oxygen, bacterial counts) has improved since concerns were first raised in the 1950s-60s and appears to be fair to good for aquatic life in much of the Saint John River (Environmental Reporting Series 2007; Curry et al. 2011).

The damming of major rivers in North America has unquestionably had negative impacts on most if not all migratory species (e.g., Larinier 2001; Pringle 2003; COSEWIC 2013). Hydroelectric dams may reduce Shortnose Sturgeon habitat by altering river flows and/or temperature required for spawning and incubation of eggs (National Marine Fisheries Service 1998; Cunjak et al. 2011). In almost all of the Shortnose Sturgeon populations, dams block the passage of fish upriver and therefore confine spawning activities below this point (Kynard 1997). This leaves all of the early life stages vulnerable to changes in river conditions influenced by dam operations and consequent variation in flow regimes (Usvyatsov et al. 2013b). Research on at least some other species, such as salmonids (Bell et al. 2005; Korman and Campana 2009; Warren et al. 2009) and catostomids (Weyers et al. 2003; Peterson and Jennings 2007) demonstrated the potential for adverse effects of flow management patterns on the abundance, growth, and survival of age-0 fish. For instance, highly variable flows may reduce food abundance in the affected habitats (Korman and Campana 2009). In fact, recruitment failure associated with altered and variable flow regimes associated with hydroelectric developments is considered a key factor driving at risk status of the White Sturgeon in Canada (COSEWIC 2013). How, or if, the flow regime of the Mactaquac Dam influences survival or growth of Shortnose Sturgeon is, however, unknown.

There are a number of industrial activities on the Saint John River such as pulp mills, agriculture, and forestry. There is also one land-based sturgeon aquaculture facility on the Saint John River that grows Shortnose Sturgeon, Atlantic Sturgeon and their hybrids that could transfer disease to wild populations if effluent streams are not treated properly before release. Further, these operations rely on occasional capture of wild fish as broodstock. While there is potential for escapes from this facility, the risk is likely very low because the facility is land-based. The Shortnose Sturgeon may be particularly vulnerable to stochastic events (flooding, chemical spills) during time periods when they aggregate in large groups over relatively small areas (e.g., the one known overwintering site).

Muskellunge, a recent invader to the Saint John River system, is now regularly caught by anglers downstream of Fredericton (Kidd et al. 2011). Muskellunge are known to inhabit slow river stretches with submergent and emergent vegetation, which is similar habitat exploited by Shortnose Sturgeon (Scott and Crossman 1973). Muskellunge predation on adult Shortnose Sturgeon is highly unlikely given the latter’s size and protective armour, but juvenile Shortnose Sturgeon may be at risk of predation by Muskellunge.

Based on the IUCN threats assessment calculator (Appendix 4, IUCN 2015), the assigned cumulative threat status of the Shortnose Sturgeon was estimated to be “LOW” because of the considerable uncertainty of the extent and intensity of the numerous potential threats.

Number of Locations

The Saint John River is the only area in which the Shortnose Sturgeon occurs in Canada. Within this river system one spawning site, below the Mactaquac Dam, has been documented. Given that spawning areas involve aggregations of adults as well as newly spawned and tiny larvae, the one known spawning site likely represents the area where the species is most vulnerable. In addition, while other spawning areas may exist and the river has not been well-searched for other spawning sites, sturgeon as a whole tend to specialize on a relatively small number of spawning areas determined by specific flow and substrate conditions. For instance, the White Sturgeon comprises four designatable units within the Fraser River, British Columbia. Here, the total index of area of occupancy exceeds 10,000 km2 (compared to ~ 50 km2 for the Shortnose Sturgeon in the Saint John River) and only seven spawning sites (with up to 21 suspected) have been documented (COSEWIC 2013). Similarly, the Atlantic Sturgeon comprises two designatable units with a combined index of area of occupancy of about 700 km2. The number of spawning areas for the designatable unit most comparable to the Shortnose Sturgeon (the St. Lawrence populations with an index of area of occupancy of 104 km2) was considered to have three spawning areas (COSEWIC 2011; spawning areas in the other designatable unit were not estimated). Consequently, while the Shortnose Sturgeon may spawn in areas of the Saint John River other than below the Mactaquac Dam, the number of spawning areas is unlikely to be large. Accordingly, the number of locations, based on susceptibility to stochastic flooding and abrupt changes in water quality at or near the known spawning area is estimated to be one and almost surely five or fewer.

In terms of overwintering areas, Dadswell (1979) identified several overwintering sites in large deep lakes and deepwater areas of the lower Saint John River and an adjacent section of the Bay of Fundy (seven sites in total). One particularly well characterized site occurs at the confluence of the Hammond and Kennebecasis rivers, both tributaries of the lower Saint John River. There have been no confirmed re-detections of Shortnose Sturgeon at the other overwintering sites reported in Dadswell (1979) with the exception of low densities of fish aggregating at Gagetown, but overall search effort has been modest at best (DFO 2014a).If overwintering sites were used to define locations and given the robust population size estimates for some overwintering sites and the clear aggregations of fish in these areas, each is considered as a single location owing to the vulnerability of a large number of fish to habitat degradation or toxic spills that could occur over a small area for a total of no more than seven to ten locations (if defined based on overwintering sites). Overall, given that early reproductive stage Shortnose Sturgeon are likely to be the most vulnerable life history stage and the documented mortality of young sturgeon near the single, known spawning area, probably from flooding (see Survival), the number of locations is estimated to be one.

Protection, Status and Ranks

The Shortnose Sturgeon was assessed as a species of Special Concern in Canada in 1980 and was reassessed as such in 2005. The species was listed as Special Concern in Schedule 1 of Canada’s Species at Risk Act (SARA) in 2009 and NB’s SARA in 2013 (O.C. 2013-143). Fisheries and Oceans Canada (DFO) is currently finalizing a management plan for the species as required under Canada’s SARA (DFO, pers. comm. 2013). Additionally, no recreational fishing is allowed within a 10 km stretch downstream of the Mactaquac Dam, which should protect Shortnose Sturgeon during reproduction. Shortnose Sturgeon has been classified as Endangered by the Endangered Species Act in the United States since March 1967. The National Marine Fisheries Service generated a Final Recovery Plan for the US Shortnose Sturgeon in 1998. The Shortnose Sturgeon has been listed in Appendix I of the Convention on International Trade in Endangered Species of Wild Fauna and Flora (CITES) since 1975. Appendix I of CITES includes those species that are presently threatened with extinction and trade is only authorized in exceptional circumstances. Commercial trade is limited to captive-bred specimens from CITES-registered aquaculture facilities.

Non-Legal Status and Ranks

The Shortnose Sturgeon has had an IUCN Red Book Status since 1996 when it was assessed as Vulnerable because it: 1) has had a reduction in area of occupancy, extent of occurrence and/or quality of habitat; 2) is severely fragmented; 3) has had a continued decline in area, extent and/or quality of habitat and number of locations or subpopulations. Nature Conservancy Ranks (NatureServe 2015) are as follows:

Habitat Protection and Ownership

Shortnose Sturgeon are angled recreationally in the Saint John River and their population and habitat are, therefore, protected by the federal Fisheries Act (McLean, pers. comm. 2013).

Acknowledgements and Authorities Contacted

Participants of DFO’s Shortnose Sturgeon draft management plan workshop; DNR NB; Oromocto First Nation; Fishway Manager Mactaquac DFO; Rod Bradford (DFO); and Mark McLean (DFO).

Information Sources

Adams, S. R., J.J. Hoover, and K.J. Killgore, 1999: Swimming endurance of juvenile pallid sturgeon, Scaphirhynchus albus. Copeia 3: 802–807.

Adams, S. R.; G.L. Adams, and G.R. Parsons. 2003: Critical swimming speed and behavior of juvenile shovelnose sturgeon and pallid sturgeon. Transactions of the American Fisheries Society 132: 392–397.

Baker D.W. A.M. Wood, M.K. Litvak, and J.D. Kieffer 2005. Haematology of juvenile Atlantic and Shortnose sturgeons. Journal of Fish Biology. 66:208-221.

Bahn, R.A., J.E. Fleming, and D.L.Peterson. 2012. Bycatch of Shortnose Sturgeon in the commercial American shad fishery of the Altamaha River, Georgia. North American Journal of Fisheries Management 32: 557-562.

Bain, M.B. 1997. Atlantic and shortnose sturgeons of the Hudson River: Common and divergent life history attributes. Environmental Biology of Fishes. 48:347-358.

Beacham, T.D. 1993. Competition between juvenile pink (Oncorhynchus gorbuscha) and chum salmon (Oncorhynchus keta) and its effect on growth and survival. Canadian Journal of Zoology. 71: 1270-1274.

Bell, T., G. Kindschi, J. Bowker, and M. Bowman. 2005. Evaluation of calcein immersion and medicated feed to mark Snake River cutthroat trout Oncorhynchus clarki and shovelnose sturgeon Scaphirynchus platorynchus. 56th Annual Northwest Fish Culture Conference

Bemis, W.E., E.K. Findeis and L. Grande.1997. An overview of Acipenseriformes. Environmental Biology of Fishes 48: 25-71.

Beacham, T.D. 1993. Competition between juvenile pink (Oncorhynchus gorbuscha) and chum salmon (Oncorhynchus keta) and its effect on growth and survival. Canadian Journal of Zoology. 71: 1270-1274.

Bell, T., G. Kindschi, J. Bowker, and M. Bowman. 2005. Evaluation of calcein immersion and medicated feed to mark Snake River cutthroat trout Oncorhynchus clarki and shovelnose sturgeon Scaphirynchus platorynchus. 56th Annual Northwest Fish Culture Conference

Bemis, W.E., E.K. Findeis and L. Grande.1997. An overview of Acipenseriformes. Environmental Biology of Fishes 48: 25-71.

Birstein, V.J., 1993. Sturgeons and paddlefishes: threatened fishes in need of conservation. Conserv. Biol. 7: 773-787. Birstein, V.J., 1993. Sturgeons and paddlefishes: threatened fishes in need of conservation. Conservation Biology 7: 773-787.

Browne, R.M. 2004. Reproduction of the shortnose and Atlantic sturgeons in the Saint John River. M.Sc. Thesis, University of New Brunswick, 94 pp.

Bruch, R.M., S.E. Campana, S L. Davis-Foust, M.J. Hansen and J. Janssen. 2009. Lake sturgeon age validation using bomb radiocarbon and known-age fish. Transactions of the American Fisheries Society 138:361-372.

Buckley, J. and B. Kynard. 1981. Spawning and rearing of shortnose sturgeon from the Connecticut River. Progressive Fish Culturist 43:74-76.

Buckley J. and B. Kynard. 1985. Yearly movements of shortnose sturgeon in the Connecticut River. Transactions of the American Fisheries Society 114:813-820.

Chambers, R.C., D. D. Davis, E. A. Habeck, N. K. Roy and I. Wirgin. 2012. Toxic effects of PCB126 and TCDD on shortnose sturgeon and Atlantic sturgeon. Environmental Toxicology and Chemistry 31:2324-2337.

Clements, G. R., C. J. A. Bradshaw, B.W. Brook, and W. F. Laurance. 2011. The SAFE index: using a threshold population target to measure relative species threat. Frontiers in Ecology and Environment 9: 521–525.

Collins, M.R. and T.I.J. Smith. 1996. Sturgeon fin ray removal is nondeleterious North American Journal of Fisheries Management 16: 939-941.

Collins, M.R., S.G. Rogers, and T.I.J. Smith. 1996. Bycatch of sturgeons along the southern Atlantic coast of the USA. North American Journal of Fisheries Management 17:995-1000.

Collins, M.R., T.I.J. Smith., W.C. Post and O. Pashuk . 2000. Habitat Utilization and Biological Characteristics of Adult Atlantic sturgeon in two South Carolina rivers. Transactions of the American Fisheries Society 129: 982-988.

COSEWIC. 2004. Canadian species at risk, November 2004. Committee on the Status of Endangered Wildlife in Canada (COSEWIC), CWS, Ottawa. 58 pp.

COSEWIC 2005. COSEWIC assessment and update status report on the shortnose sturgeon Acipenser brevirostrum in Canada. Committee on the Status of Endangered Wildlife in Canada. Ottawa. vi + 27 pp.

COSEWIC 2011. COSEWIC assessment and update status report on the Atlantic Sturgeon (Acipenser oxyrinchus) in Canada. Committee on the Status of Endangered Wildlife in Canada. Ottawa. xiii + 50 pp.

COSEWIC 2013. COSEWIC assessment and update status report on the White Sturgeon (Acipenser transmontanus) in Canada. Committee on the Status of Endangered Wildlife in Canada. Ottawa. xxvii + 75 pp.

Cunjak, R.A., W.A. Munk, K. Haralampides and D.J. Baird. 2011. River Habitats. Pp. 57-75. in R. A. Curry and K. R. Minkittrick.(eds.) The Saint John River: A state of the Environment Report. Canadian River Institute, Fredericton, New Brunswick, Canada.

Currier, J.P. 1951. The use of pectoral fin rays to determine age of sturgeon and other species of fish. Canadian Fish Culturist 11:10-18.

Curry, A., K. Kidd, A. Valois, A. Mercer. 2011. Water Quality. Pp. 77-94. in Kidd, S.D., R. A. Curry and K. R. Minkittrick.(eds.) The Saint John River: A state of the Environment Report. Canadian River Institute, Fredericton, New Brunswick, Canada

Cutts, C.J., N.B. Metcalfe and, A.C. Taylor. 1998. Aggression and growth depression in juvenile Atlantic salmon: the consequences of individual variation in standard metabolic rate. Journal of Fish Biology 52:1026-1037.

Dadswell, M.J. 1979. Biology and population characteristics of the shortnose sturgeon, Acipenser brevirostrum, LeSueur 1818 (Osteichthyes: Acipenseridae), in the Saint John River Estuary, New Brunswick, Canada. Canadian Journal of Zoology 57: 2186-2210.

Dadswell. M.J. 1984. Status of the shortnose sturgeon, Acipenser brevirostrum, in Canada. Canadian Field-Naturalist 98:75-79.

Dadswell, M.J., B.D. Taubert, T.S. Squiers, D. Marchette and J. Buckley. 1984. Synopsis of biological data on shortnose sturgeon, Acipenser brevirostrum LeSueur 1818. National Oceanographic and Atmospheric Administration Technical Report National Marine Fisheries Service 14, Washington, D.C.

Dadswell, M.J., G. Nau, and M.J. Stokesbury 2013. First verified record of shortnose sturgeon, Acipenser brevirostrum LeSueur, 1818, in Minas Basin, Bay of Fundy, Nova Scotia, Canada. Nova Scotian Institute of Science 47(Part 2): 273-279.

Deslauriers, D. and J.D. Kieffer. 2011. The Influence of Flume Length and Group Size on Swimming Performance in Shortnose Sturgeon Acipenser brevirostrum. Journal of Fish Biology 79:1146-1155.

Deslaurier, D. and J.D. Kieffer. 2012. The Effects of Temperature on Swimming Performance of Juvenile Shortnose Sturgeon (Acipenser brevirostrum). Journal of Applied Ichthyology 28:176-181.

DFO. 2014a. Distinctiveness and Status of the Saint John River Population of Shortnose Sturgeon (Acipenser brevirostrum). DFO Canadian Science Advisory Secretariat Science Response 2014/043.

DFO 2014b. Fisheries and Oceans Canada. 2014. Management Plan for the Shortnose Sturgeon (Acipenser brevirostrum) in Canada [DRAFT]. Species at Risk Act Management Plan Series. Fisheries and Oceans Canada. Ottawa. vii + 47pp.'

Dionne, P.E., G. B. Zydlewski, M. T. Kinnison, J. Zydlewski and G. S. Wippelhauser 2013. Reconsidering residency: characterization and conservation implications of complex migratory patterns of shortnose sturgeon (Acipenser brevirostrum) Canadian Journal of Fisheries and Aquatic Sciences 70:19-127.

Environmental Reporting Series 2007, New Brunswick Watersheds, Saint John River.

Fernandes, S.J., G. B. Zydlewski, J. D. Zydlewski, G. S. Wippelhauser and M. T. Kinnison. 2010. Seasonal Distribution and Movements of Shortnose Sturgeon and Atlantic Sturgeon in the Penobscot River Estuary, Maine. Transactions of the American Fisheries Society 139:1436-1449.

Flather, C. H., G.D. Hayward, S.R. Beissinger, and P.A. Stephens. 2011. Minimum viable populations: is there a 'magic number' for conservation practitioners? Trends in Ecology and Evolution 26: 307-316.

Flynn, S.R., M. Matsuoka, M. Reith, D. J. Martin-Robichaud and T. J. Benfey. 2006. Gynogenesis and sex determination in shortnose sturgeon, Acipenser brevirostrum Lesuere Aquaculture 253:721-727.

Flynn, S R. and T. J. Benfey. 2007. Sex differentiation and aspects of gametogenesis in shortnose sturgeon Acipenser brevirostrum Lesueur Journal of Fish Biology 70: 1027-1044.

Giberson, A.V. 2004. Social behaviour, competition and interactions of juvenile shortnose sturgeon (Acipenser brevirostrum) and Atlantic sturgeon (A. oxyrhynchus). M.Sc. Thesis UNB. 78 pp.

Gorham S.W. and D.E. McAllister. 1974. The shortnose sturgeon, Acipenser brevirostrum, in the Saint John River, New Brunswick, Canada, a rare and possibly endangered species. Syllogeus 5:17-18.

Gross, M.R., J., Repka, C.T. Robertson, D.H. Secorand and W. Van Wrinkle. 2002. Sturgeon conservation: insights from elasticity analysis. American Fisheries Society Symposium 28: 13-30.

Grunwald, C.J., Stabile, J.R. Waldman, R. Gross, and I. Wirgin. 2002. Population Genetics of Shortnose Sturgeon Acipenser Brevirostrum Based on Mitochondrial DNA Control Region Sequences. Molecular Ecology 11: 1885-1898.

Hall, J.W., T.I.J. Smith, and S.D. Lamprecht. 1991. Movements and Habitats of Shortnose Sturgeon, Acipenser- Brevirostrum in the Savannah River. Copeia 1991:695-702.

Hardy, R. 2000. Factors influencing survival, development and behaviour of shortnose (Acipenser brevirostrum) and Atlantic sturgeon (A. oxyrhynchus). M.Sc. Thesis. 102 pp.

Hardy, R., and M.K. Litvak. 2004. The effect of temperature on the early development of larval shortnose and Atlantic sturgeon. Environmental Biology of Fishes 70:145-154.

IUCN 2015. Threats assessment classification scheme (version 3.2). International Union for the Conservation of Nature.

Jarvis, P.L., J.S. Ballantyne and W.E. Hogans. 2001. The Influence of Salinity on the Growth of Juvenile Shortnose Sturgeon. North American Journal of Aquaculture 63: 272-276.

Jenkins, W. W., T. Smith, L. Heyward and D.M. Knott. 1993. Tolerance of shortnose sturgeon, Acipenser brevirostrum, juveniles to different salinity and dissolved oxygen concentrations. Proceedings of the Southeast Associations of Fish and Wildlife Agencies 47:476–484.

Kieffer, M. and B. Kynard. 1993. Annual movements of shortnose and Atlantic sturgeon in the Merrimack River, Massachusetts. Transactions of the American Fisheries Society 122:1088-1103.

Kidd, S.D., R. A. Curry and K. R. Minkittrick (Editors). 2011. The Saint John River: A state of the Environment Report. Canadian River Institute, Fredericton, New Brunswick, Canada.

Kieffer, J.D., A.M. Wakefield, and M.K. Litvak. 2001. Juvenile Sturgeon Exhibit Reduced Physiological Responses to Exercise. Journal of Experimental Biology 204:4281-4289.

Kocan, R.M., M.B. Matta, and S.M. Salazar.1996. Toxicity of weathered coal tar for Shortnose Sturgeon (Acipenser brevirostrum) embryos and larvae. Archives of Environmental Contamination and Toxicology 31: 161-165.

Korman, J., and S. E. Campana. 2009. Effects of hydropeaking on nearshore habitat use and growth of age-0 rainbow trout in a large regulated river. Transactions of the American Fisheries Society 138:76-87.

Krebs, C.J. 1999. Ecological Methodology. Benjamin/Cummings, Menlo Park, California. 654 pp.

Kynard, B. 1997. Life history, latitudinal patterns, and status of the Shortnose Sturgeon, Acipenser brevirostrum. Environmental Biology of Fishes 48: 319-334.

Kynard, B. and M. Horgan. 2002. Ontogenetic behavior and migration of Atlantic sturgeon, Acipenser oxyrinchus oxyrinchus, and shortnose sturgeon, A. brevirostrum, with notes on social behavior. Environmental Biology of Fishes 63: 137-150.

Larinier, M. 2001. Environmental issues, dams and fish migration. FAO Fisheries Technical Paper 419: 45-89.

Li, X., M. K. Litvak and J. E. H. Clarke. 2007. Overwintering habitat use of Shortnose Sturgeon (Acipenser brevirostrum): defining critical habitat using a novel underwater video survey and modeling approach Canadian Journal of Fisheries and Aquatic Sciences 64:1248-1257.

Liem, A.H. and L.R. Day. 1959. Records of uncommon and unusual fishes from eastern Canadian waters. 1950-1958. Journal of the Fisheries Research Board of Canada 16:503-574.

Manly, B.F.J. Obtaining confidence limits on parameters of the Jolly-Seber Model for capture-recapture data. Biometrics 40:749-758.

McCarthy, I.D. 2001. Competitive ability is related to metabolic asymmetry in juvenile rainbow trout. Journal of Fish Biology 59:002-1014.

National Marine Fisheries Service. 1998. Final Recovery plan for the shortnose sturgeon (Acipenser brevirostrum). Prepared by the Shortnose Sturgeon Recovery Team for the National Marine Fisheries Service, Silver Spring Maryland.

NatureServe. 2013. NatureServe Explorer: An online encyclopedia of life [web application]. Version 3.1. NatureServe, Arlington, Virginia.

NB Power 2014. accessed January 2014.

O'Herron, J.C., K.W. Able, and R.W. Hastings. 1993. Movements of Shortnose Sturgeon (Acipenser brevirostrum) in the Delaware River. Estuaries 16:235-240.

Parker, E. 2007. Ontogeny and life history of shortnose sturgeon (Acipenser brevirostrum, Lesueur, 1818): Effects of latitudinal variation and water temperature. Doctoral Dissertaion Univ. Mass., Amherst. pp. 62.

Penny, F.M. and J.D. Kieffer. 2014. Oxygen consumption and haematology of juvenile shortnose sturgeon Acipenser brevirostrum during an acute 24 h saltwater challenge. Journal of Fish Biology 84:1117-1135.

Peterson, R. C., and C. A. Jennings. 2007. Effects of river discharge on abundance and instantaneous growth of age-0 carpsuckers in the Oconee River, Georgia, USA. River. Reseach and Applications:23:1016-1025

Pottle, R., and M. Dadswell. 1979. Studies on larval and juvenile shortnose (Acipenser brevirostrum). Report to the Northeast Utilities Company. 87 pp.

Price, R. 2013. Project Manager for the Mactaquac Fishway, pers. comm.

Pringle, C. 2003. What is hydrologic connectivity and why is it ecologically important? Hydrological Processes 17:2685-2689.

Quattro, J.M., T.W., Greig, D.K. Coykendall, B.W. Bowen, and J.D. Baldwin. 2002. Genetic issues in aquatic species management: the shortnose sturgeon (Acipenser brevirostrum) in the southeastern United States. Conservation Genetics 3:155-166.

Raymond, W.O. 1905. Glimpses of the past: history of the River St. John, A.D. 1604-1784. Accessed on the internet ()

Richmond, A. M. and B. Kynard. 1995: Ontogenetic behavior of shortnose sturgeon, Acipenser brevirostrum. Copeia 1995:172–182.

Sabatis, L. 2013. Oromocto First Nation, personal communication.

Savoy, T., 2004. Population estimate and utilization of the lower Connecticut River by shortnose sturgeon. American Fisheries Society Monograph 9:345−352

Schmitz, R.J. 1998. Comparative ultrastructure of the cellular components of the unconstricted notochord in the sturgeon and the lungfish. Journal of Morphology 236:75-104.

Scott W.B. and E.J. Crossman. 1973. Freshwater fishes of Canada. Fisheries Research Board of Canada, Ottawa. Bulletin 184. 966 pp.

Scott, W.B. and M.G. Scott. 1988. Atlantic fishes of Canada. Canadian Bulletin of Fisheries and Aquatic Sciences No. 219.

Secor, D. H. and E. J. Niklitschek. 2001. Hypoxia and Sturgeons: Report to the Chesapeake Bay Program Dissolved Oxygen Criteria Team. University of Maryland Center for Environ¬mental Studies, Chesapeake Biological Laboratory. Technical Report Series No. TS-314-01-CBL

Shortnose Sturgeon Status Review Team. 2010. A Biological Assessment of shortnose sturgeon (Acipenser brevirostrum). Report to National Marine Fisheries Service, Northeast Regional Office. November 1, 2010. 417 pp.

Smith, T.J., M.C.C. Smith, W.C. Post, and J.W. McCord. 2002. Stock enhancement of shortnose sturgeon: a case study. Transactions of the American Fisheries Society 28:31-44.

Stokesbury, K.D.E., M.J.W. Stokesbury, M.T. Balazik, and M.J. Dadswell. 2014. Use of the SAFE index to evaluate the status of a summer aggregation of Atlantic sturgeon in Minas Basin, Canada, and the implication of the index for the USA endangered species designation of Atlantic and shortnose sturgeons. Reviews in Fisheries Science and Aquaculture 22:193-206.

Taubert, B.D. 1980. Reproduction of Shortnose Sturgeon, Acipenser brevirostrum, in the Holyoke Pool, Connecticut River, Massachusetts. Copeia 1980:114-117.

Taubert, B.D. and M.J. Dadswell. 1980. Description of some larval shortnose (Acipenser brevirostrum) from the Holyoke Pool, Connecticut River, Massachusetts, USA, and the Saint John River, New Brunswick, Canada. Canadian Journal of Zoology 58:1125-1128.

Traill, L. W., C.J. Bradshaw, and B.W. Brook. 2007. Minimum viable population size: a meta-analysis of 30 years of published estimates. Biological Conservation 139:159-166.

Usvyatsov, S., J. Watmough and M. K. Litvak. 2012a. Age and Population Size Estimates of Overwintering Shortnose Sturgeon in the Saint John River, New Brunswick, Canada. Transactions of the American Fisheries Society 141:1126-1136.

Usvyatsov, S., J. Picka, R. S. Hardy, T. D. Shepherd, J. Watmough and M. K. Litvak. 2012b. Modeling the timing of spawning and hatching of shortnose sturgeon, Acipenser brevirostrum, in the Saint John River, New Brunswick, Canada. Canadian Journal of Fisheries and Aquatic Sciences 69:1316-1328.

Usvyatsov, S., J. Watmough and M. K. Litvak. 2012c. Modeling the Effect of Environmental Parameters on Feeding Ecology of the Shortnose Sturgeon in the Saint John River, New Brunswick Transactions of the American Fisheries Society 141:238-256

Usvyatsov, S., J. Picka, A. Taylor, J. Watmough and M. K. Litvak. 2013a. Timing and Extent of Drift of Shortnose Sturgeon Larvae in the Saint John River, New Brunswick, Canada Transactions of the American Fisheries Society 142:717-730.

Usvyatsov, S., J. Watmough and M. K. Litvak. 2013b. Differentiating between Sampling- and Environment-Related Mortality in Shortnose Sturgeon Larvae Collected Using Anchored D-Frame Nets North American Journal of Fisheries Management 33:595-605.

Vladykov, V.D. and J.R. Greeley. 1963. Family Acipenseridae, p. 26-60. In: Fishes of the western North Atlantic. Memoirs of the Sears Foundation for Marine Science 1:26-60 Yale University, New Haven, CT.

Warren, D. R., A. G. Earnst, and B. R. Baldigo. 2009. Influence of spring floods on year-class strength of fall- and spring-spawning salmonids in Catskill Mountain streams. Transactions of the American Fisheries Society 138:200-210.

Weyers, R. S., C. A. Jennings, and M. C. Freeman. 2003. Effects of pulsed, high-velocity water flow on larval robust redhorse and V-lip redhorse. Transactions of the American Fisheries Society 132:84-91.

Wirgin, I., C. Grunwald, J. Stabile, and J. R. Waldman. 2010. Delineation of discrete population segments of shortnose sturgeon Acipenser brevirostrum based on mitochondrial DNA control region sequence analysis. Conservation Genetics 11:689–708

Ziegeweid, J.R., C. A. Jennings and D. L. Peterson. 2008. Thermal maxima for juvenile shortnose sturgeon acclimated to different temperatures Environmental Biology of Fishes 82:299-307

Zydlewski, G. B., M.T. Kinnison, P.E. Dionne, J. Zydlewski, G.S. Wippelhauser. 2011. Shortnose sturgeon use small coastal rivers: the importance of habitat connectivity. Journal of Applied Ichthyology 27:41−44

Biographical Summary of Report Writers

Dr. Matthew K. Litvak received his B.Sc. from York University in 1981 and his M.Sc. and Ph.D. from University of Toronto, in 1984 and 1990, respectively. He is currently a professor of biology at Mount Allison University, Sackville, NB. He and his graduate and undergraduate students have been working on Shortnose Sturgeon ecology since 1998. His lab was the first in Canada to successfully rear both Shortnose and Atlantic sturgeon larvae in captivity.

Collections Examined

None.

Appendix 1

Appendix 1, Figure 1. Estimated extent of occurrence (EOO) of Shortnose Sturgeon in Canada. The hatched area is the EOO based on Saint John River and adjacent estuary only. The open polygon area is the additional amount of EOO that would encompass the single verified record of unknown origin from Minas Basin in Nova Scotia. Prepared by J. Wu, Environment Canada.
estimated extent of occurrence (EOO) of Shortnose Sturgeon in Canada
Long description for Appendix 1, Figure 1

Map showing estimated extent of occurrence (EOO) of Shortnose Sturgeon in Canada. Two EOOs are indicated: one encompassing the Saint John River and adjacent estuary only (6,532 sq. km), and one encompassing the Saint John River and adjacent estuary plus the single verified record from the Minas Basin in Nova Scotia (14,576 sq. km).

Appendix 2

Appendix 2, Figure 1. Estimated index of area of occupancy of Shortnose Sturgeon in Canada based on spawning area suspected to extend from Mactaquac Dam to Frederiction (hatched squares) or perhaps downstream to Oromocto (open squares). Prepared by J. Wu, Environment Canada.
estimated index of area of occupancy of Shortnose Sturgeon in Canada
Long description for Appendix 2, Figure 1

Map showing estimated index of area of occupancy of Shortnose Sturgeon in Canada based on spawning area suspected to extend (a) from the Mactaquac Dam to Frederiction (80 sq. km) or (b) downstream to Oromocto (144 sq. km).

Appendix 3

Appendix 3, Figure 1. Weight length relationship for Shortnose Sturgeon caught in the lower Saint John River 1998-2002 with 95% confidence limits (blue dashed lines). Red line represents overlay of Dadswell's (1979) relationship for 1973-1977 and the green line represents data collected by Litvak (1998-2001, unpubl. data)..
weight to length relationship for Shortnose Sturgeon
Long description for Appendix 3, Figure 1

Chart showing weight to length relationship for Shortnose Sturgeon caught in the lower Saint John River from 1998 to 2002.

Appendix 4 - International Union for Conservation of Nature Threats Assessment Calculator

Threats Assessment Worksheet

Species or Ecosystem Scientific Name:
Shortnose Sturgeon
Element ID
-
Elcode
-
Date:
17/06/2014
Assessor(s):
K. Ovaska, D. Fraser, M. Sabine, R. Bradford, M. Ridgway, T. Hatfield, E. Taylor
References:
COSEWIC status report, 2014 draft
Overall Threat Impact Calculation Help:
Threat Impact Threat Impact (descriptions) Level 1 Threat Impact Counts:
high range		 Level 1 Threat Impact Counts:
low range
A Very High 0 0
B High 0 0
C Medium 2 0
D Low 1 2
- Calculated Overall Threat Impact: Medium Low
Assigned Overall Threat Impact:
D = Low
Impact Adjustment Reasons:
see below
Overall Threat Comments
The overall assigned threat impact was rated as "low" owing to the considerable uncertainty of the actual effects of most potential threats on Shortnose Sturgeon, particularly given the time frame of 3 generations (60 years).
Threats Assessment Worksheet Table.
# Threat Impact
(calculated)
Criterion		 Impact
(calculated)		 Scope
(next
10 Yrs)		 Severity
(10 Yrs
or
3 Gen.)		 Timing Comments
1 Residential and commercial development - - - - - -
1.1 Housing and urban areas - - - - - not applicable
1.2 Commercial and industrial areas - - - - - not applicable
1.3 Tourism and recreation areas - - - - - not applicable
2 Agriculture and aquaculture - - - - - -
2.1 Annual and perennial non-timber crops - - - - - not applicable
2.2 Wood and pulp plantations - - - - - pulp mills producing pollution are accounted for in 9.0
2.3 Livestock farming and ranching - - - - - disease accounted under 9.0. cattle accounted for under pollution 9.0.
2.4 Marine and freshwater aquaculture - - - - - potential for disease transfer from land-based aquaculture is accounted for under Invasive species (8.1)
3 Energy production and mining - Negligible Negligible (<1%) Negligible (<1%) Moderate - Insignificant/Negligible -
3.1 Oil and gas drilling - Negligible Negligible (<1%) Negligible (<1%) Moderate - Insignificant/Negligible Natural gas drilling currently occurs in Kennebecasis River watershed in Sussex area, approx 50 km above the known overwintering site. There is potential for fracking to occur sometime in the future, at an unknown level of intensity, based on results of current exploratory work, and pending regulatory approval.
3.2 Mining and quarrying - - - - - Large tungsten and molybdenum open-pit mine planned in headwaters (currently under EIA review process); it would include a large (750 ha) tailings pond (waste products to be submerged) involving a dam/impoundment; discussed in pollution (breaching of dam a concern); change in hydrology.
3.3 Renewable energy - - - - - Hydroelectric dams accounted under system modifications (7.2).
4 Transportation and service corridors - Negligible Negligible (<1%) Negligible (<1%) Moderate (Possibly in the short term, < 10 yrs) -
4.1 Roads and railroads - - - - - not applicable
4.2 Utility and service lines - Negligible Negligible (<1%) Moderate (Possibly in the short term, < 10 yrs) - West to east pipelines transport unrefined along length of St John's River (assessment process); will cross major tributaries; rupture once built of concern (to pollution); number of existing pipelines. NG probably not an issue; based on habitat loss
4.3 Shipping lanes - - - - - not applicable
4.4 Flight paths - - - - - not applicable
5 Biological resource use CD Medium - Low Pervasive (71-100%) Moderate - Slight (1-30%) High (Continuing) -
5.1 Hunting and collecting terrestrial animals - - - - - -not applicable
5.2 Gathering terrestrial plants - - - - - not applicable
5.3 Logging and wood harvesting - - - - - not applicable
5.4 Fishing and harvesting aquatic resources CD Medium - Low Pervasive (71-100%) Moderate - Slight (1-30%) High (Continuing) By-catch in commercial and Aboriginal fisheries; recreational fishing (catch and release for the most part, but some hooking mortality is likely); aboriginal fishery; poaching? Management Plan: all ranked as unknown; highest level of concern was "medium" for by-catch, all others "low"; recreational fishing by-catch not showing up as population effect in at least one area; elevated fishing interest from recreational fishers on sturgeon; lots of uncertainty in severity;
6 Human intrusions and disturbance - Negligible Negligible (<1%) Negligible (<1%) Insignificant/Negligible (Past or no direct effect) -
6.1 Recreational activities - - - - - not applicable
6.2 War, civil unrest and military exercises - - - - - Large Military base located adjacent to the river; sedimentation from military exercises covered under see Pollution (9.2) No direct impact likely.
6.3 Work and other activities - Negligible Negligible (<1%) Negligible (<1%) Insignificant/Negligible (Past or no direct effect) Some disturbance caused by ongoing scientific research the benefits of which are likely in excess of any effects from distrubance
7 Natural system modifications CD Medium - Low Pervasive (71-100%) Moderate - Slight (1-30%) High (Continuing) -
7.1 Fire and fire suppression - - - - - not applicable
7.2 Dams and water management/use CD Medium - Low Pervasive (71-100%) Moderate - Slight (1-30%) High (Continuing) -Scope: best available information on movements of fish support pervasive; severity: major dam coming to the end of its life-span & will have to be removed or replaced; to be decided within next 4 years & work started within next 15 years - will probably not happen within next 10 years. Sedimentation will likely be a major issue if dam is removed. Reproduction compromised but long-lived fish & may be resilient. Consider current regime. Hydroelectric dams alter river flows and optimal spawning temperature. Dams block fish passage but it is unknown if SNS were historically found above the dam site. Best available information supports prevasive. Larvae getting blown downstream. Mactaquac replacement plan has potential for profound impact. Dam needs replacement before 2030 but it may occur in the next 10yrs. unknown timing and impact of planned dam replacement. Dependent on how they replace it given the options.
7.3 Other ecosystem modifications - - - - - not applicable
8 Invasive and other problematic species and genes - Negligible Large (31-70%) Negligible (<1%) High (Continuing) -
8.1 Invasive non-native/alien species Invasive non-native/alien species Negligible Large (31-70%) Negligible (<1%) High (Continuing) Introduced diseases from aquaculture & farming. Irrido-virus is a concern for sturgeon. Aquaculture facility is land-based, potential for escapes is low, there is no intentional stocking. Muskellunge introduced to St. John River in the 1970s, currently expanding its range to lower parts of the river where the SN Sturgeon is. It is not known how well established the muskellunge is within SNS range. Potential for predation on juveniles; displacement from habitat. Smallmouth Bass and Chain Pickerel have been well established throughout SNS range for a hundred years.
8.2 Problematic native species - Negligible Large - Restricted (11-70%) Negligible (<1%) High (Continuing) Brown Bullhead (Catfish) - appears to be a recent population explosion - potential predation on young of the year; competition for benthic prey?
8.3 Introduced genetic material - - - - - Not applicable. Aquaculture based on intermittent capture of wild caught St John R fish; land-based facilities, no stocking back into wild population.
9 Pollution D Low Pervasive (71-100%) Slight (1-10%) High (Continuing) -
9.1 Household sewage and urban waste water - Negligible Pervasive (71-100%) Negligible (<1%) High (Continuing) Improving, especially in last 10 years; city of Saint John problematic, but all smaller communities have facilities. Was bad in 60's and 70's so damage is done. Some raw sewage in Saint John, but this has approval for treatment and remedying. Impact is possibly ongoing but negligible wrt other pollution threats.
9.2 Industrial and military effluents D Low Restricted - Small (1-30%) Slight (1-10%) High (Continuing) One of major tributaries flows through major military base - heavy sediment load; industrial effluents, pulpmills (major for SN Sturgeon), food processing plants upstream, but water quality improving below the dam; head ponds may contain pollutants & sediments to some degree; a big issue if dam is removed. Limit category largely to military base because...Major tributary on CFB is “Nerepis” River – there are major sedimentation issues on this tributary due to military activities, but this is not considered a SNS tributary. However, it likely contributes sediment to the lower SJR which is SNS habitat. Pulp upstream but water quality downstream good. Holding ponds contain contaminants in sediments. Dam removal may release these. Pulp Mill in Reversing Falls.
9.3 Agricultural and forestry effluents D Low Pervasive (71-100%) Slight (1-10%) High (Continuing) Lower Kennebecasis River, much agriculture Tributaries of the lower St.John are impacted through sedimentation such as the Kennebecasis and Hammond
9.4 Garbage and solid waste - - - - - not applicable
9.5 Air-borne pollutants - - - - - not applicable
9.6 Excess energy - - - - - not applicable
10 Geological events - - - - - -
10.1 Volcanoes - - - - - not applicable
10.2 Earthquakes/ tsunamis - - - - - not applicable
10.3 Avalanches/landslides - - - - - not applicable
11 Climate change and severe weather - Unknown Pervasive (71-100%) Unknown Moderate (Possibly in the short term, < 10 yrs) -
11.1 Habitat shifting and alteration - Not Calculated (outside assessment timeframe) Pervasive (71-100%) Unknown Low (Possibly in the long term, >10 yrs) Sea level rise: St. Johns R - tidal water 140 km upstream; effect all the way to the dam. Pronounced increase in tidal heights needed to see increase in salinity. sea level rise. Tidal water limit is 140km upstream. Key area for anandromous fish species. Salt water injection is moderate except for spring tides. Sea level rise would be potential for increased salinity. Possible in the next decade.
11.2 Droughts - - - - - not applicable
11.3 Temperature extremes - - - - - not applicable
11.4 Storms and flooding - Unknown Pervasive (71-100%) Unknown Moderate (Possibly in the short term, < 10 yrs) Increased storms predicted; impact most, if result in high snow pack - local flooding in smaller tributaries. Pronounced effect on spawning time for other species but no info on SN Sturgeon. Hydro electric generation could be a factor. spawning occurs below the dam.

Glossary

Impact
The degree to which a species is observed, inferred, or suspected to be directly or indirectly threatened in the area of interest. The impact of each threat is based on Severity and Scope rating and considers only present and future threats. Threat impact reflects a reduction of a species population or decline/degradation of the area of an ecosystem. The median rate of population reduction or area decline for each combination of scope and severity corresponds to the following classes of threat impact: Very High (75% declines), High (40%), Medium (15%), and Low (3%). Unknown: used when impact cannot be determined (e.g., if values for either scope or severity are unknown); Not Calculated: impact not calculated as threat is outside the assessment timeframe (e.g., timing is insignificant/negligible or low as threat is only considered to be in the past); Negligible: when scope or severity is negligible; Not a Threat: when severity is scored as neutral or potential benefit.
Scope
Proportion of the species that can reasonably be expected to be affected by the threat within 10 years. Usually measured as a proportion of the species' population in the area of interest. (Pervasive = 71–100%; Large = 31–70%; Restricted = 11–30%; Small = 1–10%; Negligible < 1%).
Severity
Within the scope, the level of damage to the species from the threat that can reasonably be expected to be affected by the threat within a 10-year or three-generation timeframe. Usually measured as the degree of reduction of the species' population. (Extreme = 71–100%; Serious = 31–70%; Moderate = 11–30%; Slight = 1–10%; Negligible < 1%; Neutral or Potential Benefit > 0%).
Timing
High = continuing; Moderate = only in the future (could happen in the short term [< 10 years or 3 generations]) or now suspended (could come back in the short term); Low = only in the future (could happen in the long term) or now suspended (could come back in the long term); Insignificant/Negligible = only in the past and unlikely to return, or no direct effect but limiting.

Page details

Date modified:
