Northern abalone (Haliotis kamtschatkana): COSEWIC assessment and status report 2009



Committee on the Status of Endangered Wildlife in Canada (COSEWIC) status reports are working documents used in assigning the status of wildlife species suspected of being at risk. This report may be cited as follows:

COSEWIC. 2009. COSEWIC assessment and update status report on the Northern Abalone Haliotis kamtschatkana in Canada. Committee on the Status of Endangered Wildlife in Canada. Ottawa. vii + 48 pp.
(Species at Risk Status Reports)

Previous reports:

COSEWIC. 2000. COSEWIC assessment and status report on the Northern Abalone Haliotis kamtschatkana in Canada. Committee on the Status of Endangered Wildlife in Canada. Ottawa. vi + 20 pp.

Jamieson, G.A. 2000. COSEWIC status report on the Northern Abalone Haliotis kamtschatkana in Canada in COSEWIC assessment and status report on the Northern Abalone Haliotis kamtschatkana in Canada. Committee on the Status of Endangered Wildlife in Canada. Ottawa. 1-20 pp.

Jamieson, G.A. (unpublished report). 1999. COSEWIC status report on the Northern Abalone Haliotis kamtschatkana in Canada. Committee on the Status of Endangered Wildlife in Canada. Ottawa. 1-24 pp.



Production note:

COSEWIC would like to acknowledge Joanne Lessard for writing the update status report on the Northern Abalone Haliotis kamtschatkana in Canada, prepared under contract with Environment Canada. This report was overseen and edited by Janice Smith and Dr. Dwayne Lepitzki, COSEWIC Molluscs Specialist Subcommittee Co-chairs, and Sue Pollard, member of COSEWIC.

For additional copies contact:

COSEWIC Secretariat
c/o Canadian Wildlife Service
Environment Canada
Ottawa, ON
K1A 0H3

Tel.: (819) 953-3215
Fax: (819) 994-3684
E-mail: COSEWIC/COSEPAC@ec.gc.ca
http://www.cosewic.gc.ca

Également disponible en français sous le titre Évaluation et Rapport de situation du COSEPAC sur l’ormeau nordique (Haliotis kamtschatkana) au Canada – Mise à jour..

Cover photo:
Northern Abalone -- Photo by D. Bureau, Fisheries and Oceans Canada, Nanaimo.

© Her Majesty the Queen in Right of Canada, 2009.
Catalogue No. CW69-14/240-2009E-PDF
ISBN 978-1-100-12945-7



COSEWIC
Assessment summary

Assessment summary – April 2009

Common name:
Northern Abalone

Scientific name:
Haliotis kamtschatkana

Status:
Endangered

Reason for designation:
Highly valued for its meat, this marine mollusc is patchily distributed along the west coast of Canada. Despite a total moratorium on harvest in 1990, the species was designated as Threatened in 2000. Poaching is the most serious threat and continues to reduce population abundance, particularly the larger, more fecund component; however, all size classes have declined significantly over the past three generations (i.e. since 1978) with mature individuals declining an estimated 88-89%. Low densities may further exacerbate the problem by reducing fertilization success in this broadcast spawner (the Allee effect). Although predators such as the recovering Sea Otter population are not responsible for recently observed declines, they may ultimately influence future abundance of abalone populations.

Occurrence:
Pacific Ocean

Status history:
Designated Threatened in April 1999. Status re-examined and confirmed in May 2000. Status re-examined and designated Endangered in April 2009. Last assessment based on an update status report.



COSEWIC
Executive summary

Northern Abalone
Haliotis kamtschatkana

Species information

The Northern Abalone, Haliotis kamtschatkana Jonas 1845, is the only species of abalone commonly occurring in Canada. There is only one genetically uniform population along the coast of British Columbia. Northern Abalone are recognized by their low ear-shaped shell with irregular lumps and 3-6 respiratory holes on projections. A groove usually parallels the line of holes. The exterior shell colour is usually mottled reddish or greenish with areas of white and blue. The interior of the shell is pearly white with faint iridescence of pink and green without a muscle scar. The large foot is usually tan surrounded by an epipodium (a sensory structure and extension of the foot that bears tentacles) that is somewhat vertically striped and has a delicate lacy appearance.

Distribution

The Northern Abalone is found off the west coast of North America along exposed and semi-exposed rocky coastlines from Sitka Sound, Alaska, to Turtle Bay, Baja California. In Canada, this species can occur on all coastal areas of British Columbia (BC) where appropriate habitat is available.

Habitat

Northern Abalone occur in a wide range of habitats from fairly sheltered bays to exposed coastlines in a patchy distribution on hard substrate in intertidal and shallow subtidal waters. They require full salinity (>30 ppt) seawater, good water exchange and a source of macro-algae, particularly kelp, as food. The presence of encrusting algae is also important for settlement. Currently, there is ample habitat available for Northern Abalone on the coast of British Columbia.

Biology

Abalone aggregate in shallow depths to release their gametes in the water column; fertilization success depends on the local density of adults. The planktonic phase of the Northern Abalone is short and temperature-dependent (10-14 days at 14-10°C). Settlement is thought to occur on encrusting algae. Juvenile abalone become sexually mature at shell lengths between 50 and 70 mm which requires 2-5 years of growth. Abalone growth can vary considerably between areas depending on the extent of exposure to wave action and availability and quality of food. As juveniles approach maturity, their diet changes from benthic diatoms and micro-algae to drift macro-algae. The majority of juvenile Northern Abalone (10-70 mm shell length) are found in crevices and other cryptic habitats, whereas the majority of adults (>70 mm shell length) occur on exposed rock surfaces. Major natural predators of Northern Abalone include Sea Otters, crabs, octopus, some fishes and Sea Stars (especially Pycnopodia helianthoides).

Population sizes and trends

Surveys have provided a time series of abalone densities and size frequencies from the southeast Queen Charlotte Islands (Haida Gwaii) and the central coast of British Columbia every 3-5 years from 1978 to 2007. Since 1978, abalone densities have declined by 83% on the central coast and by 81% in the Queen Charlotte Islands (approximately 3 generations). The mean total abalone density declined from 2.40 to 0.40 abalone/m² for the central coast between 1978 and 2006, and from 2.22 to 0.43 abalone/m² for the Queen Charlotte Islands between 1978 and 2007. During the same periods, the mean mature (≥70 mm shell length) density decreased from 2.13 to 0.23 abalone/m² for the central coast and from 1.28 to 0.15 for the Queen Charlotte Islands. Immature densities declined from 0.27 to 0.18 abalone/m² and from 1.39 to 0.27 abalone/m² for the central coast and the Queen Charlotte Islands, respectively. Proportionally, the densities of mature abalone decreased more rapidly than that of small individuals. Other surveyed areas have even lower density estimates. There is no evidence of population recovery in British Columbia since the fishery closed in 1990. It is not known what the natural state of the Northern Abalone population may have been prior to the extirpation of Sea Otters. With the re-introduction and recent expansion of Sea Otter populations, restoration of Northern Abalone populations to the levels seen in the late 1970s will probably not be possible.

Limiting factors and threats

The Northern Abalone is particularly vulnerable to harvest because mature individuals tend to accumulate in shallow water and are easily accessible to harvesters. Continued illegal harvest and low recruitment levels due to reduced spawner densities have had predominant and widespread impacts and are considered to be the most significant threats to recovery.

Special significance of the species

The Northern Abalone is the only species of abalone which commonly occurs in British Columbia and is the most northerly distributed of all abalone species. Abalone were important not only as food to coastal First Nations peoples, but also played an important part in their spiritual and cultural society. The closure of all abalone fisheries resulted in the loss of this resource for First Nations as well as the loss of income for commercial harvesters and recreational opportunities for sport divers.

Existing protection or other status designations

Fisheries and Oceans Canada closed (Fisheries Act) all abalone fisheries in December of 1990 due to concerns about low population numbers. Despite the harvest closure, numbers remained low and in 2000 Northern Abalone was designated as ‘threatened’ by COSEWIC. In June 2003, Northern Abalone was legally listed and protected as threatened under the Species at Risk Act (SARA).



COSEWIC history, mandate, membership and definitions

COSEWIC history

The Committee on the Status of Endangered Wildlife in Canada (COSEWIC) was created in 1977 as a result of a recommendation at the Federal-Provincial Wildlife Conference held in 1976. It arose from the need for a single, official, scientifically sound, national listing of wildlife species at risk. In 1978, COSEWIC designated its first species and produced its first list of Canadian species at risk. Species designated at meetings of the full committee are added to the list. On June 5, 2003, the Species at Risk Act (SARA) was proclaimed. SARA establishes COSEWIC as an advisory body ensuring that species will continue to be assessed under a rigorous and independent scientific process.

COSEWIC mandate

The Committee on the Status of Endangered Wildlife in Canada (COSEWIC) assesses the national status of wild species, subspecies, varieties, or other designatable units that are considered to be at risk in Canada. Designations are made on native species for the following taxonomic groups: mammals, birds, reptiles, amphibians, fishes, arthropods, molluscs, vascular plants, mosses, and lichens.

COSEWIC membership

COSEWIC comprises members from each provincial and territorial government wildlife agency, four federal entities (Canadian Wildlife Service, Parks Canada Agency, Department of Fisheries and Oceans, and the Federal Biodiversity Information Partnership, chaired by the Canadian Museum of Nature), three non-government science members and the co-chairs of the species specialist subcommittees and the Aboriginal Traditional Knowledge subcommittee. The Committee meets to consider status reports on candidate species.

Definitions
(2009)

Wildlife Species

A species, subspecies, variety, or geographically or genetically distinct population of animal, plant or other organism, other than a bacterium or virus, that is wild by nature and is either native to Canada or has extended its range into Canada without human intervention and has been present in Canada for at least 50 years.

Extinct (X)

A wildlife species that no longer exists.

Extirpated (XT)

A wildlife species no longer existing in the wild in Canada, but occurring elsewhere.

Endangered (E)

A wildlife species facing imminent extirpation or extinction.

Threatened (T)

A wildlife species likely to become endangered if limiting factors are not reversed.

Special Concern (SC)^Footnote 1

A wildlife species that may become a threatened or an endangered species because of a combination of biological characteristics and identified threats.

Not at Risk (NAR)^Footnote 2

A wildlife species that has been evaluated and found to be not at risk of extinction given the current circumstances.

Data Deficient (DD)^Footnote 3

A category that applies when the available information is insufficient (a) to resolve a species’ eligibility for assessment or (b) to permit an assessment of the species’ risk of extinction.



Canadian Wildlife Service

The Canadian Wildlife Service, Environment Canada, provides full administrative and financial support to the COSEWIC Secretariat.





Table of contents

• COSEWIC Assessment summary
• COSEWIC Executive summary
• Species information
  • Name and classification
  • Morphological description
  • Genetic description
  • Designatable units
• Distribution
  • Global range
  • Canadian range
• Habitat
  • Habitat requirements
  • Habitat trends
  • Habitat protection/ownership
• Biology
  • Life cycle and reproduction
  • Population stock-recruitment and mortality estimates from abalone surveys
  • Predation
  • Physiology
  • Dispersal/migration
  • Interspecific interactions
  • Adaptability
• Population sizes and trends
  • Search effort
  • Abundance
  • Fluctuations and trends
  • Rescue effect
• Limiting factors and threats
  • Threat: Illegal harvest
  • Limiting factor: Low recruitment (due to reduced adult spawner densities)
  • Limiting factor: Sea Otter predation
  • Additional consideration: Habitat loss or degradation
  • Additional consideration: Climate change
  • Additional consideration: Abalone in the marketplace
• Special significance of the species
• Existing protection or other status designations
• Technical summary
• Acknowledgements
• Authorities consulted
  • Abalone Recovery Team (2007)
  • Abalone Recovery Implementation Group (2006-7)
• Information sources
• Biographical summary of report writer
• Collections examined

List of Figures

• Figure 1. Northern Abalone, H. kamtschatkana, shell specimen from the Royal British Columbia Museum
• Figure 2. Northern Abalone, H. kamtschatkana
• Figure 3. Northern Abalone fed only with kelp; cultured by the Bamfield Huu-ay-aht Community Abalone Project, Bamfield, west coast of Vancouver Island. An orange variant is in the foreground (usually darker in its natural environment)

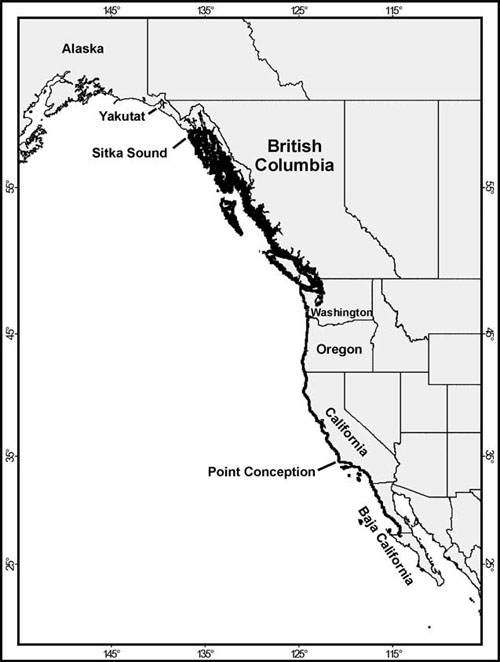

• Figure 4. Global H. kamtschatkana distribution
• Figure 5. Northern Abalone, H.kamtschatkana, distribution in Canada
• Figure 6. Map of BC showing several locations described in the text as well as extent of areas surveyed to monitor abalone in BC for: Queen Charlotte Islands (QCI), central coast (CC), and west coast of Vancouver Island (WCVI)

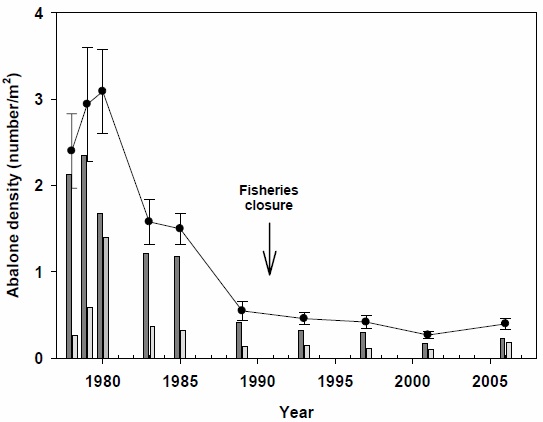

• Figure 7. Abalone total, mature (≥70mm Shell Length [SL]) and immature (<70mm SL) density estimates for the central coast survey time series
• Figure 8. Abalone total, mature (≥70mm SL) and immature (<70mm SL) density estimates for the Queen Charlotte Islands survey time series

List of Tables

• Table 1. First Nations names for Northern Abalone in British Columbia
• Table 2. Mean exposed abalone density estimates (number/m²) by year and size category from index site surveys on the central coast
• Table 3. Mean exposed abalone density estimates (number/m²) by year and by size category from index site surveys in southeast Queen Charlotte Islands

Update - COSEWIC status report on the Northern Abalone Haliotis kamtschatkana in Canada - 2009

Species information

Name and classification

Abalone are currently grouped into the monogeneric family Haliotidae (Phylum Mollusca, Class Gastropoda, Order Vetigastropoda) (Ponder and Lindberg 1997) consisting of 55 described species with a world-wide distribution in tropical and temperate waters of both hemispheres (Geiger 1999). Along coastal regions of the eastern North Pacific Ocean, from Baja California to Alaska, there are seven Haliotis species, many of which coexist in the waters off California and northern Mexico. The Northern Abalone, Haliotis kamtschatkana Jonas 1845, is the only species of abalone commonly found in Canada. Very rarely, specimens of red abalone, H. rufescens, have been found off the coast of western Canada (Campbell pers. comm. 2008). Cox (1962) and Haaker et al. (1986) also list the flat abalone, H. walallensis, as occurring in Canada, but Geiger (1999) lists no such records in his review of abalone taxonomy.

The term ‘northern’ is used as the species is the most northerly distributed of all abalone species (McLean 1966). In the western United States, the species is known as ‘Pinto’ Abalone. The French name is ‘Haliotide pie’ under the SARA (Species at Risk Act) Public Registry. While Montfort (1810) originally used the term ‘haliotide’, the more appropriate name is ‘ormeau nordique’ (plural: ‘ormeaux nordiques’) which is similar to the appellation used in France (Clavier and Richard 1986; Foucher and Cochard 2005). ‘Ormeau’ is used in most, if not all, Fisheries and Oceans Canada translations (e.g., Campbell 2000b; Withler et al. 2001). Several Aboriginal names for abalone were gathered from the published literature and Abalone Recovery Implementation Group (AbRIG) meetings (Table 1).

McLean (1966) and Geiger (1999) recognized two subspecies: Northern or Pinto Abalone, H. kamtschatkana kamtschatkana, and Threaded Abalone, H. k. assimilis Dall 1878 (see Global range for distribution of these two forms). Conversely, Cox (1962) considered them separate species, H. kamtschatkana and H. assimilis, respectively. Regardless, current taxonomists regard the two subspecies as geographic extremes of a single species (Geiger and Poppe 2000).

Morphological description

Like all Haliotis species, Northern Abalone has an ear-shaped shell with a large body whorl, small spire and a row of shell perforations above the respiratory cavity (Figure 1) (McLean 1966; Haaker et al. 1986; Fisheries and Oceans Canada 2007). The exterior shell colour is usually mottled reddish or greenish with areas of white and blue. An orange shell variant is sometimes encountered. There are 3-6 open holes on tubular projections. A groove usually parallels the line of holes. Irregular lumps are superimposed over a spiral sculpture of broad ribs with weak spiral ribs in interspaces. The interior of the shell is pearly white with faint iridescence of pink and green without a muscle scar. The large foot is usually tan. The epipodium (a sensory structure and extension of the foot that bears tentacles) is a mottled pale yellow to dark brown colour, with a pebbly appearing surface and lacy edge. The epipodium tentacles are yellowish brown, or occasionally green, and thin (Figure 2). The Northern Abalone has a flat, elongate shell with rugose surface, while the Threaded Abalone has a high, rounded shell with little rugose sculpture. There is some indication that shell form is partially dependent upon temperature conditions (McLean 1966).

Northern Abalone which feed only on kelp have a mottled pale green shell colour (Figure 3) while shell colour is darker and with more red when they feed on other types of algae and diatoms (Figures figure1–figure2). Switching diet in captivity produces clearly discernable lines of different colours on the shell (feed-marking).

Genetic description

Variation in 12 abalone Deoxyribonucleic acid (DNA) microsatellite loci from 18 sites in British Columbia (BC) and one site from Alaska showed that 99.6% of genetic variation was contained within any sample (site) and only 0.4% among samples (Withler et al. 2001). There was a small division (0.2%) among abalone samples from the Queen Charlotte Islands and Alaska and those found in central and southern BC. The remaining 0.2% was due to differences among samples within each of those two regions. These results suggest that historical and/or current gene flow is sufficient to maintain a high level of diversity and to prevent population subdivision. Withler et al. (2001) could not detect any disruption of gene flow caused by recent low abundance levels. The high level of heterozygosity (H = 0.64-0.74) they found in all samples resulted in a large estimated effective population size for Northern Abalone of 420 000, as well as a high estimate for the average number of migrants entering breeding aggregations in each generation (~20).

As a result of the high microsatellite heterozygosity, it is possible to identify parents of Northern Abalone progeny provided the genetic make-up of the parents is known (Withler pers. comm. 2008). However, current aquaculture abalone stocks, mainly 1st generation (F1) and some 2nd generation (F2) abalone, have the same allele combinations as wild stock and have not yet diverged enough to enable enforcement agencies to distinguish between cultured and wild stocks. Without prior knowledge of the parents and the time-consuming process involved, current aquaculture progeny cannot be genetically differentiated from wild stock at this time.

Northern Abalone can be differentiated from other Pacific species using sperm lysin (Lee and Vacquier 1995) as well as allozymes (Withler 2000). However, it appears that H. kamtschatkana subspecies cannot be genetically distinguished using molecular genetic tools applied to date. Geiger (1998) subdivided the species based on morphology according to McLean (1966). Gruenthal and Burton (2005) could not separate the two subspecies using mitochondrial cytochrome oxydase subunit 1 and cytochrome b as well as DNA coding of VERL (egg vitelline envelope receptor for sperm lysin). Recent studies using DNA microsatellites indicated that all alleles found in a sample of ten H. k. assimilis from central California were present in BC (Withler pers. comm. 2008).

Designatable units

Northern Abalone represents a complex situation where various human-mediated activities have manipulated components of the total population, thus potentially affecting eligibility for status assessment. The genetic and distribution data suggest that, all other things being equal, Northern Abalone should be assessed as a single designatable unit (DU). Lack of molecular genetic variation among sample sites indicates that gene flow is high and, while the species’ distribution on the Pacific coast is not uniform, no major disjunctions in geographical range are evident.

While the large majority of abalone occurs in the wild environment, a captive breeding facility supports the production of abalone for both recovery and commercial purposes. In addition, wild individuals have been transplanted to other wild sites to increase the reproductive potential at these sites. For the purposes of this status assessment, all abalone are considered eligible for inclusion as part of the species being assessed, but only abalone in the wild environment will be included in evaluations of distribution, abundance and trends.



Distribution

Global range

The species H. kamtschatkana is found off the west coast of North America in shallow subtidal waters along exposed and semi-exposed rocky coastlines from Sitka Sound, Alaska, to Turtle Bay, Baja California (McLean 1966; Geiger 1999) (Figure 4). While there are no records of this species in Oregon State (Geiger 1999) it most likely does occur there although virtually no abalone surveys are conducted. O’Clair and O’Clair (1998) report the distribution as extending further north to Yakutat, Alaska, but no record could be located to confirm abalone presence in that region (Foster pers. comm. 2008; O’Clair pers. comm.2008; Wing pers. comm.2008). Geiger (1999) reviewed the taxonomy of all abalone species and consulted several important museum collections from Europe and the United States. While published and museum records exist for Northern Abalone in Cook Inlet and even in the Aleutian Archipelago, Geiger (1999) dismissed these records as erroneous. The northern form, H. k. kamtschatkana, is distributed from Alaska south to Point Conception in central California. The southern form, H. k. assimilis, is distributed from central California to Turtle Bay in Baja California (McLean 1966; Geiger 1999).

In Alaska, Sea Otter, Enhydra lutris, populations have continued to expand in areas where Northern Abalone are present (Woodby et al. 2000). Woodby et al. (2000) saw abalone densities decrease considerably over 10 years of dive surveys (1988/89-1998/99). However, pockets remained and samples taken in 1998 indicated recent recruitment around Sitka Island at the northern end of their distribution. In Washington, Northern Abalone are in decline and exhibit recruitment failure despite closure of the fishery (Rogers-Bennett 2007; Rothaus et al. 2008). They have also declined 10-fold in northern California in the absence of legal fishing pressure (Rogers-Bennett 2007). In southern and central California, Northern Abalone are now extremely rare (Rogers-Bennett 2007). The Threaded Abalone never sustained a commercial catch in Baja California and very few individuals were present in the commercial catch (del Rio-Portilla pers. comm. 2008). Only one or two Threaded Abalone were encountered in surveys conducted in the early 1980s and no individuals were observed in surveys in the 1990s. It is unknown if any live individuals of H. kamtschatkana assimilis still exist in Mexico (del Rio-Portilla pers. comm. 2008). While a range contraction of the Threaded Abalone subspecies may have occurred in its southern range, there has been no known range contraction of H. kamtschatkana kamtschatkana despite significant declines at the extremities of its distribution.

Canadian range

In Canada, Northern Abalone occur only on the Pacific coast of British Columbia, in a patchy distribution on hard substrate in the intertidal and shallow subtidal zones. Abalone can occur on all BC coastal areas where appropriate habitat is available (Figures figure5and figure6). Their distribution is usually aggregated (not uniform over the available habitat). Some localized depletions are known to have occurred (e.g., Cumshewa Inlet, Queen Charlotte Islands; Hankewich et al. 2008). Thomson (1914) could not find abalone in the Georgia Strait, yet abalone are present at several locations in this region today (Wallace 1999; Lucas et al. 2002; anecdotal information from members of the Abalone Recovery Implementation Group (AbRIG) and the recreational dive community). Some known locations that have been used in the past for Aboriginal harvest are now depleted of abalone (anecdotal information from Abalone Recovery Implementation Group (AbRIG) members). Several First Nations communities have reported that, even before the abalone fisheries closure, abalone were disappearing from the intertidal zone and could no longer be harvested as most First Nations collected only abalone exposed by low tides (anecdotal information from AbRIG members).

The extent of occurrence (EO) in Canada has been calculated as 207 478 km² (Filion pers comm. 2008). The EO is an area (polygon) which encompasses all known, inferred or projected sites of present occurrence of the species. As such, the extent of occurrence for Northern Abalone includes land and deep waters. Whereas many locations are known for current and past abalone presence, not all locations where abalone occur have been identified and/or mapped. Northern Abalone are widely distributed in BC and it would be impossible to survey all locations where abalone may exist. The nearshore environment is dynamic, highly variable, and difficult to access, making data collection difficult and expensive. No comprehensive data set exists that would enable the identification or modelling of all abalone habitat in BC. Jamieson et al. (2004) created a model based on the few available physical and biological mapped data to determine areas of suitability for abalone habitat around the Queen Charlotte Islands and on the west coast of Vancouver Island. While the model showed promise in areas where mapped data resolution was high, there were problems in areas of low resolution. Additionally, the model has not been verified by surveys or extrapolated to all of coastal BC. Consequently, there are no area estimates of abalone habitat for the BC coast and, therefore, the area of occupancy (AO; the area within the extent of occurrence that is occupied by the species) cannot be calculated. In any case, the AO for Northern Abalone will be larger than 2000 km² once calculated.



Habitat

Habitat requirements

Northern Abalone occur in a wide range of habitats from fairly sheltered bays to exposed coastlines, from the low intertidal zone to shallow subtidal depth (Fisheries and Oceans Canada 2007). For practical purposes, abalone habitat in BC has been defined using the following parameters (Lessard et al. 2007b):

Physical parameters

1. Primary substrate: bedrock and/or boulders
2. Normal seawater salinity (> 30 ppt; not low salinity as found close to river run off)
3. Depth: ≤10m depth (chart datum)
4. Good water exchange (tidal current or wave action present)
5. Secondary substrate: some cobble may be present but little or no gravel, sediment, sand, mud, or shell present.

Biological parameters

1. Presence of encrusting coralline algae (e.g. Lithothamnium)
2. Presence of Sea Urchins Strongylocentrotus franciscanus and/or S. droebachiensis, Lithopoma gibberosum (= Astraea gibberosa), Sea Stars
3. Presence of kelp in surrounding area (e.g., Nereocystis, Macrocystis, Pterygophora)
4. Presence of abalone

Physical and biological parameters are listed in order of importance. This is considered a broad definition of habitat because not all habitats support high abalone densities. In addition to the inherent difficulty in identifying the parameters affecting abalone distribution (Sloan and Breen 1988; Lessard and Campbell 2007), commercial harvest (legal historical and illegal) as well as the decline in abundance from all causes may have altered remaining distribution patterns (Shackell et al. 2005).

Several studies in BC have determined that while Northern Abalone density increases with relative wave exposure, mean shell length (SL) decreases (Breen and Adkins 1979; Tomascik and Holmes 2003; Lessard and Campbell 2007). In general, abalone densities are low in Macrocystis integrifolia forests and highest in Pterygophora californica forests without surface canopy; densities in Nereocystis luetkeana forests are between these two extremes (Breen and Adkins 1979; Lessard and Campbell 2007). In BC, transplanting slow growing Northern Abalone from high wave exposure areas (referred as “surf abalone”) to sheltered locations increases individual growth rates in both the Queen Charlotte Islands (Breen 1986) and Barkley Sound (Emmett and Jamieson 1988; Lessard pers. comm. 2008).

Abalone larval settlement is thought to occur on encrusting coralline algae (Roberts 2001) which is usually present at sites where abalone already to exist. The layer of encrusting algae may be maintained by Sea Urchins and probably other herbivores which by grazing prevent the growth and settlement of algae and sessile invertebrates (Steneck 1986; Tegner 2000; Tomascik and Holmes 2003).

Habitat trends

Currently, there is ample habitat available for the Northern Abalone population on the coast of BC. Although the abalone population has declined, there has been no known reduction in available habitat.

Habitat protection/ownership

The Northern Abalone is under the jurisdiction of Fisheries and Oceans Canada and is protected under the Fisheries Act and the Species at Risk Act (SARA) although critical habitat has not yet been determined (Fisheries and Oceans Canada 2007). Portions of the Fisheries Act are also enforced by the Department of the Environment, the Department of Indian Affairs and Northern Development, and in BC, the provincial Ministry of the Environment.



Biology

The biology of Northern Abalone was reviewed by Sloan and Breen (1988). In BC, the bulk of the research efforts since that work was published have focused on monitoring the abalone population and rebuilding methods. Recently, a stock-recruitment model was developed for Northern Abalone (Zhang et al. 2007). The results of this model, including the population projections enabled by the model, are an integral part of this Northern Abalone status assessment. The relevant results are described in Population stock-recruitment and mortality estimates from abalone surveys, as well as in other appropriate sections.

Life cycle and reproduction

Northern Abalone spawn synchronously, with groups of males and females in close proximity to each other in shallow depths broadcasting their gametes into the water column (Breen and Adkins 1980b). Abalone can have ripe gonads throughout the year, but more spent gonads were found between April and June near Tofino (Quayle 1971); gonad indices were at their highest in Barkley Sound between June and August (Emmett and Jamieson 1988). Based on field and laboratory observations, Northern Abalone are thought to aggregate on a high spot such as a boulder and/or stack on top of each other to spawn (Quayle 1971; Breen and Adkins 1980b).

In BC, Northern Abalone become sexually mature at a shell length (SL) of about 50 mm and all are mature at 70 mm SL (Quayle 1971; Campbell et al. 1992). Fecundity ranges from 156 985 eggs for a 57 mmSLabalone to 11.56 million eggs in a 139 mm SL female (Campbell et al. 1992). From cumulative size frequency data of abalone surveyed off the southeast Queen Charlotte Islands during June 1990 (Thomas et al. 1990), Campbell et al. (1992) estimated that 50% of the total potential eggs could be produced by mature females <100 mm SL, which constituted 80% of the total population surveyed. The remaining 20% of mature females in the 100-152 mm SL size group could produce about 50% of the total potential egg production. Thus large females make important contributions to the total potential egg production.

Fertilized eggs hatch within 1-2 days into planktonic larvae. The planktonic phase of Northern Abalone is short, greatly limiting dispersal capability, and temperature dependent (10-14 days at 14-10°C) (Sloan and Breen 1988; Pearce et al. 2003). Settlement in many abalone species occurs on encrusting algae (Morse and Morse 1984; McShane 1992; Roberts 2001). Encrusting algae are usually more abundant at greater depths than kelp and other foliose algae, therefore settlement may take place deeper than where adult abalone are more abundant (Breen 1980b; Sloan and Breen 1988) or where there is Sea Urchin grazing.

Juvenile Northern Abalone (< 70 mm SL) are typically cryptic and often found under rocks or in crevices, whereas the majority of adults (≥70 mm SL) are found on exposed rock surfaces (Boutillier et al. 1985; Campbell and Cripps 1998; Zhang et al. 2007). As juveniles mature, their diet changes from benthic diatoms and micro-algae to drift macro-algae. In captivity, diatoms were eaten by all Northern Abalone tested (Paul et al. 1977), but, given choices, abalone preferred Macrocystis integrifolia and Nereocystis luetkeana (Sloan and Breen 1988).

Abalone growth can vary considerably among areas, depending on the extent of exposure to wave action and availability and quality of food. In BC, estimates of the age at which abalone reach 50 mm SL and 100 mm SL are 2 to 5 years and between 6 to 9 years (or more), respectively (Sloan and Breen 1988). The largest shell length of Northern Abalone ever recorded was 165 mm (Breen 1980b). Growth of adults tends to be stunted in highly exposed outer coastal areas due to reduced opportunities for abalone to catch and feed on drift algae in strong wave action and water currents. Abalone growth is more rapid in moderately exposed areas with Giant Kelp, Macrocystis integrifolia, or Bull Kelp, Nereocystis luetkeana, forests than at highly exposed areas with Pterygophora californica kelp forests (Sloan and Breen 1988). Breen (1980b) speculated that ages of 50 years or more were not improbable, based on shell appearances and extrapolation from other invertebrate species present on abalone shells. However, longevity of 15-20 years for Northern Abalone seems more likely based on age determined by spire growth rings (Shepherd et al. 2000), observed sizes taken with growth curves (Quayle 1971; Sloan and Breen 1988), and animals kept in captivity (Paul and Paul 2000).

Thus, an estimate of natural generation time would be approximately 10 years (average age of the parents in the population). However, as large individuals are now rare (see Population sizes and trends), generation time has probably decreased in the last 10 or 30 years. In areas where Sea Otters are present, generation time may even be close to age at maturity, 2-5 years old (see paragraph above and Interspecific interactions and Limiting factor: Sea Otter predation).

Population stock-recruitment and mortality estimates from abalone surveys

Northern Abalone stock-recruitment (SR) relationships and mortality rates were estimated using two abalone index site survey time series (see Population sizes and trends for description of the time series) and established growth models (Zhang et al. 2007). The fitted SR curves were flat and close to linearity, indicating low productivity for the abalone stocks. At low spawning biomass (<0.05 kg/m²) the SR relationships seemed to be density independent (i.e., no Allee effect was detected). There were considerable variations in the SR relationships, and variation in recruitment increased with increasing spawning biomass. The maximum mean recruitment was estimated to be 0.62 abalone/m².

From the two survey time series, excluding surveys when the abalone fishery was opened, adult instantaneous annual mortality rates (Z) were estimated to be 0.29 ± 0.05SE (standard error) (or 25 ± 5%/y) on the central coast and 0.36 ± 0.07SE (or 30 ± 7%/y) on southeast Queen Charlotte Islands (Zhang et al. 2007), which included natural mortality and illegal fishing rates (see Threat: Illegal harvest for further discussion of natural and fishing mortality rates). Simulation results using these mortality rates and SR functions agreed with the observed data reasonably well; the majority of observed mean densities were within the 90% confidence intervals of the simulated results. With these estimated mortality rates (Zhang et al. 2007), modelled population trajectories showed that abalone stocks would continue to decrease in both areas, and extinctions (defined as densities <0.001 abalone/m²) would occur in approximately 270 years (Lessard et al. 2007b).

In areas without Sea Otters, the long-term recovery target was set as 1 spawner/m² (1 mature abalone ≥70mm SL/m²) based on the SR model (Zhang et al. 2007). No data are available to model areas with Sea Otters. The SR relationships showed that at this level, an increase in spawning biomass did not correspond to a comparable increase in the number of recruits and therefore the benefit of further increasing the number of spawners decreased. The mortality rate would have to decrease to at least 0.15 (or 14%/y) to recover abalone to the 1 mature abalone/m² level within 70 years (Lessard et al. 2007b).

Predation

Abalone are prey for Sea Otter, Enhydra lutris; River Otter, Lontra canadensis; Mink, Mustela vison; crab, Cancer spp.; Sea Stars, Pycnopodia helianthoides; Octopus, Enteroctopus dofleini; Wolf Eel, Anarrhichthys ocellatus; Cabezon, Scorpaenichthys marmoratus; and other fish species. See also Limiting factor: Sea Otter predation.

Physiology

Important physiological tolerances are described under Adaptability below.

Dispersal/migration

As larvae of abalone species are generally non-feeding and poor swimmers, many authors have suggested that larval dispersal is minimal and that recruitment is from local reproductive populations (Tegner and Butler 1985; Prince et al. 1987; McShane et al. 1988; McShane 1992; Shepherd and Brown 1993; Tegner 1993; McShane 1995a,b). Nevertheless, larval dispersal probably does occur in several abalone species, including Northern Abalone, as genetic studies have found high genetic variation which indicates gene flow over large areas with little population subdivision (Brown 1991; Brown and Murray 1992; Shepherd and Brown 1993; Burton and Tegner 2000; Withler et al. 2003).

While adult and juvenile abalone can move several metres during a day, they are usually considered sedentary and probably spend their lifetime close to their settlement place (Sloan and Breen 1988). Some adult abalone even show home scars (bare rock underneath an abalone matching the shape of the shell), indicating that their movement is minimal (Breen 1980b). Quayle (1971) found little vertical or lateral movement, <50 m annually, from tagged abalone. The maximum recorded movement was 125 m in one year (Emmett and Jamieson 1988).

Interspecific interactions

Within the nearshore exposed or semi-exposed coastal waters, Northern Abalone play the role of herbivore and are the prey of many species. Food for juvenile and adult abalone includes macro-algae and kelp, often in the form of drift algae. Recovery of abalone may be related to the abundance and health of kelp forests in certain areas. Northern Abalone also compete with other species (e.g., Red Sea Urchins, Strongylocentrotus franciscanus) for food.

The role of Sea Otters in shaping the nearshore kelp forest ecosystem likely has a significant impact on the structure of the Northern Abalone population where the two species co-exist. Studies have shown that in areas where Sea Otters are present abalone are smaller and are restricted to crevices and other cryptic habitats where they are inaccessible to, or hidden from, Sea Otters (Lowry and Pearse 1973; Cooper et al. 1977; Breen et al. 1982b; Pollard 1992; Watson 1993, 2000; Fanshawe et al. 2003). It is unclear whether abalone inhabit crevices as a direct result of Sea Otter predation or because the abundant supply of food (perhaps as a result of Sea Otter predation on herbivores) reduces their foraging activity (Lowry and Pearse 1973).

Adaptability

Northern Abalone live in a wide range of habitats and have a large distribution from Alaska to Baja California. They also have a wide range of temperature tolerance. When exposed to temperatures between 2°C and 24°C in the laboratory, there was no mortality or evidence of respiratory stress (Paul and Paul 1998). McLean (1966) speculated that temperature tolerance accounted for differences in depth distribution at the extreme of H. kamtschatkana geographical range, from the lower intertidal zone to approximately 10 m depth in their northern range and strictly subtidal in the southern portion of their range.

Northern Abalone can survive, grow and reproduce in aquaculture settings (Paul and Paul 2000; Pearce et al. 2003). Outplanting of juveniles and larvae from aquaculture into natural habitats has taken place in BC. However, no published results on survival are available at this time. In New Zealand, Australia, South Africa and the United States, there is short-term evidence that outplanting juveniles can be successful in some cases (Schield 1993; Rogers-Bennett and Pearse 1998; Tegner 2000; De Waal and Cook 2001; Dixon et al. 2006). However, the only long-term results are from Japan where outplanting of large juveniles (> 30 mm SL) has maintained the abalone fishery, but has not contributed to wild production (Tegner 2000; Uchino et al. 2004). Releasing hatchery-reared abalone larvae has met with limited success, with most studies concluding that larval release is not suitable for large scale restocking (reviewed in Roberts et al. 1999). Thus, survival of outplanted juveniles has been shown in other abalone species, but has not yet been proven with Northern Abalone.

In Barkley Sound, wild-to-wild translocation of Northern Abalone from exposed to more sheltered habitat enhances individual growth rates (Emmett and Jamieson 1988). In 2002, a study was initiated in Barkley Sound to evaluate wild-to-wild translocation (adult aggregation) as a rebuilding method for Northern Abalone. Preliminary results indicate that a good proportion of the translocated adult abalone stayed within their new habitat and probably contributed to the subsequent increase in juvenile densities (Lessard pers. comm. 2008). The Kitasoo and Haida Habitat Stewardship Projects conducted comparable experiments on the central coast and Queen Charlotte Islands and reported similar results (DeFrietas pers. comm. 2007; Harding pers. comm.2007). Thus, Northern Abalone may be able to survive, grow and reproduce after wild-to-wild translocations.



Population sizes and trends

Search effort

Since 1978, index site surveys have provided a time series of abalone densities and size frequencies from the Queen Charlotte Islands and the central coast of BC, every 3–5 years (Figure 6) (Breen et al. 1978b; Adkins and Stefanson 1979; Breen and Adkins 1979, 1980a, 1981; Breen et al. 1982a; Boutillier et al. 1984, 1985; Farlinger and Bates 1986; Carolsfeld et al. 1988; Thomas et al. 1990; Farlinger et al. 1991; Winther et al. 1995; Thomas and Campbell 1996; Campbell et al. 1998, 2000; Atkins et al. 2004; Lessard et al. 2007a; Hankewich and Lessard 2008; Hankewich et al. 2008). Index site surveys have consistently used the standard (‘Breen’) method developed by Breen and Adkins (1979). Although there are a few published Northern Abalone surveys for southern BC (Quayle 1971; Breen et al. 1978a; Adkins 1996; Wallace 1999; Atkins and Lessard 2004; Davies et al. 2006) they did not provide the extended coverage and the time series compared to the surveys in the northern half of BC. Most surveys were conducted in northern BC where the bulk of BC historical commercial abalone harvest occurred and where abalone were considered most abundant (Sloan and Breen 1988). In addition to the time series, several other surveys using other methods have been completed or are ongoing in BC. However, none of these surveys have the time series or the method consistency that the index site surveys have provided. Consequently, the results from time series in northern BChave been used to make management decisions. It should be noted that the majority of the time series took place in areas without Sea Otters (either spatial or temporal).

In 1978-1983, the surveyed sites were selected because of harvestable commercial abalone abundances. Index sites subsequently added were selected because of good abalone abundances. In areas without time series (Queen Charlotte and Johnstone Straits, west coast of Vancouver Island and Georgia Strait), sites were randomly selected prior to the survey and only those sites largely composed of abalone habitat were included in the analysis. During each survey, site positions were located from previous chart records, written descriptions, photographs and Global Positioning System (GPS) positions. Once each site was located, divers placed a 1 m² quadrat at the top of the abalone habitat zone and then sampled 16 quadrats which were arranged in four transects, each 4 m apart, and each of the four quadrats within a transect were 1 m apart. For each quadrat, exposed abalone were measured and, in recent years, several habitat characteristics were recorded (algae cover and species composition, number of urchins, species and relative size of predators, depth and substrate). Only exposed abalone are included in the density estimates given in this report as cryptic searches (where divers turned boulders and rocks) were not conducted in all survey years. Survey methods exist where the majority of small abalone are sampled (e.g., night surveys and cryptic searches), but, as mentioned before, these have not been consistently used over many years and are either logistically difficult or time consuming. Using the Queen Charlotte Islands time series data, Zhang et al. (2007) determined the percentage of cryptic abalone to be almost 100% for abalone <20 mm SL decreasing progressively to approximately 20% for 70 mm SLabalone. However, during more recent surveys, abalone <20 mmSLhave been regularly seen exposed (Lessard pers. comm. 2008). While not all immatures are sampled during index site surveys, a significant portion are exposed and available for sampling. Consequently, immature densities calculated from the two time series are used as an index of recruitment in the current assessment.

Abundance

Based on microsatellite heterozygosity, the estimated effective population size (the population contributing to the next generation) for Northern Abalone is 420 000 (Withler et al. 2001; see also Genetic description); this is the only estimate of abundance for Northern Abalone and reflects more the long-term historical than contemporary effective population size. Although habitat characteristics are fairly well defined, not all abalone habitat locations are known due to knowledge gaps in shoreline composition, and therefore there is no estimate for AO. Consequently, the index site survey time series have provided an ‘index’ of abundance as opposed to a total number of individuals (population number).

The mean total abalone density^Footnote 4 at index sites declined from 2.40 to 0.40 abalone/m² for the central coast, between 1978 and 2006 (Table 2, Figure 7), and from 2.22 to 0.43 abalone/m² for the Queen Charlotte Islands between 1978 and 2007 (Table 3, Figure 8). During the same periods, the mean mature (≥70 mm SL) density decreased from 2.13 to 0.23 abalone/m² for the central coast and from 1.28 to 0.15 for the Queen Charlotte Islands. Immature densities declined from 0.27 to 0.18 abalone/m² and from 1.39 to 0.27 abalone/m² for the central coast and the Queen Charlotte Islands, respectively. Proportionally, the densities of mature and large abalone decreased more rapidly than that for small individuals (Atkins et al. 2004; Lessard et al. 2007a). The declines in density estimates for all size categories were statistically significant between the latest surveys and those completed in 1978 (about three generations). However, only the mature and large abalone density estimates from the 2006 or 2007 surveys were significantly lower when compared to the 1989 or 1990 surveys–just before the fisheries closed. The cryptic nature of the juveniles and possible changes in how they were sampled and became exposed over time suggest that trend analyses for the immature group may be affected by other factors (e.g., search efficacy improves with increased understanding of cryptic juvenile habitats).



The mean size of abalone measured on the central coast in 2006 (69.4 mm SL) was significantly smaller than in every other survey year since 1978, with the exception of 1980 (68.2 mm SL) (Hankewich and Lessard 2008). Similarly, the mean size of the Queen Charlotte Islands abalone in 2007 (61.5 mm SL) was significantly smaller than estimates from every other survey year, with the exception of 2002 (67.0 mm SL) (Hankewich et al. 2008). These decreases in mean size were the result of a greater proportion of small individuals combined with a decrease in maximum shell length.

The large decrease in mature abalone densities combined with the decline in mean SL since the fisheries closure suggest size-selective fishing (poaching) mortality. Sea Otters were present in only a small portion of the central coast surveyed areas, and were absent from the Queen Charlotte Islands (Nichol et al. 2005). Therefore, Sea Otter predation could not explain these reductions in density and mean size estimates. Other sources of mortality, including disease and/or seastar predation, would also affect smaller individuals (<70 mm SL). Currently, abalone populations in the Queen Charlotte Islands are skewed towards higher densities of immature individuals (Figure 8). This trend was also observed in the central coast abalone in 2006, though not to the same extent (Figure 7). Oceanic conditions appear to have been favourable for abalone reproduction and recruitment over the last few years; the densities of immature abalone in 2006-2007 were the highest since the harvest ban in 1990. Yet, the densities of mature abalone are not increasing correspondingly. Obviously, abalone in BC are either experiencing mortality before reaching maturity, or their addition to the mature cohort is being offset by mortality of existing mature abalone. The accumulation of large individuals expected for this long-lived species in the absence of harvest and Sea Otter predation, as was seen prior to the expansion of the commercial fishery in the late 1970s (Breen 1986), has not taken place. Large adult abalone (≥100 mm SL; former legal minimum size) were at their lowest recorded levels during the most recent surveys in both regions (Tables table2–table3).

New index site surveys were initiated on the west coast of Vancouver Island (WCVI) in 2003 (Atkins and Lessard 2004) and in Queen Charlotte and Johnstone Straits in 2004 (Davies et al. 2006) using the Breen survey method. The mean total density estimates were 0.06 abalone/m² in Queen Charlotte Strait and 0.02 abalone/m² in Johnstone Strait. Previous surveys done in one particular location in Johnstone Strait indicated high abalone density, up to 10 abalone/m², based on timed-swims in 1977 (Breen et al. 1978a), and 1.13 abalone/m² in 1986 using the Breen method (Adkins 1996). This particular location was the only place in Johnstone Strait where divers observed any abalone at all in 2004, except one individual at another site. Harvest logs confirm that there were commercially harvestable numbers in Queen Charlotte and Johnstone Straits (Harbo 1997), but a survey by Breen et al. (1978a) suggested that the fishery was largely confined to the northwest portion of Queen Charlotte Strait, where densities were higher. In Queen Charlotte Strait in 1977, Breen et al. (1978a) visually estimated abalone densities to be generally low, 1/m² or less, and noted a scarcity of juveniles. Although not directly comparable due to differences in survey designs, abalone densities in Queen Charlotte Strait have certainly decreased since 1977.

In 2003, on the northwest side of the west coast of Vancouver Island, the mean total density was 0.09 abalone/m² from all sites sampled, but 0.21 abalone/m² from sites in Quatsino Sound where more sheltered abalone habitat was present (Atkins and Lessard 2004). Sea Otters have inhabited the surveyed area of the west coast of Vancouver Island since 1989 and more specifically since 1991 in Quatsino Sound (Watson et al. 1997). The Quatsino Sound density estimate was higher than abalone densities estimated by Watson (1993) in areas with Sea Otters despite sampling for exposed abalone only (i.e., not cryptic as no rocks were turned). This may be the result of the relatively low abalone densities which make abalone a scarce food resource for Sea Otters; being scarce may prevent abalone from being selected, as Sea Otters often exploit seasonally abundant food resources (Watson et al. 1997). No other abalone surveys exist for the area surveyed in 2003; therefore trends for this area cannot be assessed.

In Georgia Strait, only a small portion on the southern tip of Vancouver Island has recently been surveyed, i.e., in February 2005 (Lessard pers. comm. 2008). Only three individual abalone were found at two (11%) of the 19 sites surveyed. The mean density for all sites surveyed was 0.0098 abalone/m². This estimate was drastically lower than density estimates from two previous surveys on the southeast side of Vancouver Island; one in 1982, 0.73 abalone/m², and one in 1985, 1.15 abalone/m² (Adkins 1996). Abalone stock in these areas has declined by more than 98% since the mid-1980s. Due to access restrictions enforced by a prison, the waters around William Head have been a de facto marine reserve since 1958 (Wallace 1999). During a 1996/97 survey at this prison site, divers found 211 abalone in 275 minutes of diving (0.77 abalone/min). At four sites surveyed in proximity of William Head in 2005, only one abalone was found (Lessard pers. comm. 2008). Although a few (<10) more were observed outside of the quadrats (<0.1 abalone/min), the abalone population around William Head seemed to be disappearing. This large decrease could be a result of poaching, but because of the security at this particular location, the most likely reason is simply that the large abalone found during the previous surveys have died and there has been no, or little, recruitment. The sizes of the three sampled abalone during the 2005 survey were 141 mm, 135 mm, and 135 mm SL, well above the historical size limit of 100 mm SL in place during the former fishery. The results from the 2005 survey were similar to surveys conducted in the San Juan Islands by the Washington Department of Fish & Wildlife. The mean density of Northern Abalone in 2006 at the San Juan Islands index sites was 0.04 abalone/m² and ranged from 0.082 to 0.000 abalone/m², with two sites extirpated (Rothaus et al. 2008). All the abalone measured were large, indicating recruitment failure.

Fluctuations and trends

Northern Abalone total and mature densities at index sites have declined by 83% and 89% on the central coast and by 81% and 88% in the Queen Charlotte Islands since 1978 (approximately three generations). Since the fisheries closure in 1990, mature abalone densities have continued to decline, 44% for both time series, but immature density estimates increased and were 29% and 35% above the levels observed during the 1989 central coast and 1990 Queen Charlotte Islands surveys, respectively. Since the fisheries closure, total abalone density estimates have been fluctuating at low levels and there have been no statistically significant changes. However, the mature and large density estimates have declined since 1990. Hence, abalone population rebuilding in BC has not taken place in the absence of legal harvest.

Based on the stock-recruitment model, abalone population growth trajectories were simulated at various mortality levels for the central coast and the Queen Charlotte Islands abalone stocks (Zhang et al. 2007). Abalone stocks would be sustainable with adult mortality rates around 0.25 (or 22%/y), and would increase or decrease with lower or higher mortality rates, respectively. Adult mortality rate estimates were >0.25 in areas of northern BC without Sea Otters after the closure to all fisheries in 1990, which likely contributed to low abalone population abundances. Indeed, the prospect of further precipitous abalone population declines must be considered a real possibility with the continued illegal harvest (poaching) by humans and the continued growth and spread of the Sea Otter population in BC.

It is unknown what the natural state of Northern Abalone populations may have been historically. Abalone populations probably fluctuated even in the absence of commercial fishing. Exploratory surveys conducted in the southeast Queen Charlotte Islands in 1955 (Quayle 1962) suggested that Northern Abalone were less abundant in 1955 than in both 1913 (Thomson 1914) and in the late 1970s (Breen 1980a). The extirpation of Sea Otters had an effect on all invertebrate populations, including Northern Abalone. With the re-introduction and recent expansion of the Sea Otter population, restoration of the Northern Abalone population to the levels seen in the late 1970s will probably not be possible.

Rescue effect

As stocks are lower and declining in Alaska (Woodby et al. 2000), Washington (Rothaus et al. 2008) and California (Rogers-Bennett 2007), BC has, relatively speaking, a healthier Northern Abalone population. Larvae dispersal may be possible from Washington or Alaska (see Dispersal/migration), but the likelihood is small given their low Northern Abalone population abundances. Furthermore, wild introductions and/or supplementation from US sources will not be possible without depleting their stocks.



Limiting factors and threats

The Northern Abalone is particularly vulnerable to overharvest because mature individuals tend to accumulate in shallow water and are easily accessible to harvesters. Continued illegal harvest and low recruitment levels due to reduced spawner densities have had predominant and widespread impacts and are considered to be the most significant threats to Northern Abalone recovery. Another limiting factor to the rebuilding of Northern Abalone population is Sea Otter predation. Additional considerations of abalone habitat loss and/or degradation, climate change and the presence of abalone in the marketplace also are discussed.

The following threats and limiting factors are listed in order of importance, according to current knowledge and the expert perception of the Abalone Recovery Team (Fisheries and Oceans Canada 2007).

Threat: Illegal harvest

Illegal harvest or poaching of abalone is considered an important source of abalone mortality (Jubinville 2000). The most recent estimates of adult instantaneous annual mortality rates were 0.33 (or 28%/y) for the central coast (Hankewich and Lessard 2008) and 0.32 (or 27%/y) for the Queen Charlotte Islands (Hankewich et al. 2008). Both estimates were greater than natural mortality rates, 0.15-0.20 (or 14-18%/y), estimated by Breen (1986). However, these mortality rate estimates were within the range Breen (1986) estimated for areas exposed to the commercial fishery (0.21-0.41 or 19-34%/y). The rates indicate that illegal harvest was probably still ongoing and was a major source of mortality following the fisheries closure.

Between 1997 and 2006, approximately 30 abalone poaching convictions have been made. In some cases, multiple charges were laid and strict sentences imposed on repeat offenders. However, fishery officers suggest that poaching remains a major concern and estimate that only 10-20% of poaching activity is prosecuted (Hume pers. comm. 2006), meaning fishery officers think that 80-90% of poaching is not prosecuted, unknown, or otherwise undetected. There were also 14 reports of suspected poaching in 2004 and 23 in 2005. The majority of reports received were from northern BC (Hume pers. comm. 2006).

Mature Northern Abalone, which tend to accumulate and aggregate in shallow water, are easily accessible to harvesters. The high market value of abalone and the difficulty in enforcing the fisheries closure in large, mostly uninhabited coastal areas has fostered illegal harvesting. Poaching not only depletes the already depressed Northern Abalone population, but also reduces their reproductive potential by removing large mature abalone and leaving the remaining mates too far apart to successfully spawn (see next subsection). This combination seriously hinders rehabilitation through the harvest closures. The mean size of all abalone poached, for which measurements were taken, was 115.1 mm (±0.41SE) with a range of 70-154 mm and only 179 abalone out of 1239 were below the former legal size (Lessard pers. comm. 2008). Therefore, poachers preferentially select larger abalone which are more fecund, thus compounding the problem.

Limiting factor: Low recruitment (due to reduced adult spawner densities)

Low recruitment in an area, over a protracted period of several years, may contribute to further declines in the Northern Abalone population by failing to replenish the reproductive adults that die from natural causes or illegal harvest. Spawning aggregations are believed to enhance reproductive success in many abalone species by increasing the chance of fertilization (Sloan and Breen 1988; Shepherd and Brown 1993; McShane 1995a,b; Shepherd and Partington 1995; Babcock and Keesing 1999; Dowling et al. 2004). Recent studies on several abalone species (McShane 1995a,b; Shepherd and Partington 1995; Babcock and Keesing 1999; Dowling et al. 2004) and Sea Urchins (Levitan et al. 1992; Levitan and Sewell 1998) have pointed to reduced fertilization success caused by dilution of gametes through reduced adult spawner densities, known as the Allee effect (Allee et al. 1949).

A critical density below which fertilization is essentially zero has not been determined for Northern Abalone. Shepherd and Brown (1993) observed a 50% decline in the proportion of aggregating adults in H. laevigata, an Australian species, when density declined from 1.8 to 0.7/m². They reasoned that the loss of reproductive potential is multiplied by a factor related to the ability of abalone to aggregate. In other words, the effective population size declines more rapidly than the true population size as density declines. In the same study, a mean density change from 0.37 to 0.29/m² in 13 years was followed by a recruitment failure (Shepherd and Brown 1993).

Minimum thresholds at which the Allee effect becomes significant have been estimated for other abalone species at between 0.15 to 0.33 abalone/m² (Shepherd and Partington 1995; Babcock and Keesing 1999). Based on a recent study in the US San Juan Islands, adjacent to the southern tip of Vancouver Island, Rothaus et al. (2008) proposed that Northern Abalone may actually have a higher Allee effect threshold than these proposed densities. Estimates of Northern Abalone density for the Queen Charlotte Islands in 2002 and 2007 were below 0.15 mature abalone/m² (Table 3), while estimates in the central coast have been below 0.33 mature abalone/m² since 1993 (Table 2). Furthermore, all new survey sites on the west coast of Vancouver Island and Georgia Strait were considerably less than 0.15 abalone/m² with the exception of the sheltered site in Quastino Sound.

The San Juan Island Study (Rothaus et al. 2008) concluded that overharvest may have been responsible for low densities (and possible Allee effect) in the 1990s but Allee effects associated with reduced fertilization success appeared to be responsible for more recent, ongoing recruitment failure. This was supported by an increase in the mean shell size over time coupled with the disproportionate reduction in individuals <90 mm SL. In BC, mean size actually appears to be dropping along with a disproportionately greater decline in larger individuals suggesting that ongoing removal of large abalone continues to be an issue although the Allee effect for some populations may also be contributing to the low densities observed.

Limiting factor: Sea Otter predation

The Sea Otter is an important natural predator of many marine invertebrates, including abalone, and as a consequence can have a significant effect on the nearshore coastal ecosystems of BC (Watson 2000). A massive fur trade occurred from the mid-1700s until 1911 when Sea Otters were protected under the International Fur Seal Treaty. By that time, few populations remained and the last Sea Otter in BC was shot in 1929 resulting in their extirpation in BC. Subsequently, the Sea Otter was reintroduced into BC in three separate translocations from Alaska between 1969 and 1972 and, with the absence of exploitation, the population has grown and continues to spread in BC (Watson et al. 1997; Nichol et al. 2005). Sea Otters in Canada were designated by COSEWIC as Endangered in 1978, re-examined and confirmed as Endangered in 1986, re-designated as Threatened in 1996, re-examined and confirmed as Threatened in 2000, and re-examined and designated as Special Concern in 2007 (COSEWIC 2007).

Mortality rates of Red Abalone, H. rufescens, populations in California in areas occupied by Sea Otters has been estimated at 0.3-1.0 (or 26%-63%/y) (Hines and Pearse 1982 in Shepherd and Breen 1992) and 1.3 (or 73%/y) (Deacon 1989 in Shepherd and Breen 1992). In BC, there are no estimates of predation mortality by Sea Otters. However, rough estimates of mortality rates were calculated from Watson’s (1993, 2000) studies on the effect of Sea Otters on nearshore ecosystems (Lessard et al. 2007b). At a permanent site in Kyuquot Bay, the mean number of exposed abalone was 0.97/m² in 1988, decreased to 0.36/m² the following year and was 0.22/m² in 1990 (Watson 1993). At that site, Sea Otters were first observed in November 1988 and foraged sporadically thereafter (Watson 1993). The abalone mortality rates were estimated to be 0.99 and 0.49 (or 63%/y and 39%/y). No legal fishery took place once Sea Otters had occupied the area (Harbo 1997). These mortality rate estimates should be considered carefully as they do not include the number of Sea Otters in the area recently occupied nor do they distinguish between Sea Otter predation and other mortality causes including poaching. Nevertheless, these estimates are similar to those estimated for California.

Abalone populations have been present at low stable abundances in Sea Otter areas in California (Cooper et al. 1977; Hines and Pearse 1982; Wendell 1994; Micheli et al. 2008). In BC, abalone do co-exist in areas with Sea Otters, but it is not known at this time at what levels they will persist once the Sea Otters’ other food items, i.e., Sea Urchins and other shellfish species, are depleted. Sea Otters and abalone co-existed in BC for millennia prior to the extermination of Sea Otters by humans in BC (Watson 2000). However, the exact mechanisms for this coexistence and the survival of abalone at low abundance in BC are not known. Ecosystems are clearly complex, constantly changing in spatial and temporal scales and can foster the development of counter-intuitive population changes (Sinclair and Byrom 2006). Carter et al. (2007), using Sea Urchins, have shown that the “sea otter-trophic cascade paradigm” is not applicable in all locations and habitat types. Many factors, such as environmental variability (e.g., storm frequency, climate change) and biological factors (e.g., disease, invertebrate predators and competitors, density dependent effects on growth, reproduction, and survival) may positively or negatively influence abalone density and abundance in an area.

Most of what is known about abalone in BC is based on studying systems without Sea Otters. While Sea Otters are clearly not responsible for the observed declines in the Northern Abalone population over the last few decades, as the range of Sea Otters expands, Northern Abalone may only persist at low levels. In areas where abalone have been severely depleted by natural factors and/or human poaching, subsequent Sea Otter predation may significantly accelerate the decline and contribute to the demise of abalone populations in many areas of BC.

Additional consideration: Habitat loss or degradation

In general, the impacts of works and developments on, in, and under the water (e.g., marinas, loading facilities, aquaculture farms) on abalone populations and their habitat have not been studied. Conversely, while their cumulative impacts are unknown, the areas potentially affected are relatively small where abalone habitat with high suitability is present (wave-exposed areas, mainly northern BC and west coast of Vancouver Island). In order to evaluate the impacts on Northern Abalone and their habitat, a protocol has been developed for authorizing and monitoring works and developments around abalone habitat (Lessard et al. 2007b). Continued monitoring and regulation will be necessary to maintain habitat in which the Northern Abalone can be recovered and to prevent losses to important spawning aggregations.

Currently, abalone habitat loss or degradation is listed as a threat in the recovery strategy (Fisheries and Oceans Canada 2007). While there is a great amount of uncertainty (lack of knowledge) regarding the impacts of works and developments on abalone and their habitat, habitat loss and/or degradation from these activities is not considered to be a major concern as long as the protocol of Lessard et al. (2007b) continues to be applied.

Additional consideration: Climate change

Anomalous warming of surface water is one of the physical consequences of El Niño (Tabata 1985). The frequency and intensity of El Niño have been increasing since the 1975-76 regime shift in the North Pacific (Vilchis et al. 2005). Adult abalone populations are affected by the availability of drift kelp as a food source (Tegner et al. 2001). Tegner et al. (1996) determined that a >50% reduction in Macrocystis pyrifera carrying capacity coincided with the warming trends since 1957. Abalone growth declined during El Niño conditions (Haaker et al. 1998) which was probably due to reduced food quality or quantity (Vilchis et al. 2005). In Barkley Sound, BC, a study was conducted to assess the effects of the 1997 El Niño on the fish and algae communities within Macrocystis integrifolia kelp beds (Lessard pers. comm. 2008). There was a significant decline in the percent cover of algae between 1997 and 1998.

Northern Abalone have a considerable temperature tolerance. Although they may be directly affected by global warming in their southern distribution (Rogers-Bennett 2007), direct effects in Canada are not expected to occur for several years as BC is well within the global distribution of the species. In contrast, abalone food, namely kelp, is expected to be directly affected by climate change as warmer waters are usually nutrient-depleted–which is known to affect kelp growth in California and in BC (Tegner et al. 1996; Vilchis et al. 2005; Lessard pers. comm. 2008).

Additional consideration: Abalone in the marketplace

Other species of abalone from aquaculture and commercial fisheries in other jurisdictions (including Australia, Mexico, China, Chile, and the United States) are still available in the BC marketplace. Stock laundering through these legitimate sources is possible. While it is feasible to genetically differentiate abalone species, identifying the provenance of H. kamtschatkana is problematic because of little population subdivision across its global distribution (see Genetic description).

Furthermore, current Northern Abalone aquaculture stocks in BC have not yet been distinguished genetically from wild sources. Tracking protocols for sold individuals are in place to limit the avenues through which wild abalone may be “laundered” as cultured product. Abalone aquaculture stocks are currently included in the SARA listing and require a SARA permit to be transferred to the wild or sold. Optimistically, negative impact to the wild abalone population is not expected to increase if current tracking protocols remain in place.



Special significance of the species

Long harvested by coastal First Nations, abalone (Haliotis spp.) meat was consumed as food and the shells or pieces of shell of Northern Abalone or Red Abalone (H. rufescens) traded from California were used in BC as fishing lures, in jewellery and as an inlay for carvings (Stewart 1977; Sloan 2003). Abalone buttons on a ceremonial blanket were a sign of wealth to the Tsimshian (Reece 2000). Abalone were important not only as food to coastal First Nations, but played an important part in their spiritual and cultural society. Harvest was generally restricted to the lowest tides, although some, such as the Haida, also used a three-pronged spear to access abalone in subtidal areas (Jones 2000). BC’s coastal First Nations express continued concern that the Northern Abalone population is threatened because this situation results in the closure of the food, social and ceremonial fisheries. Interest in food, social and ceremonial fisheries for abalone has provided an incentive for Northern Abalone rebuilding programs in some areas. Some of these programs go beyond the objective of the recovery strategy, but nonetheless support Northern Abalone recovery.

In addition to the concerns of First Nations, the closures of BC’s commercial and recreational abalone fisheries represented significant economic and recreational loss to participants, associated industries and coastal communities. While small recreational and commercial fisheries for Northern Abalone occurred in BC as early as 1900, a commercial dive fishery directed on Northern Abalone began in earnest in 1972. Developing through the 1970s, BC’s commercial fishery peaked in 1977 with landings of 481 t. The majority of harvest occurred in the north and central coast of BCand in the Queen Charlotte Islands (Harbo 1997; Campbell 2000a). The value of the commercial fishery peaked at 1.86 million dollars (landed value) in 1978 (Sloan and Breen 1988). Northern Abalone were also regarded as a gourmet food and recreational divers were known to have had a keen interest in Northern Abalone harvest.

The Northern Abalone (Haliotis kamtschatkana) is the only species of abalone commonly occurring in BC and is the most northerly distributed abalone species in North America.



Existing protection or other status designations

BC’s Northern Abalone fisheries were closed to all users in December 1990 (Fisheries Act). The last commercial fishery for Northern Abalone was in Alaska in 1995. Alaska still has a skin-diving (no surface air supply) recreational fishery where the daily and possession limits are five abalone; a licence is required. Washington and Oregon never had commercial fisheries for Northern Abalone and Washington State closed its recreational abalone fishery in 1994. Currently, Oregon has a very limited recreational fishery for abalone: the catch limit is five abalone/year and the minimum size is 8 inches (200 mm) which effectively precludes any harvest of Northern Abalone as the largest shell length of Northern Abalone ever recorded was 165 mm. California also closed all commercial abalone fisheries in 1997. A skin-diving recreational fishery for Red Abalone north of San Francisco is the only remaining abalone fishery in California.

Northern Abalone was designated as Threatened by COSEWIC in 2000 (Campbell 2000a; Jamieson 2001). In June 2003, Northern Abalone was legally listed and protected as Threatened under Schedule 1 of the Species at Risk Act (SARA). The listing under SARA includes prohibitions for the killing, harming, harassing, possessing, buying or selling of an individual, or its parts (including shell), of a listed species.The existing listing and protection under SARA does not exclude captive-bred populations and SARA’s prohibitions currently apply also to aquaculture-raised abalone.

Several rebuilding projects are currently underway in BC. Adult translocations to increase local density and reproductive potential have been completed on the central coast, southeast Haida Gwaii, and in Barkley Sound, west coast of Vancouver Island. As these studies are ongoing, no published results are available at this time. Juveniles and larvae outplanting from captive-breeding have also taken place in Barkley Sound. As these small animals require several years of growth to be fully available for sampling, results are also pending.

The most effective measure to recover the abalone stock is the maintenance and effective enforcement of the harvest closure. While rebuilding methods, namely outplanting and adult aggregation (wild-to-wild translocations), have shown some promise, their outcomes have often been poor and uncertain (Tegner 2000). In addition, their effects are likely quite localized and are probably not suited for species recovery as a whole.

Northern Abalone is red-listed in BC. Its global and provincial status are G3G4 and S2, respectively (BCConservation Data Centre 2008).

Pinto (i.e., Northern) Abalone were designated as a ‘State Candidate Species’ in Washington in 1998 and were listed as a ‘Species of Concern’ by the National Oceanic and Atmospheric Administration (NOAA) Fisheries in 2004 for protection under the federal Endangered Species Act (NOAA 2008).

The International Union for Conservation of Nature and Natural Resources (IUCN) Species Survival Commission has listed the global status of H. kamtschatkana as endangered (EN A2abd) based on an observed population size reduction of >50% (IUCN2008). Although the observed declines in BC and Washington showed a population size reduction of >80%, the assessment judged that “the historical elimination of Sea Otters led to abnormally large pre-exploitation level [of abalone]” and accordingly reduced the classification from critically endangered.



Technical summary

Range of Occurrence in Canada: Pacific Ocean (coastal BC)

Demographic information

Extent and area information

Number of mature individuals in each population

Quantitative analysis

Threats (actual or imminent, to populations or habitats)

Main threats in order of importance:

• Illegal harvest (actual);
• Low recruitment due to reduced spawner densities (Allee effect) resulting from mortality of reproductive adults from natural causes and illegal harvest (actual);
• Sea Otter predation (actual/imminent);
• Climate change (imminent and indirect, due to impact on kelp which is the primary food source).

Rescue effect (immigration from an outside source)

Current status

Committee on the Status of Endangered Wildlife in Canada (COSEWIC): Endangered 2009
SARA: Threatened 2003 (Schedule 1)
Canada: N2
BC: S2

Status and reasons for designation

Reasons for Designation: Highly valued for its meat, this marine mollusc is patchily distributed along the west coast of Canada. Despite a total moratorium on harvest in 1990, the species was designated as Threatened in 2000. Poaching is the most serious threat and continues to reduce population abundance, particularly the larger, more fecund component; however, all size classes have declined significantly over the past three generations (i.e. since 1978) with mature individuals declining an estimated 88-89%. Low densities may further exacerbate the problem by reducing fertilization success in this broadcast spawner (the Allee effect). Although predators such as the recovering Sea Otter population are not responsible for recently observed declines, they may ultimately influence future abundance of abalone populations.

Applicability of criteria

Criterion A (Declining Total Population): Met Criterion A for Endangered because the reduction in the total number of mature adults over the last 3 generations is estimated to be 88-89%. A2 applies because the reduction, shown by declines in density at index sites monitored regularly over the past 30 years, may not have ceased and may not be reversible (b) and actual or potential levels of exploitation (d) continue. While the main cause of the reduction – the legal fishery – has ceased, the stock has not recovered and is still subject to poaching and increased natural predation from Sea Otters.

Criterion B (Small Distribution, and Decline or Fluctuation): Does not apply because the EO is estimated to be 207 478 km² and the IAO is estimated to be > 2 000 km².

Criterion C (Small Total Population Size and Decline): Does not apply because the estimated effective population size is 420 000.

Criterion D (Very Small Population or Restricted Distribution): D1 does not apply because the estimated effective population size is 420 000. D2 does not apply because the AO is much larger than 20 km² and the number of locations, although not specifically known, is very large.

Criterion E (Quantitative Analysis): Does not apply.



Acknowledgements

The author would like to thank Alan Campbell and Sandie Hankewich for providing useful comments on an earlier draft of this document. The author thanks Kelly Sendall and Lisa Kirkendale for making the Royal British Columbia Museum abalone collection available and for providing photos. All members of the Abalone Recovery Team and Abalone Implementation Group are gratefully acknowledged. Funding was provided by Environment Canada.



Authorities consulted

Aboriginal Traditional Knowledge process and protocol guidelines are being reviewed by Aboriginal Elders and Knowledge Holders for implementation in the COSEWIC species assessment process. Therefore, the Aboriginal Traditional Knowledge (ATK) Subcommittee was unable to assess the methodology, completeness and accuracy of ATK, but are satisfied with the effort made to collect and incorporate ATK and community knowledge in the Northern Abalone status report (Benoit pers. comm. 2008).

Abalone recovery team (2007)

• Alan Campbell, Fisheries and Oceans Canada
• Laurie Convey (Recovery Team Chair), Fisheries and Oceans Canada, Resource Management South Coast Area, 3225 Stephenson Point Rd., Nanaimo B.C.  V9T 1K3.
• Ted Down, Ministry of Environment, Government of British Columbia
• Rick Harbo, Fisheries and Oceans Canada
• Bill Heath, Ministry of Agriculture and Lands, Government of British Columbia
• Heather Holmes, Parks Canada Agency, Pacific Rim National Park Reserve
• Bryan Jubinville, Fisheries and Oceans Canada
• Joanne Lessard, Fisheries and Oceans Canada
• Guy Parker, Fisheries and Oceans Canada

Abalone recovery implementation group (2006-7)

• William Benyon, Metlakatla Fisheries Program
• Julie Carpenter, Heiltsuk Fisheries Program / Heiltsuk Abalone Stewardship Project
• Laurie Convey, Fisheries and Oceans Canada
• Ernie Cooper, Traffic
• Bart DeFreitas, Haida Fisheries Program / Haida Gwaii Abalone Stewards
• Mike Featherstone (alternate Tim Joys), Pacific Urchin Harvesters Association
• Joel Harding (alternate Ernie Mason), Kitasoo Fisheries Program / Kitasoo Abalone Stewardship Project
• Heather Holmes, Parks Canada Agency
• Russ Jones, Haida Fisheries Program / Haida Gwaii Abalone Stewards
• Bryan Jubinville, Fisheries and Oceans Canada
• Lynn Lee, World Wildlife Fund Canada / Haida Gwaii Abalone Stewards
• Joanne Lessard, Fisheries and Oceans Canada
• Doug McCorquodale, Gwa’sala-‘Nakwaxda’xw Nation and Kwakiutl Fisheries Program
• John Richards, Bamfield Huu-ay-aht Community Abalone Project
• Mike Ridsdale, Gitxaala Fisheries Program
• Anne Stewart, Bamfield Marine Sciences Centre
• Blair Stewart, Nisga’a Fisheries Program
• Tomas Tomascik, Parks Canada Agency
• Marty Weinstein, Namgis Fisheries Program
• Guy Whyte, Pacific Trident Fishing
• Ross Wilson, Heiltsuk Fisheries Program / Heiltsuk Abalone Stewardship Project



Information sources

Adkins, B.E. 1996. Abalone surveys in south coast areas during 1982, 1985 and 1986. Canadian Technical Report of Fisheries and Aquatic Sciences 2089: 72-96.

Adkins, B.E., and A.P. Stefanson. 1979. North coast abalone survey in harvested areas, November 1978. Fisheries and Marine Services, Manuscript Report 1500:15 pp.

Allee, W.C., A.E. Emerson, O. Park, T. Park, and K.P. Schmidt. 1949. Principles of Animal Ecology. Saunders, Philadelphia. 837 pp.

Atkins, M., and J. Lessard. 2004. Survey of Northern Abalone, Haliotis kamtschatkana, populations along north-west Vancouver Island, British Columbia, May 2003. Canadian Manuscript Report of Fisheries and Aquatic Sciences 2690:11 pp.

Atkins, M., J. Lessard, and A. Campbell. 2004. Resurvey of Northern Abalone, Haliotis kamtschatkana, populations in Southeast Queen Charlotte Islands, British Columbia, April 2002. Canadian Manuscript Report of Fisheries and Aquatic Sciences 2704:37 pp.

Babcock, R., and J. Keesing. 1999. Fertilization biology of the abalone Haliotis laevigata: laboratory and field studies. Canadian Journal of Fisheries and Aquatic Sciences 56:1668-1678.

BC Conservation Data Centre. 2008. Species Summary: Haliotis kamtschatkana. BC Ministry of Environment. BC Species and Ecosystems Explorer: Species and Ecosystems Search [Accessed February 2008].

Benoit, D., pers. comm. 2008. Email correspondence to J. Smith, September 2008. Member, COSEWIC ATK Subcommittee.

BMSC (Bamfield Marine Science Centre) 2007. Coast Watch Brochure produced by BMSC Education Program.

Boutillier, J.A., W. Carolsfeld, P.A. Breen, and K. Bates. 1984. Abalone survey in the Estevan Group and Aristazabal Island, May 1983. Canadian Manuscript Report of Fisheries and Aquatic Sciences 1747:60 pp.

Boutillier, J.A., W. Carolsfeld, P.A. Breen, S. Farlinger, and K. Bates. 1985. Abalone resurvey in the southeast Queen Charlotte Islands, July 1984. Canadian Manuscript Report of Fisheries and Aquatic Sciences 1818:87 pp.

Breen, P.A. 1980a. Measuring fishing intensity and annual production in the abalone fishery of British Columbia. Canadian Technical Report of Fisheries and Aquatic Sciences 947:49 pp.

Breen, P.A. 1980b. Muscled mollusc: the Northern Abalone. Diver 6(6):26-28.

Breen, P.A. 1986. Management of the British Columbia fishery for Northern Abalone (Haliotis kamtschatkana). Canadian Special Publication of Fisheries and Aquatic Sciences 92:300-312.

Breen, P.A., and B.E. Adkins. 1979. A survey of abalone populations on the east coast of the Queen Charlotte Islands, August 1978. Fisheries and Marine Services, Manuscript Report 1490:125 pp.

Breen, P.A., and B.E. Adkins. 1980a. Observations of abalone populations in Emily Carr Inlet and Lotbinière Bay, April 1980. Canadian Manuscript Report of Fisheries and Aquatic Sciences 1576:17 pp.

Breen, P.A., and B.E. Adkins. 1980b. Spawning in a British Columbia population of Northern Abalone, Haliotis kamtschatkana. Veliger 23:177-179.

Breen, P.A., and B.E. Adkins. 1981. Abalone surveys and tagging conducted during 1979. Canadian Manuscript Report of Fisheries and Aquatic Sciences 1623:88 pp.

Breen, P.A., B.E. Adkins, and G.D. Heritage. 1978a. Observations of abalone and subtidal communities made during a survey of Queen Charlotte Strait and upper Johnstone Strait areas. Fisheries and Marine Services, Manuscript Report 789:91 pp.

Breen, P.A., B.E. Adkins, and P.E. Sprout. 1982a. Abalone populations on the west coast of Banks Island, June 1980. Canadian Manuscript Report of Fisheries and Aquatic Sciences 1640:42 pp.

Breen, P.A., T.A. Carson, J.B. Foster, and E.A. Stewart. 1982b. Changes in subtidal community structure associated with British Columbia sea otter transplants. Marine Ecology - Progress Series 7:13-20.

Breen, P.A., A.P. Stefanson, and B.E. Adkins. 1978b. North coast abalone surveys in harvested areas, spring 1978. Fisheries and Marine Services, Manuscript Report 1480:61 pp.

Brown, L.D. 1991. Genetic variation and population structure in the blacklip abalone, Haliotis rubra. Australian Journal of Marine and Freshwater Research 42:47-90.

Brown, L.D., and N.D. Murray. 1992. Population genetics, gene flow, and stock structure in Haliotis rubra and Haliotis laevigata. pp. 24-33 in Shepherd, S.A., M.J. Tegner, S.A. Guzman del Proo (eds.). Abalone of the World - Biology, Fisheries and Culture. Fishing News Books, Oxford.

Burton, R.S., and M.J. Tegner. 2000. Enhancement of red abalone Haliotis rufescens stocks at San Miguel Island: reassessing a success story. Marine Ecology - Progress Series 202:303-308.

Campbell, A. 2000a. Review of Northern Abalone, Haliotis kamtschatkana, stock status in British Columbia. Canadian Special Publication of Fisheries and Aquatic Sciences 130:41-50.

Campbell, A. (ed.) 2000b. Workshop on Rebuilding Abalone Stocks in British Columbia. Canadian Special Publication of Fisheries and Aquatic Sciences 130:158 pp.

Campbell, A. pers. comm. 2008. Recently retired program head for Northern Abalone and red sea urchin stock assessment. Fisheries and Oceans Canada, Nanaimo, BC.

Campbell, A., D. Brouwer, J. Rogers, and D.C. Miller. 2000. Abalone resurvey in south east Queen Charlotte Islands, 1998. Canadian Manuscript Report of Fisheries and Aquatic Sciences 2528:30 pp.

Campbell, A., and K. Cripps. 1998. Survey of abalone populations at Stryker Island, Tribal Group and Simonds Group, Central Coast of British Columbia, May 1997. Canadian Manuscript Report of Fisheries and Aquatic Sciences 2451:21 pp.

Campbell, A., I. Manley, and W. Carolsfeld. 1992. Size at maturity and fecundity of the abalone, Haliotis kamtschatkana, in northern British Columbia. Canadian Manuscript Report of Fisheries and Aquatic Sciences 2169:47-65.

Campbell, A., I. Winther, B. Adkins, D. Brouwer, and D. Miller. 1998. Survey of the Northern Abalone (Haliotis kamtschatkana) in the central coast of British Columbia, May 1997. Canadian Stock Assessment Secretariat Research Document 1998/89:28 pp.

Carolsfeld, W., S. Farlinger, B.C. Kingzett, N.A. Sloan, and G. Thomas. 1988. Abalone resurvey in the southeast Queen Charlotte Islands, June 1987. Canadian Manuscript Report of Fisheries and Aquatic Sciences 1966:90 pp.

Carpenter, J., pers. comm. 2007. Abalone Recovery Implementation Group meeting November 2007. Biologist, Heiltsuk Fisheries Program, Bella Bella, BC.

Carter, S.K., G.R. VanBlaricom, and B.L. Allen. 2007. Testing the generality of the trophic cascade paradigm for sea otters: a case study with kelp forests in northern Washington, USA. Hydrobiologia 579:233-249.

Clavier, J., and O. Richard. 1986. Estimation du stock naturel d’ormeaux (Haliotis tuberculata) dans la région de Saint-Malo. Revue des Travaux de l’Institut des Pêches Maritimes 48:95-105.

Cooper, J., M. Wieland, and A. Hines. 1977. Subtidal abalone populations in an area inhabited by sea otters. Veliger 20:163-167.

COSEWIC. 2007. COSEWIC Assessment and Update Status Report on the Sea Otter (Enhydra lutris) in Canada (PDF Version, 1095 KB). Committee on the Status of Endangered Wildlife in Canada. Ottawa. Vii + 36 pp. (http://www.sararegistry.gc.ca/virtual_sara/files/cosewic/sr%5Fenhydra%5Flutris%5Fe%2Epdf) [Accessed September 2008]

Cox, K.W. 1962. California abalones, family Haliotidae. Fish Bulletin 118:133 p.

Davies, K., M. Atkins, and J. Lessard. 2006. Survey of Northern Abalone, Haliotis kamtschatkana, populations in Queen Charlotte and Johnstone Straits, British Columbia, May 2004. Canadian Manuscript Report of Fisheries and Aquatic Sciences 2743:17 pp.

Deacon, R.T. 1989. An empirical model of fishery dynamics. Journal of Environmental Economics and Management 16:167-183.

DeFrietas, B., pers. comm. 2007. Abalone Recovery Implementation Group meeting November 2007. Biologist, Haida Fisheries Program, Masset, BC.

del Rio-Portilla, pers. comm. 2008. Email correspondence November 2007. Research scientist, CICESE Acuicultura, Ensenada, México.

De Waal, S., and P. Cook. 2001. Quantifying the physical and biological attributes of successful ocean seeding sites for farm-reared juvenile abalone (Haliotis midae). Journal of Shellfish Research 20:857-861.

Dixon, C.D., R.W. Day, S.M.H. Huchette, and S.A. Shepherd. 2006. Successful seeding of hatchery-produced juvenile greenlip abalone to restore wild stocks. Fisheries Research 78:179-185.

Dowling, M.A., S.J. Hall, and R. McGarvey. 2004. Assessing population sustainability and response to fishing in terms of aggregation structure for greenlip abalone (Haliotis laevigata) fishery management. Canadian Journal of Fisheries and Aquatic Sciences 61:247-259.

Ellis, D.W., and L. Swan. 1981. Teachings of the tides. Uses of marine invertebrates by the Manhousat People. Theytus Books, Nanaimo. 118 pp.

Ellis, D.W., and S. Wilson. 1981. The knowledge and usage of marine invertebrates by the Skidegate Haida people of the Queen Charlotte Islands. Queen Charlotte Islands Museum Society, Monograph Series #1. 40 pp.

Emmett, B., and G.S. Jamieson. 1988. An experimental transplant of Northern Abalone, Haliotis kamtschatkana, in Barkley Sound, British Columbia. Fishery Bulletin (US) 87:95-104.

Fanshawe, S., G.R. VanBlaricom, and A.A. Shelly. 2003. Performance of marine protected areas intended for fishery sustainability: a case study with red abalones and seas otters. Conservation Biology 17:273-283.

Farlinger, S., and K.T. Bates. 1986. Abalone survey in the Estevan Group and Aristazabal Island, June 1985. Canadian Manuscript Report of Fisheries and Aquatic Sciences 1896:45 pp.

Farlinger, S., G.A. Thomas, I. Winther, and W. Carolsfeld. 1991. Abalone resurvey in the Estevan Group and Aristazabal Island, June 1989. Canadian Manuscript Report of Fisheries and Aquatic Sciences 2104:39 pp.

Filion, A., pers. comm. 2008. Scientific and Geomatics Project Officer, Species Assessment Section, COSEWIC Secretariat, Canadian Wildlife Service, Ottawa, ON.

Fisheries and Oceans Canada. 2007. Recovery Strategy for the Northern Abalone (Haliotis kamtschatkana) in Canada. Species at Risk Act Recovery Strategy Series. Fisheries and Oceans Canada, Vancouver. vi + 31 pp. [Accessed January 2008]

Foster, N., pers. comm. 2008. Email correspondence February 2008. Marine Invertebrate Collection, University of Alaska Museum, Fairbanks, Alaska.

Foucher, E., and M.L. Cochard. 2005. Exploitation professionnelle de l’ormeau dans la zone nord du Cotentin. Bilan de la campagne de pêche 2004-2005. 11 pp.

Geiger, D.L. 1998. Recent genera and species of the family Haliotidae (Gastropoda: Vetigastropoda). The Nautilus 111:85-116.

Geiger, D.L.1999. A total evidence cladistic analysis of the family Haliotidae (Gastropoda: Vetigastropoda). Ph.D. Thesis, University of Southern California, Los Angeles. xix + 423 pp.

Geiger, D.L, and G.T. Poppe. 2000. Haliotidae. Conchological Iconography. G.T. Poppe & K. Groh (eds.). Conchbooks, Hackenheim. 135 pp. + 83 pls.

Gruenthal, K.M., and R.S. Burton. 2005. Genetic diversity and species identification in the endangered white abalone (Haliotis sorenseni). Conservation Genetics 6:929-939.

Haaker, P.L., K.C. Henderson, and D.O. Parker. 1986. California abalone. California Fish and Game, Marine Resources Leaflet 11:16 pp.

Haaker, P.L., D.O. Parker, K.C. Barsky, and C.S.Y. Chun. 1998. Growth of red abalone, Haliotis rufescens (Swainson), at Johnsons Lee, Santa Rosa Island, California. Journal of Shellfish Research 17:747-753.

Hankewich, S., and J. Lessard. 2008. Resurvey of Northern Abalone, Haliotis kamtschatkana, populations along the central coast of British Columbia, May 2006. Canadian Manuscript Report of Fisheries and Aquatic Sciences 2838:40 pp.

Hankewich, S., J. Lessard, and E. Grebeldinger. 2008. Resurvey of Northern Abalone, Haliotis kamtschatkana, populations in southeast Queen Charlotte Islands, British Columbia, May 2007. Canadian Manuscript Report of Fisheries and Aquatic Sciences 2839:37 pp.

Harbo, R. 1997. Abalone dive fishery (closed). Canadian Manuscript Report of Fisheries and Aquatic Sciences 2369:86-92.

Harding, J., pers. comm. 2007. Abalone Recovery Implementation Group meeting November 2007. Biologist, Kitasoo Fisheries Program, Klemtu, BC.

Hines, A.H., and J.S. Pearse. 1982. Abalones, shells, and sea otters: dynamics of prey populations in central California. Ecology 63:1547-1560.

Hume, B., pers. comm. 2006. Email correspondence September 2006. Field Supervisor, Special Investigations Unit, DFO Conservation and Protection, Campbell River, BC.

IUCN (International Union for Conservation of Nature). 2008. IUCN Red List of Threatened Species (Haliotis kamtschatkana). [Accessed September 2008].

Jamieson, G.S. 2001. Review of status of Northern Abalone, Haliotis kamtschatkana, in Canada. Canadian Field-Naturalist 115:555-563.

Jamieson, G.S., E.J. Gregr, and C. Robinson. 2004. Northern Abalone case study for the determination of SARA critical habitat. Canadian Science Advice Secretariat Research Document 2004/117:63 pp.

Jones, R. 2000. Haida abalone issues. Canadian Special Publication of Fisheries and Aquatic Sciences 130:5-6.

Jubinville, B. 2000. Enforcing the fishery closure for northern (pinto) abalone (Haliotis kamtschatkana) in British Columbia [Abstract]. Canadian Special Publication of Fisheries and Aquatic Sciences 130:52.

Lee, Y.-H., and V.D. Vacquier. 1995. Evolution and systematics in Haliotidae (Mollusca: Gastropoda): inferences from DNA sequences of sperm lysin. Marine Biology 124:267-278.

Lessard, J., pers. comm. 2008. Report Writer. Abalone Research Biologist, Fisheries and Oceans Canada, Nanaimo, BC.

Lessard, J., M. Atkins, and A. Campbell. 2007a. Resurvey of Northern Abalone, Haliotis kamtschatkana, populations along the central coast of British Columbia, April 2001. Canadian Manuscript Report of Fisheries and Aquatic Sciences 2791:42 pp.

Lessard, J., and A. Campbell. 2007. Describing Northern Abalone, Haliotis kamtschatkana, habitat: focusing rebuilding efforts in British Columbia, Canada. Journal of Shellfish Research 26:677-686.

Lessard, J., A. Campbell, Z. Zhang, L. MacDougall, and S. Hankewich. 2007b. Recovery Potential Assessment for the Northern Abalone, Haliotis kamtschatkana, in Canada. Canadian Science Advice Secretariat Research Document 2007/061:107 pp.

Levitan, D.R., and M.A. Sewell. 1998. Fertilization success in free-spawning marine invertebrates: review of the evidence and fisheries implications. Canadian Special Publication of Fisheries and Aquatic Sciences 125:159-164.

Levitan, D.R., M.A. Sewell, and F.-S. Chia. 1992. How distribution and abundance influence fertilization success in the sea urchin Strongylocentrotus franciscanus. Ecology 73:248-254.

Lowry, L.F., and J.S. Pearse. 1973. Abalones and sea urchins in an area inhabited by sea otters. Marine Biology 23:213-219.

Lucas, B.G., A. Campbell, and D. Brouwer. 2002. Survey of Northern Abalone, Haliotis kamtschatkana, populations at Chrome and southern Denman Island areas, May - June 2000 and May 2001. Canadian Manuscript Report of Fisheries and Aquatic Sciences 2624:13 pp.

McLean, J. 1966. West American prosobranch gastropoda: Superfamilies Patellacae, Pleurotomariacea, and Fissurellacea. Ph.D. Thesis, Stanford University, California, USA. 255 pp.

McShane, P.E. 1992. Early life history of abalone: a review. pp. 120-138 in Shepherd, S.A., M.J. Tegner, and S.A. Guzman del Proo (eds.), Abalone of the World - Biology, Fisheries and Culture. Fishing News Books, Oxford.

McShane, P.E. 1995a. Estimating the abundance of abalone: the importance of patch size. Marine and Freshwater Research 46:657-662.

McShane, P.E. 1995b. Recruitment variation in abalone: its importance to fisheries management. Marine and Freshwater Research 46:555-570.

McShane, P.E., K.P. Black, and M.G. Smith. 1988. Recruitment processes in Haliotis rubra (Mollusca: Gastropoda) and regional hydrodynamics in southeast Australia imply localised dispersal of larvae. Journal of Experimental Marine Biology and Ecology 124:175-203.

Micheli, F., A.O. Shelton, S.M. Bushinsky, A.L. Chiu, A.J. Haupt, K.W. Heiman, C.V. Kappel, M.C. Lynch, R.G. Martone, R.B. Dunbar, and J. Watanbe. 2008. Persistence of depleted abalones in marine reserves of central California. Biological Conservation 141:1078-1090.

Montfort, D. de.1810. Conchyologie Systématique 2:1-676.

Morse, A.N.C., and D.E. Morse. 1984. Recruitment and metamorphosis of Haliotis larvae induced by molecules uniquely available at the surface of crustose red algae. Journal of Experimental Marine Biology and Ecology 75:191-215.

Nichol, L.M., J.C. Watson, G.M. Ellis, and J.K.B. Ford. 2005. An assessment of abundance and growth of the sea otter population (Enhydra lutris) in British Columbia. Canadian Science Advice Secretariat Research Document 2005/094:22 pp.

NOAA (National Oceanic and Atmospheric Administration). 2008. Proactive Conservation Program: Species of Concern. [Accessed September 2008]

O’Clair, C.E., pers. comm. 2008. Email correspondence January 2008. National Marine Fisheries Service, Auke Bay Laboratory, Juneau, Alaska.

O'Clair, R.M., and C.E. O'Clair. 1998. Southeast Alaska's Rock Shores. Animals. Plant Press, Auke Bay, Alaska. 564 pp.

Paul, A.J., and J.M. Paul. 1998. Respiration rate and thermal tolerances of pinto abalone (Haliotis kamtschatkana). Journal of Shellfish Research 17:743-745.

Paul, A.J., and J.M. Paul. 2000. Longevity of captive pinto abalones, Haliotis kamtschatkana. Alaska Fishery Research Bulletin 7:51-53.

Paul, A.J., J.M. Paul, D.W. Hood, and R.A. Neve. 1977. Observations on food preferences, daily ration requirements and growth of Haliotis kamtschatkana Jonas in captivity. Veliger 19:303-308.

Pearce, C.M., P. Ågerup, A. Alabi, D. Renfrew, J. Rosser, G. Whyte, and F. Yuan. 2003. Recent progress in hatchery production of pinto abalone, Haliotis kamtschatkana, in British Columbia, Canada. Canadian Technical Report of Fisheries and Aquatic Sciences 2482:29-44.

Pollard, S. 1992. Red abalone, Haliotis rufescens, relative impacts of recreational fisheries and sea otter predation on the abundance, size frequency, and microhabitat distribution of red abalone populations in central and northern California. M.Sc. Thesis, University of Santa Cruz, California. 67 pp.

Ponder, W.F., and D.R. Lindberg. 1997. Towards a phylogeny of gastropod molluscs: using morphological characters. Zoological Journal of the Linnean Society 119:83-265.

Prince, J.D., T.L. Sellers, W.B. Ford, and S.R. Talbot. 1987. Experimental evidence for limited dispersal of haliotid larvae (genus Haliotis; Molluscs: Gastropoda). Journal of Experimental Marine Biology and Ecology 106:243-263.

Quayle, D.B. 1962. Abalones in British Columbia. Progress Reports of the Pacific Coast Stations of the Fisheries Research Board of Canada 114:9-12.

Quayle, D.B. 1971. Growth, morphometry and breeding in the British Columbia abalone (Haliotis kamtschatkana Jonas). Fisheries Research Board, Canadian Technical Report Series 279:84 pp.

Reece, G. 2000. Tsimshian Nation abalone issues. Canadian Special Publication of Fisheries and Aquatic Sciences 130:4.

Roberts, R. 2001. A review of settlement cues for larval abalone (Haliotis spp.). Journal of Shellfish Research 20:571-586.

Roberts, R.D., T. Kawamura, and H. Takami. 1999. Abalone recruitment - an overview of some recent research in New Zealand, Australia, and Japan. Bulletin Tohoku National Fisheries Research Institute 62:95-107.

Rogers-Bennett, L. 2007. Is climate change contributing to range reductions and localized extinctions in northern (Haliotis kamtschatkana) and flat (Haliotis walallensis) abalones? Bulletin of Marine Sciences 81:283-296.

Rogers-Bennett, L., and J.S. Pearse. 1998. Experimental seeding of hatchery-reared juvenile red abalone in Northern California. Journal of Shellfish Research 17:877-880.

Rothaus, D.P., B. Vadopalas, and C.S. Friedman. 2008. Precipitous declines in pinto abalone (Haliotis kamtschatkana kamtschatkana) abundance in the San Juan Archipelago, Washington USA, despite statewide fishery closure. Canadian Journal of Fisheries and Aquatic Sciences 65:2703-2711.

Schield, D.R. 1993. Experimental evaluation of commercial-scale enhancement of abalone, Haliotis iris, populations in New Zealand. Marine Ecology – Progress Series 97:167-181.

Shackell, N.L., K. T Frank, and D.W. Brickman. 2005. Range contraction may not always predict core areas: an example from marine fish. Ecological Applications 15:1440-1449.

Shepherd, S.A., and P.A. Breen. 1992. Mortality in abalone: its estimation, variability and causes. pp.276-304 in Shepherd, S.A., M.J. Tegner, S.A. Guzman del Proo (eds.), Abalone of the World - Biology, Fisheries and Culture. Fishing News Books, Oxford.

Shepherd, S.A., and L.D. Brown. 1993. What is an abalone stock: implications for the role of refugia in conservation. Canadian Journal of Fisheries and Aquatic Sciences 50:2001-2009.

Shepherd, S.A., and D. Partington. 1995. Studies on southern Australian abalone (genus Haliotis). XVI. Recruitment, habitat and stock relations. Marine and Freshwater Research 46:669-680.

Shepherd, S.A., D. Woodby, J.M. Rumble, and M. Avalos-Borja. 2000. Microstructure, chronology and growth of the pinto abalone, Haliotis kamtschatkana, in Alaska. Journal of Shellfish Research 19:219-228.

Sinclair, A.R.E., and A.E. Byrom. 2006. Understanding ecosystem dynamics for conservation of biota. Journal of Animal Ecology 75:64-79.

Sloan, N.A. 2003. Evidence of California-area abalone shell in Haida trade and culture. Canadian Journal of Archaeology 27:273-286.

Sloan, N.A., and P.A. Breen. 1988. Northern Abalone, Haliotis kamtschatkana, in British Columbia: fisheries and synopsis of life history information. Canadian Special Publication of Fisheries and Aquatic Sciences 103:46 pp.

Sm’algyax Language Committee. 2005. Suwilaawksa Sm’algyax: Learning Sm’algyax – A Guide to Accompany Sm’algyax Language CDs. Ts’msyen Sm’algyax Language Authority. School District 52, Prince Rupert, B.C.

Steneck, R.S. 1986. The ecology of coralline algal crusts: convergent patterns and adaptive strategies. Annual Review of Ecology and Systematics 17: 273-303.

Stewart, B., pers. comm. 2007. Abalone Recovery Implementation Group meeting November 2007. Manager, Nisga’a Fisheries Program, New Aiyansh, BC.

Stewart, H. 1977. Indian Fishing. Early methods on the northwest coast. Douglas McIntyre, Vancouver/Toronto. University of Washington Press, Seattle, Washington. 181 pp.

Tabata, S. 1985. El Niño effects along and off the Pacific Coast of Canada during 1982-1983. pp.85-118 in El Niño North: Niño effects in the Eastern Subarctic Pacific Ocean. Wooster, W.S. and D.L. Fluharty (eds.). Washington Sea Grant Program: Washington.

Tegner, M.J. 1993. Southern California abalones: can stocks be rebuilt using marine harvest refugia? Canadian Journal of Fisheries and Aquatic Sciences 50:2010-2018.

Tegner, M.J. 2000. Abalone (Haliotis spp.) enhancement in California: what we've learned and where we go from here. Canadian Special Publication of Fisheries and Aquatic Sciences 130:61-71.

Tegner, M.J., and R.A. Butler. 1985. Drift-tube study of the dispersal potential of green abalone (Haliotis fulgens) larvae in the southern California Bight: implications for the recovery of depleted populations. Marine Ecology - Progress Series 26:73-84.

Tegner, M.J., P.K. Dayton, P.B. Edwards, and K.L. Riser. 1996. Is there evidence for long-term climatic change in southern California kelp forests? California Cooperative Oceanic Fisheries Investigation Report 37:111-126.

Tegner, M.J., P.L. Haaker, K.L. Riser, and L.I. Vilchis. 2001. Climate variability, kelp forests, and the southern California red abalone fishery. Journal of Shellfish Research 20:755-763.

Thomas, G., and A. Campbell. 1996. Abalone resurvey in Aristazabal Island, the Estevan Group and Banks Island, June 1993. Canadian Technical Report of Fisheries and Aquatic Sciences 2089:97-109.

Thomas, G., S. Farlinger, and W. Carolsfeld. 1990. Abalone resurvey in the southeast Queen Charlotte Islands in 1990. Canadian Manuscript Report of Fisheries and Aquatic Sciences 2099:66-82.

Thomson, W.F. 1914. Report on the abalones of British Columbia (Haliotis gigantae, Chemnitz). [=H. kamtschatkana Jonas] Report for the British Columbia Commissioner of Fisheries 1913:126-130.

Tomascik, T., and H. Holmes. 2003. Distribution and abundance of Haliotis kamtschatkana in relation to habitat, competitors and predators in the Broken Group Islands, Pacific Rim National Park Reserve of Canada. Journal of Shellfish Research 22:831-838.

Uchino, K., T. Simizu, T. Tanaka, and T. Shibata. 2004. Abalone resource decline and recovery attempt in Chiba Prefecture, Japan. Journal of Shellfish Research 23:1219-1222.

Vilchis, L.I., M.J. Tegner, J.D. Moore, C.S. Friedman, K.L. Riser, T.T. Robbins, and P.K. Dayton. 2005. Ocean warming effects on growth, reproduction and survivorship of southern California abalone. Ecological Applications 15:469-480.

Wallace, S.S. 1999. Evaluating the effects of three forms of marine reserve on Northern Abalone populations in British Columbia, Canada. Conservation Biology 13:882-887.

Watson, J. 1993. The effects of sea otter (Enhydra lutris) foraging on shallow rocky communities off northwestern Vancouver Island, British Columbia. Ph.D., University of California, Santa Cruz. 169 pp.

Watson, J. 2000. The effects of sea otters (Enhydra lutris) on abalone (Haliotis spp.) populations. Canadian Special Publication of Fisheries and Aquatic Sciences 130:123-132.

Watson, J.C., G.M. Ellis, T.G. Smith, and J.K.B. Ford. 1997. Updated status of the sea otter, Enhydra lutris, in Canada. Canadian Field-Naturalist 111:277-286.

Wendell, F. 1994. Relationship between sea otter range expansion and red abalone abundance and size distribution in central California. California Fish and Game 80:45-56.

Wing, B., pers. comm. 2008. Email correspondence Febuary 2008. Curator, Reference Collections, National Marine Fisheries Service, Auke Bay Laboratory, Juneau, Alaska.

Winther, I., A. Campbell, G.A. Thomas, B.E. Adkins, and B.G. Clapp. 1995. Abalone resurvey in the southeast Queen Charlotte Islands in 1994. Canadian Manuscript Report of Fisheries and Aquatic Sciences 2273:43 pp.

Withler, R.E. 2000. Genetic tools for identification and conservation of exploited abalone (Haliotis spp.) species. Canadian Special Publication of Fisheries and Aquatic Sciences 130:101-110.

Withler, R., pers. comm. 2008. Email correspondence February 2008. Geneticist, Fisheries and Oceans Canada, Nanaimo, BC.

Withler, R.E., A. Campbell, S. Li, K.M. Miller, D. Brouwer, and B.G. Lucas. 2001. High levels of genetic variation in Northern Abalone Haliotis kamtschatkana of British Columbia. Canadian Science Advice Secretariat Research Document 2001/097:27 pp.

Withler, R.E., A. Campbell, S. Li, K.M. Miller, D. Brouwer, K.J. Supernault, and K.M. Miller. 2003. Implications of high levels of genetic diversity and weak population structure for the rebuilding of Northern Abalone in British Columbia, Canada. Journal of Shellfish Research 22:839-847.

Woodby, D., R. Larson, and J. Rumble. 2000. Decline of the Alaska abalone (Haliotis spp.) fishery and prospects for rebuilding the stock. Canadian Special Publication of Fisheries and Aquatic Sciences 130:25-31.

Zhang, Z., A. Campbell, and J. Lessard. 2007. Modelling Northern Abalone, Haliotis kamtschatkana, population stocks and recruitment in British Columbia. Journal of Shellfish Research 26:1099-1107.



Biographical summary of report writer

Joanne Lessard has worked exclusively as the abalone research biologist for the department of Fisheries and Oceans Canada since September 2002. She sits on the Abalone Recovery Team which now assumes a more administrative function as the implementation of the recovery strategy and action plan are now overseen by the Abalone Implementation Group for which she is the Fisheries and Oceans Canada Science representative. She is also chair of the Northern Abalone research and recovery sub-group of the recently formed Transboundary Recovery Abalone Group, which strives to support collaboration and information sharing throughout the global range of Northern Abalone. As the Fisheries and Oceans Canada abalone biologist she develops, plans and participates in field research as well as provides science support for community-based rebuilding projects. She has authored and co-authored several primary publications on Northern Abalone biology as well as overseen the publication of all the recent survey results. Prior to September 2002, she worked on the stock assessment and habitat of several marine invertebrate species in the Pacific Region, notably Red Sea Urchins which share similar habitats as Northern Abalone. She has an M.Sc. in Zoology from the University of British Columbia and completed her B.Sc. in Biology in 1991 at the Université Laval, Québec.



Collections examined

Royal British Columbia Museum, Victoria, BC.
