Draft screening assessment Acetamide, N-(4-ethoxyphenyl)- (Phenacetin)

Chemical Abstracts Service Registry Number 62-44-2

Environment and Climate Change Canada
Health Canada

April 2017

(PDF Format - 660 KB)

Table of contents

• Synopsis
• 1. Introduction
• 2. Identity of substances
• 3. Physical and chemical properties
• 4. Sources and uses
• 5. Potential to cause ecological harm
  • 5.1 Characterization of ecological risk
• 6. Potential to cause harm to human health
  • 6.1 Exposure assessment
  • 6.2 Health effects assessment
    • 6.2.1 Toxicokinetics
    • 6.2.2 Acute toxicity
    • 6.2.3 Repeat-dose toxicity
    • 6.2.4 Developmental and reproductive toxicity
    • 6.2.5 Genotoxicity and carcinogenicity
  • 6.3 Characterization of ecological risk
  • 6.4 Uncertainties in evaluation of risk to human health
• 7. Conclusion
• References
• Appendices
  • Appendix A – Upper-bounding estimated exposure from use of hair dye products
  • Appendix B - Calculation of carcinogenic risk

List of tables

• Table 2-1. Substance identity
• Table 3-1. Experimental or estimated physical and chemical property values (at standard temperature and pressure) for phenacetin
• Table 6-1. Estimated upper bounding dermal surface load from the use of phenacetin-containing hair dye products
• Table 6-2. Estimated systemic exposure via the dermal route from the use of phenacetin-containing hair dye products
• Table 6-3. Upper-bounding estimates of exposure and resulting margins of exposure

Synopsis

Pursuant to section 74 of the Canadian Environmental Protection Act, 1999 (CEPA), the Minister of Environment and the Minister of Health have conducted a screening assessment of acetamide, N-(4-ethoxyphenyl)-, hereinafter referred to as phenacetin. The Chemical Abstracts Service Registry Number (CAS RN^Footnote1) for phenacetin is 62-44-2. This substance is among those substances identified as priorities for assessment as it met categorization criteria under subsection 73(1) of CEPA.

In 2008, there were no reports of manufacture or import above the reporting threshold of 100 kg in Canada, although it was reported as being imported into Canada in quantities below or equal to the reporting threshold. Phenacetin was formerly used as an analgesic and antipyretic but has not been used in Canada as a prescription or non-prescription since 1973. It is used primarily as a laboratory reagent and in a small number of oxidative hair dye preparations, where it functions as a stabilizer for hydrogen peroxide.

The ecological risk of phenacetin was characterized using the ecological risk classification of organic substances (ERC). The ERC is a risk-based approach that employs multiple metrics for both hazard and exposure based on weighted consideration of multiple lines of evidence for determining risk classification. Hazard profiles are established principally on the basis of metrics regarding mode of toxic action, chemical reactivity, food web-derived internal toxicity thresholds, bioavailability, and chemical and biological activity. Metrics considered in the exposure profiles include potential emission rate, overall persistence and long-range transport potential. A risk matrix is used to assign a low, moderate or high level of potential concern for substances based on their hazard and exposure profiles. The ERC identified phenacetin as having low potential to cause ecological harm.

Considering all available lines of evidence presented in this draft screening assessment, there is low risk of harm to organisms and the broader integrity of the environment from phenacetin. It is proposed to conclude that phenacetin does not meet the criteria under paragraphs 64(a) or (b) of CEPA as it is not entering the environment in a quantity or concentration or under conditions that have or may have an immediate or long-term harmful effect on the environment or its biological diversity or that constitute or may constitute a danger to the environment on which life depends.

For the general population of Canada, potential exposures to phenacetin were estimated from dermal contact with the scalp during the use of hair dyes.

The critical effect for risk characterization was determined to be carcinogenicity, principally on the basis of the International Agency for Research on Cancer (IARC) conclusion that there is sufficient evidence that phenacetin is carcinogenic to humans and experimental studies. Non-cancer effects, including nephropathy and hematotoxicity, have also been observed in humans and laboratory studies. Margins between estimates of exposure and critical effect levels observed in animal studies are considered adequate to address uncertainties in the health effects and exposure databases for both cancer and non-cancer endpoints.

Based on the information presented in this draft screening assessment, it is proposed to conclude that phenacetin does not meet the criteria under paragraph 64(c) of CEPA as it is not entering the environment in a quantity or concentration or under conditions that constitute or may constitute a danger in Canada to human life or health.

It is proposed to conclude that phenacetin does not meet any of the criteria under section 64 of CEPA.

1. Introduction

Pursuant to section 74 of the Canadian Environmental Protection Act, 1999 (CEPA) (Canada 1999), the Minister of Environment and the Minister of Health have conducted a screening assessment of Acetamide, N-(4-ethoxyphenyl)-(herein referred to as phenacetin). This substance was identified as a priority for assessment under Canada's Chemicals Management Plan (CMP) because it met categorization criteria under subsection 73(1) of CEPA (ECCC and HC [modified 2007]).

The ecological risk of phenacetin was characterized using the ecological risk classification of organic substances (ERC) (ECCC 2016a). The ERC describes the hazard of a substance using key metrics including mode of action, chemical reactivity, food-web derived internal toxicity, bioavailability, and chemical and biological activity and considers the possible exposure of organisms in the aquatic and terrestrial environments on the basis of factors including potential emission rates, overall persistence and long-range transport potential in air. The various lines of evidence are combined to identify substances as warranting further evaluation of their potential to cause harm to the environment or as having a low likelihood of causing harm to the environment.

The substance currently being evaluated was previously reviewed internationally through the International Agency for Research on Cancer (IARC) Monographs Programme and there is a recent (2012)IARC Monograph available.These assessments undergo rigorous review and endorsement by international government authorities. Health Canada considers these assessments as reliable. IARC monograph 100A ‘Phenacetin' was used to inform this assessment. The US EPA (2002) has also assessed phenacetin and concluded that it is a "probable human carcinogen". Likewise, the US National Toxicology Program has concluded that phenacetin is "reasonably anticipated to be a human carcinogen" (US NTP 2014).

This draft screening assessment includes consideration of information on chemical properties, environmental fate, hazards, uses and exposure, including additional information submitted by stakeholders. Relevant data were identified and targeted literature searches were conducted up to March 2016. Empirical data from key studies as well as some results from models were used to reach the proposed conclusions. When available and relevant, information presented in assessments from other jurisdictions was considered.

This draft screening assessment was prepared by staff in the Product Safety Program at Health Canada and the CEPA Risk Assessment Program at Environment and Climate Change Canada and incorporates input from other programs within these departments. Comments on the ERC approach and results were received from Dr. Jon Arnot (ARC Arnot Research and Consulting) and Mr. Geoff Granville (G C Granville Consulting Corp.). Additionally, the ERC document was subjected to a 60-day public comment period. The human health portion of this assessment has undergone external review and/or consultation. Comments on the technical portions relevant to human health were received from Dr. John Reichard (Department of Environmental Health, College of Medicine, University of Cincinnati), Dr. Jennifer Sahmel (Cardno Chemrisk), and Dr. Patricia McGinnis (York & Associates). While external comments were taken into consideration, the final content and outcome of the screening assessment remain the responsibility of Environment and Climate Change Canada and Health Canada.

This draft screening assessment focuses on information critical to determining whether a substance meets the criteria as set out in section 64 of CEPA, by examining scientific information and incorporating a weight of evidence approach and precaution^Footnote2. The draft screening assessment presents the critical information and considerations upon which the proposed conclusion is made.

2. Identity of substances

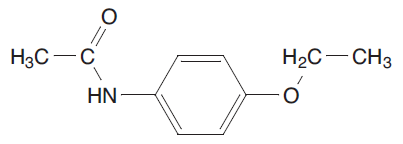

The Chemical Abstracts Service Registry Number (CAS RN^Footnote3), Domestic Substances List (DSL) name and common name for this substance are presented in Table 2-1.

Synonyms: Acetamide, N-(4-ethoxyphenyl)-; p-Acetophenetidide; 4'-Ethoxyacetanilide; 4-(Acetylamino)phenetole; 4-Ethoxy-1-acetylaminobenzene; 4-Ethoxyacetanilide; Aceto-4-phenetidine; Acetophenetidin; Acetophenetidine; Acetophenetin; Acetparaphenetidine; Acetphenetidin; N-(4-Ethoxyphenyl)acetamide; N-Acetyl-4-ethoxyaniline; N-Acetyl-p-ethoxyaniline; N-Acetyl-p-phenetidine; p-Ethoxyacetanilide; Phenacetine; Phenidin; Phenin (STN 2016); 1-Acetamido-4-ethoxybenzene; Acet-p-phenalide; Acetanilide, 4'-ethoxy-; Acetic acid amide, N-(4-ethoxyphenyl)-; Aceto-para-phenalide; Aceto-para-phenetidide; Acetylphenetidin; N-Acetyl-para-phenetidine; N-para-Ethoxyphenylacetamide; p-Acetophenetide; p-Acetophenetidine; p-Acetphenetidin; p-Phenetidine, N-acetyl-; para-Acetophenetidide; para-Acetophenetidine; para-Acetphenetidin; para-Ethoxyacetanilide; para-Phenacetin; Paracetophenetidin; Phenacet; Phenacetinum; Phenacitin; Phenazetina (ChemIDplus 2016).

3. Physical and chemical properties

A summary of physical and chemical properties of phenacetin is presented in Table 3-1. When experimental information was limited or not available for a property, data from quantitative structure-activity relationship ((Q)SAR) models were used to generate predicted values for the substance. Additional physical and chemical properties are presented in ECCC (2016b).

Abbreviations: K_ow, octanol–water partition coefficient; K_oc, organic carbon–water partition coefficient; pKa, acid dissociation constant.

4. Sources and uses

Phenacetin was included in a survey issued pursuant to section 71 of CEPA. For the 2008 calendar year, there were no reports of manufacture or import into Canada above the reporting threshold of 100 kg^Footnote4. It was, however, reported as being imported into Canada in quantities below or equal to the reporting threshold. Based on survey results for the 2008 calendar year, phenacetin is used in Canada as a laboratory substance (Environment Canada 2009), although this use is not expected to result in general population exposure.

Phenacetin is listed in the Natural Health Products Ingredients Database (NHPID) with a non-NHP role (as it is present on the Prescription Drug List) as well as a homeopathic substance (e.g., as phenacetinum). It is listed in the Licensed Natural Health Products Database (LNHPD) as being present in a limited number of homeopathic medicines licensed as natural health products (NHPID 2016; LNHPD 2016).

Notifications submitted under the Cosmetic Regulations to Health Canada identified, phenacetin as being present in cosmetic products. Phenacetin is listed in the Personal Care Products Council's International Nomenclature of Cosmetic Ingredients (INCI) dictionary with no stated function, although it is reported elsewhere to be used as a stabilizer for hydrogen peroxide (IARC 2012). Product categories indicated include: hair bleaches, hair coloring preparations, hair shampoos (coloring), and permanent waves (PCPC 2016).

Phenacetin had a long history of use as an analgesic and antipyretic before being withdrawn from the market due to indications of nephropathy and increased risk of certain cancers in chronic, heavy users. In Canada, phenacetin was withdrawn from the market in June 1973 (Lexchin 2005) although it remains on the Prescription Drug List for human and veterinary use (effective date December, 19 2013) (Health Canada 2015). There are currently no marketed prescription drug products in Canada that contain phenacetin.

The US Code of Federal Regulations Title 21 (21 CFR) indicates that drug products containing phenacetin were withdrawn from the US market effective November 4, 1983 for reasons of safety and effectiveness (21 CFR 216.24) (US FDA 1983). The basis of the withdrawal is "phenacetin's high potential for misuse and its unfavourable benefit-to-risk ratio when incorporated in analgesic combinations which are then subject to excessive chronic use".

5. Potential to cause ecological harm

5.1 Characterization of ecological risk

The ecological risk of phenacetin was characterized using the ecological risk classification of organic substances (ERC) (ECCC 2016a). The ERC is a risk-based approach that employs multiple metrics for both hazard potency and exposure based on weighted consideration of multiple lines of evidence for determining risk classification. The various lines of evidence are combined to discriminate between substances of lower or higher potency and lower or higher potential for exposure in various media. This approach reduces the overall uncertainty with risk characterization compared to an approach that relies on a single metric in a single medium (e.g., LC₅₀) for characterization. Section 5 summarizes the approach, which is described in detail in ECCC (2016a).

Data on physical-chemical properties, fate (chemical half-lives in various media and biota, partition coefficients, fish bioconcentration), acute fish ecotoxicity, and chemical import or manufacture volume in Canada were collected from scientific literature, from available empirical databases (e.g., OECD QSAR Toolbox), and from responses to surveys under section 71 of CEPA, or they were generated using selected Quantitative Structure-Activity Relationship (QSAR) or mass-balance fate and bioaccumulation models. These data were used as inputs to other mass-balance models or to complete the substance hazard and exposure profiles.

Hazard profiles based principally on metrics regarding mode of toxic action, chemical reactivity, food web-derived internal toxicity thresholds, bioavailability, and chemical and biological activity were established. Exposure profiles were also established using multiple metrics including potential emission rate, overall persistence, and long-range transport potential. Hazard and exposure profiles were compared to decision criteria in order to classify the hazard and exposure potential for each organic substance as low, moderate, or high. Additional rules were applied (e.g., classification consistency, margin of exposure) to refine the preliminary classifications of hazard or exposure.

A risk matrix was used to assign a low, moderate or high classification of potential risk for each substance based on its hazard and exposure classifications. ERC classifications of potential risk were verified using a two-step approach. The first step adjusted the risk classification outcomes from moderate or high to low for substances which had a low estimated rate of emission to water after wastewater treatment, representing a low potential for exposure. The second step reviewed low risk potential classification outcomes using relatively conservative, local-scale (i.e., in the area immediately surrounding a point-source of discharge) risk scenarios, designed to be protective of the environment, to determine whether the classification of potential risk should be increased.

ERC uses a weighted approach to minimize the potential for both over- and under-classification of hazard and exposure and subsequent risk. The balanced approaches for dealing with uncertainties are described in greater detail in ECCC 2016a. The following describes two of the more substantial areas of uncertainty. Error with empirical or modeled acute toxicity values could result in changes in classification of hazard, particularly metrics relying on tissue residue values (i.e., mode of toxic action), many of which are predicted values from QSAR models. However, the impact of this error is mitigated by the fact that overestimation of median lethality will result in a conservative (protective) tissue residue used for critical body residue (CBR) analysis. Associated with underestimation of acute toxicity will be mitigated through the use of other hazard metrics, such as structural profiling of mode of action, reactivity and/or estrogen-binding affinity. Changes or errors in chemical quantity could result in differences in classification of exposure as the exposure and risk classifications are highly sensitive to emission rate and use quantity. The ERC classifications thus reflect exposure and risk in Canada based on what is believed to be the current use quantity and may not reflect future trends.

Critical data and considerations used to develop the substance-specific profiles for phenacetin and the hazard, exposure and risk classification results are presented in ECCC (2016b).

Because of low hazard and low exposure classifications for phenacetin obtained using ERC, this substance was classified as having a low potential for ecological risk. It is therefore unlikely that these substances result in concerns for organisms or the broader integrity of the environment in Canada.

6. Potential to cause harm to human health

6.1 Exposure assessment

Between January 2013 and January 2016, phenacetin was notified as being present in 11 cosmetics in Canada. All are hair colour products (1 temporary, 10 permanent) in which the ingredient is present at a concentration of 0.3% or less. Assuming a maximum phenacetin concentration of 0.3%, an area of skin exposed corresponding to the surface area of the adult scalp, and a retention coefficient of 10% to account for the fact that most of the product will not come in contact with skin when used as intended^Footnote5, a per event upper bounding surface load of 30 μg/cm² phenacetin was estimated (Table 6-1).

^a The maximum concentration was determined on the basis of notifications to Health Canada under the Cosmetic Regulations. Frequency, exposed area and product amount applied are from the RIVM Cosmetics Fact Sheet (RIVM 2006). The retention coefficient is as recommended by the SCCNFP (2000).

As no dermal penetration studies for phenacetin were identified, systemic exposure via the dermal route was estimated using an established predictive algorithm to derive the maximum skin flux, or J_max (Williams et al. 2016). J_max is considered a conservative approach to estimating internal dose as the maximum flux at which a chemical can cross a unit area of skin (theoretically achieved as a saturated solution or in neat chemical form) defines the highest potential exposure risk for a chemical (IPCS 2006). In order to estimate J_max, the model of Potts and Guy (1992) was used to calculate the skin permeability coefficient, kp (in cm h^-1), followed by the Cleek and Bunge (1993) modification (see Appendix A for details). J_max was determined to be 2.01 μg/cm²;/h, yielding a per event systemic exposure of 0.011 mg/kg bw (Table 6-2). As phenacetin has a very low vapour pressure (6.29 x 10^-7 mm Hg at 25°C), inhalation exposure during hair dye application is considered negligible relative to dermal exposure.

^a Based on the RIVM Cosmetics Fact Sheet (RIVM 2006) and Health Canada (1998).

Empirical data on concentrations of phenacetin in environmental media in Canada were not identified, but are expected to be negligible. Phenacetin is not expected to be found in food or beverages.

Due to the limited number of licensed natural health products and their nature as homeopathic medicines, exposure to the general population of Canada from the use of these products is expected to be minimal. The minimum homeopathic potency currently allowed in homeopathic medicines licensed as natural health products, based on the Homeopathic Pharmacopoeia of United States as outlined in the NHPID, is 6X, which is equivalent to a maximum concentration of approximately 10^-6 g/mL (NHPID 2016).

6.2 Health effects assessment

6.2.1 Toxicokinetics

The metabolism of phenacetin has been well characterized in both humans and laboratory animals (see for example Brodie and Axelrod 1949; Smith and Timbrell 1974; Nelson et al. 1981; Hinson 1983; Veronese et al. 1985; Fukami and Yokoi 2012). First-pass metabolism is extensive, such that bioavailability of the parent compound is trivial via the oral route (Krieger Research Center 2012). Metabolic pathways for phenacetin involve de-ethylation, N-deacetylation and ring hydroxylation. Although phenacetin is biotransformed to at least a dozen different metabolites, the main metabolic route is oxidative de-ethylation primarily by CYP1A2, giving rise to the pharmacologically-active metabolite n-acetyl-para-aminophenol (acetaminophen). In rats, rabbits, guinea pigs and ferrets orally administered 125 mg/kg bw phenacetin, 63, 57, 81 and 47% of the dose, respectively, was excreted as acetaminophen (free or conjugated as the sulfate or glucuronide) (IARC 1980). In humans, it is estimated that 75 to 80% of orally administered phenacetin is rapidly metabolized to acetaminophen in normal individuals, with less than 1% of the parent compound excreted unchanged in the urine (Insel 1993).

A secondary metabolic pathway for phenacetin involves hydrolysis to p-phenetidine by arylacetamide deacetylase (AADAC), a microsomal serine esterase expressed in liver and gastrointestinal tissues. p-Phenetidine in turn may be further metabolized to the arylhydroxylamine metabolite N-hydroxyphenetidine, which is believed to be the proximate mutagenic metabolite that also mediates the nephrotoxicity and hematotoxicity of the parent compound. CYP1A2 has a much greater affinity for phenacetin than does AADAC (Km = 31 μM for CYP1A2 versus 1.82 mM for AADAC) (Venkatakrishnan et al. 1998; Watanabe et al. 2010), although RNA expression in liver is similar for the two enzymes. Therefore, lower peak phenacetin levels would generally favor the high-affinity metabolic pathway (CYP1A2), while high peak blood levels could favor a greater contribution by the low-affinity pathway (AADAC). CYP1A2 follows Michaelis-Menten kinetics, which assumes: (1) a single binding site for the substrate at the active site of the enzyme; and (2) metabolite formation following a hyperbolically saturating empirical model. The Km is the concentration of substrate at which half the maximal reaction velocity (Vmax, or the point at which CYP1A2 becomes saturated with phenacetin) is achieved. Canney and colleagues (1976) have shown that in normal volunteers, a 900-mg oral dose of phenacetin results in average peak plasma concentrations of phenacetin of 1,628 ng/ml (equivalent to 9.1 μM), which is well below the Km of 31 μM, indicating this dose is insufficient to saturate the enzyme. It has been estimated that even at a substrate concentration of 100 μM, CYP1A2 would account for 86% of net reaction velocity (Venkatakrishnan et al. 1998). Other cytochrome P450 isoforms, such as CYP2E1, are also capable of oxidizing phenacetin, albeit with a lower affinity than CYP1A2.

Following oral administration of phenacetin in humans, peak plasma concentrations of acetaminophen derived from phenacetin de-ethylation occur in 1-2 hours (Insel 1993). No data concerning the systemic availability of phenacetin via the dermal route were identified. Owing to its physicochemical properties, including molecular weight, log Ko/w, and aqueous solubility, phenacetin is expected to be a "medium high" penetrant according to the criteria of Kroes et al. (2007). Human skin, however, lacks significant expression of CYP1A2, the primary cytochrome P450 responsible for the metabolism of phenacetin via the oral route (Yengi et al. 2003), as well as AADAC, the enzyme that generates the toxic metabolite N-hydroxy p-phenetidine (Kobayashi et al. 2012). Therefore, because percutaneous exposure bypasses first pass metabolism, route-specific differences in toxicokinetics are anticipated.

Some individuals are recognized as poor metabolizers of phenacetin via CYP1A2, although the incidence of this phenotype is expected to be less than 1% of the general population (Parkinson 2001). There is also enormous inter-individual variability in CYP1A2 levels, and males tend to have higher levels than females. While genetic defects are extremely rare (Parkinson et al. 2013), individuals with limitations in the ability to metabolize phenacetin to acetaminophen via CYP1A2 convert a greater fraction to the toxic arylhydroxylamine metabolite (Insel 1993).  Another potentially sensitive subpopulation is individuals with glucose-6-phosphate dehydrogenase (G6PD) deficiency. The red blood cells of patients with this enzyme defect are more susceptible to oxidative stress, and oxidant drugs such as phenacetin may therefore lead to acute or chronic hemolysis (WHO 1989).

6.2.2 Acute toxicity

Phenacetin is of low to moderate acute oral toxicity in rats, with estimated LD50 values varying between 1650 and 4000 mg/kg bw (Boyd 1959; Hart 1947; Boyd and Hottenroth 1968). Large but sublethal acute doses may cause methemoglobinemia and hemolytic anemia in humans and rats, although these endpoints are more generally associated with chronic overdosage (Jensen and Jollow 1991; Gilman et al. 1990). The acute hemolytic anemia may be severe and accompanied by intravascular hemolysis, hemoglobinuria, and acute anuria, particularly in individuals with G6PD deficiency (de Leeuw et al. 1963). Phenacetin may also cause changes in energy and mentation and is known to have mood-altering properties similar to caffeine, a factor that may contribute to its abuse liability (Margetts 1976; Kincaid Smith 1988).

No studies of acute phenacetin toxicity via the dermal route of exposure were identified.

6.2.3 Repeat-dose toxicity

Phenacetin was introduced into clinical medicine in 1887 and chronic overdose has long been associated with toxic effects, particularly of the hematopoietic and renal systems. An etiologic link between chronic phenacetin consumption and kidney disease began to emerge in Europe when, following the influenza pandemic of 1918, daily ingestion of phenacetin became routine for many individuals (Rennke and Denker 2007). Erythrocyte damage, including methaemoglobin and Heinz body formation, as well as haemolytic anemia, were also recognized as common sequelae of prolonged phenacetin use or abuse (Brodie and Axelrod 1949; Davidson 1971). The first description of the nephropathy caused by chronic phenacetin intake was made by Spühler and Zollinger in 1953, who coined the term "primary chronic interstitial nephritis" to describe the characteristic renal lesions (as reported in Sanerkin and Weaver 1964). The classic picture of phenacetin analgesic nephropathy includes medullary interstitial nephritis and fibrosis, papillary and proximal tubule damage, and chronic renal failure with loss of concentrating ability (HSDB 2016).

Accurate estimates of the dosages of phenacetin that lead to analgesic nephropathy are difficult to establish, as they are largely based on patient recall over a period of years or decades, many of whom are not forthcoming. In the 1960s, Gault and co-workers (1968), while noting that only a small segment of the population grossly abuses analgesics, estimated the per capita annual consumption of phenacetin to be as high as 40 g in Australia, 25 g in Denmark, 23 g in Switzerland and 6 - 7 g in Canada.  It has been estimated that decreased concentrating ability or a mild reduction in glomerular filtration rate may be observed following cumulative intake of as little as 1 kg of phenacetin, whereas frank kidney disease requires a minimum intake of 2 to 3 kg, generally over a period of 6 to 8 years (Rennke and Denker 2007). Therefore, a worst case estimate of 10 mg/kg bw/d phenacetin can be derived for the development of analgesic nephropathy (assuming an adult bw of 70.9 kg and ingestion of 2 kg over 8 years), although the uncertainty associated with this value is high.

Phenacetin toxicity has also been studied extensively in laboratory animals. The following description is not intended to be exhaustive, but rather focusses on the lowest published doses associated with toxicity. On the basis of reversible formation of methemoglobin and Heinz bodies and an increase in peripheral reticulocytes in rats following administration of 500 mg phenacetin per kg bw by oral gavage 5 times weekly for 4 weeks (Boelsterli et al. 1983) The lowest observed effect level (LOEL) for phenacetin in repeat dose animal studies appears to be 350mg/kg bw/d. Animal models also show striking similarity to the renal functional changes associated with chronic analgesic use in humans (Bach and Hardy 1985). Angervall and Bengtsson (1968) administered 450 mg/kg bw/d phenacetin to female SD rats in diet for 40 weeks, which is the dose they estimated to be "the highest possible dose which would not produce general toxic effects" (now referred to as the MTD or maximum tolerated dose). The dose used appeared to have a stimulatory effect similar to that observed in humans who take large doses, although the authors note that in animal studies using higher doses, a depressive effect is observed. After 34 weeks, a decrease in urine concentrating capacity consistent with renal tubular impairment was observed, which was rapidly reversible upon discontinuation of the drug (Angervall and Bengtsson 1968). More recently, in a study of toxicogenomic biomarkers for renal papillary injury in rats, Uehara and colleagues (2013) used phenacetin as a positive control. Male SD rats were administered phenacetin by oral gavage at 2000 mg/kg bw (single dose) or 1000 mg/kg bw/d (daily for 3, 7, 14, or 28 days), and kidney tissue was harvested and used for gene expression analysis 24 hours after administration in the single-dose protocol and on days 4, 8, 15 and 29 of the repeat-dose study. Phenacetin-induced changes in genomic biomarkers associated with renal papillary injury occurred after a single dose and were observed one day following exposure, with histopathological changes apparent at four days post-dose.

No repeat-dose studies via the dermal route of exposure were identified.

6.2.4 Developmental and reproductive toxicity

There is limited evidence from animal studies to suggest that continuous exposure to phenacetin is associated with reproductive toxicity in rodents. Oral administration of phenacetin at doses of 600 to 1200 mg/kg bw/d from gestational days 0 to 20 is reportedly associated with reduced fetal weight, although the magnitude of the effect is not stated (Baethke and Muller 1965 as cited in IARC 1980). While there was no evidence of teratogenicity, delayed skeletal growth and an increase in supernumerary ribs^Footnote6 was observed at doses of 150 mg/kg bw and above in the same study (no further details reported).

In humans, the US-based Collaborative Perinatal Project monitored 5546 mother-child pairs with first trimester exposure to phenacetin (Briggs et al. 2011). No evidence suggested an association between phenacetin exposure in utero and large categories of major or minor malformations, although possible associations with some specific defects were noted: craniosynostosis (six cases); adrenal syndromes (five cases); anal atresia (seven cases); and accessory spleen (five cases). However, whether these associations are statistically significant is unknown and further independent confirmation is lacking (Briggs et al. 2011). Moreover, the fact that phenacetin was rarely used alone but rather in combination with other agents (usually acetylsalicylic acid and caffeine) further confounds interpretation of these results.

In a survey of 229 101 completed pregnancies in Michigan Medicaid recipients between 1985 and 1992, phenacetin exposure during the first trimester was reported in 368 cases. A total of 24 major birth defects were recorded versus 16 expected in this cohort, and it was concluded that these data do not support an association between phenacetin exposure and congenital defects (Briggs et al. 2011). The US FDA placed phenacetin in Pregnancy Risk Category B, which indicates that animal reproduction studies have failed to demonstrate a risk to the fetus but that there are no adequate and well-controlled studies in pregnant women.

6.2.5 Genotoxicity and carcinogenicity

Phenacetin is mutagenic in Salmonella typhimurium TA100 in the presence of liver 9000 g supernatant fractions (S9) from polychlorinated biphenyl (PCB)-treated hamsters but not rats (Nohmi et al. 1983). This is believed to be a result of species differences in deacetylation activity between rat and hamster liver microsomes, such that phenacetin is deacetylated to form direct-acting mutagens at rates 9 to 150 times greater in hamsters than in rats (Nohmi et al. 1983)^Footnote7. Similarly, Camus and colleagues (1982) demonstrated that urine from phenacetin-treated hamsters but not rats is mutagenic in S. typhimurium TA100, and that N-hydroxyphenacetin is a proximate mutagenic metabolite of phenacetin following N-deacetylation.

There is also evidence that phenacetin causes chromosomal alterations or DNA damage in in vivo tests. A mouse micronucleus test indicated that relatively high doses of phenacetin (600 mg/kg bw and above) produced increases in micronuclei in bone-marrow erythrocytes, whether administered orally or intraperitoneally (Hayashi et al. 1989). Similar results were observed in rats administered phenacetin by oral gavage for 14 days at doses of 500 mg/kg bw and above (Asanami et al. 1995). In the gpt delta rat, a transgenic strain that possesses reporter genes for in vivo point mutations, 52 weeks of phenacetin treatment (0.5% in diet, estimated to be 202 and 246 mg/kg bw/d in males and females, respectively) induced an increase in gpt mutant frequency in the kidney of male, but not female, rats, while no significant change in gpt mutant frequency was observed in either sex after 26 weeks (Kawamura et al. 2014). Although not direct evidence of genotoxicity, a dose-related increase in cellular proliferation in the urothelium of the bladder and kidney was observed in male SD rats exposed to phenacetin for 6 weeks in the diet at 1.0% and higher (Johansson et al. 1989). The induction of regenerative hyperplasia consequent to cytotoxicity is associated with an increase in the rate of mutation accumulation in the target organ and may influence tumour development.

In long-term carcinogenicity studies, phenacetin is a multi-sex, multi-site, multi-species carcinogen. In rats, it induces tumours in the kidney, nasal cavity, stomach and urinary bladder of males and the ear/Zymbal's gland, mammary gland, nasal cavity and urinary bladder of females. In mice, target sites include the kidney in males and the urinary bladder in females (CPDB 2007). The TD50, or the daily dose to induce tumours in half of test animals that would have remained tumour-free at zero dose, is 1250 mg/kg bw/d in rats and 2140 mg/kg bw/d in mice (CPDB 2007). In carcinogen risk assessment, a benchmark dose approach based on the lower 95% confidence limit on the dose that induces tumours in 10% of animals (the LTD10) is generally used. A reliable estimate of the LTD10 can be derived using the TD50, and its lower 99% confidence limit according to the method of Gold and colleagues (2003). For phenacetin, the harmonic mean of LTD10 values from the most potent target site in each positive experiment in the Carcinogenic Potency Database (CPDB) is 115 mg/kg bw/d in rats and 248 mg/kg bw/d in mice (CPDB 2007).

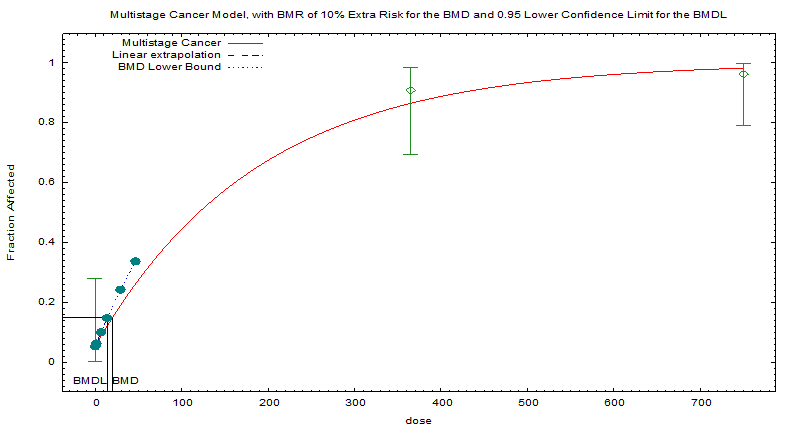

Extrapolation from the LTD10 or other estimated dose near the lower limit of the observable range can also be used to derive a slope factor or unit risk factor, in order to estimate lifetime cancer risk. Using the BMDS 2.6 software (US EPA 2015) and the results of all tumour-bearing males, a multistage cancer model was fitted to the data of Isaka et al. (1979). This chronic dietary rat study was selected on account of its sensitivity in terms of adequate number of animals per group, adequate number of groups to model dose response, and the multiplicity of tissues examined for evidence of neoplastic transformation. The data from males only was modelled as they were more sensitive to the carcinogenic effects of phenacetin than females. The resulting BMDL10 of 13.75 mg/kg bw/d (see Appendix B for details) is an order of magnitude lower than the LTD10 estimate based on the harmonic means of extrapolated TD50 values from all studies (both sexes) in the CPDB as described above. The cancer slope factor based on this model was determined to be 7.27 [ug/kg/d]-1, which following allometric scaling to the ⅔ power of body weight, corresponds to a human-equivalent value of 1.13 [ug/kg/d]^-1.

In the clinical and epidemiological literature, cases of renal pelvic and other urothelial tumours in patients who were heavy users of phenacetin-containing analgesics are well-documented, although phenacetin was generally used in combination with other analgesics, which makes it difficult to parse the contribution of phenacetin alone. Despite this limitation, a vast number of studies have been published that consistently suggest strong-to-moderate associations between regular use of phenacetin-containing analgesics and cancers of the renal pelvis and ureter (for review see IARC 2012; Health Council of the Netherlands 2012). In its evaluation of phenacetin, the IARC Working Group (2012) concluded as follows:

It has been estimated that the total quantity of phenacetin taken by chronic heavy users ranged from 1.1-10.0 kg, with a latency period from beginning of the use to the diagnosis of the tumour averaging 24 years (Schmähl and Bunk 1991). Thus, the chronic daily dose leading to tumour formation in humans can be roughly estimated as 1.8 - 16.1 mg/kg bw/d, although confidence in these estimates is low. Note that the usual dose of phenacetin as an over-the-counter remedy for pain and fever was 300 mg four to six times per day (IARC 1977), which is equivalent to 16.9 - 25.4 mg/kg bw/d based on an adult bw of 70.9 kg.

6.3 Characterization of risk to human health

Consumer exposure to phenacetin is expected to be limited to the use of a small number of hair dye preparations, where the principle route of exposure is through dermal contact. As no suitable data from dermal studies were identified, a conservative estimate of systemic dose via the dermal route was derived using the predicted maximum flux, which defines the theoretical highest exposure potential attainable for a given chemical. The per event systemic exposure was estimated to be 0.011 mg/kg bw. Hair dye products are estimated to be used up to 12 times per year, leading to a dose-averaged chronic exposure of 0.00035 mg/kg bw/d.

Based principally on the assessments of the International Agency for Research on Cancer (IARC 2012), the US EPA (2002) and the US NTP (2014), the critical effect for characterization of risk to human health for phenacetin is carcinogenicity. Phenacetin is carcinogenic to humans and animals, and although the mechanism of induction for the tumours has not been fully elucidated, the available evidence indicates this substance or its metabolites may have genotoxic potential. The rat appears to be more sensitive than the mouse and males appear more sensitive than females. Therefore, the critical effect level was determined to be the lower 95% confidence limit on the benchmark dose (BMDL10) equal to a 10% increase in the incidence of all tumour types in treated male rats relative to controls in the study of Isaka et al. (1979). Thus, the point of departure for risk characterization is the rat BMDL₁₀ of 13.75 mg/kg bw/d.

Comparison of the chronic systemic exposure level from use of hair dye with the rat oral BMDL10 yields an MOE greater than 39,000 (Table 6-3), which indicates a low level of concern. While the MOE is a useful approach to characterize the magnitude of a risk, it cannot be used to directly quantify the increased probability of an adverse health effect. Therefore, a human cancer potency value for phenacetin was also derived using a multistage cancer model and allometric scaling. The oral slope factor of 1.13 [ug/kg/d]^-1 can be used to calculate the incremental lifetime cancer risk of exposure to phenacetin through the use of hair dye products (see Appendix B). The carcinogenic risk is estimated to be 4.6 x 10^-7, which is widely regarded as negligible.

With respect to non-cancer endpoints, nephropathy and hematotoxicity have also been associated with both prolonged exposure to phenacetin as well as large acute doses. The lowest LOEL for phenacetin from repeat-dose animal studies appears to be 350 mg/kg bw/d, based on reversible formation of methemoglobin and Heinz bodies and an increase in peripheral reticulocytes in rats following administration by oral gavage for 4 weeks (Boelsterli et al. 1983). A comparison of this critical effect level with the estimated per event systemic dose of 0.0107 mg/kg bw/d from the use of phenacetin-containing hair preparations results in an MOE for short-term exposure of approximately 33,000 (Table 6-3).

The margins between upper-bounding estimates of exposure and critical effect levels observed in animal studies are considered adequate to account for both cancer and non-cancer effects and any uncertainties in the toxicological and exposure databases.

While exposure of the general population to phenacetin is not of concern at current levels, this substance is considered to have a health effect of concern based on its carcinogenic potential. Therefore, there may be a concern for human health if exposure were to increase.

6.4 Uncertainties in evaluation of risk to human health

Confidence in the exposure database is considered moderate, as although Canadian data were available on cosmetics to allow the derivation of upper-bounding exposure estimates, no experimental dermal absorption data were identified for phenacetin, and systemic exposure via the dermal route was estimated using a predictive algorithm for skin permeability. Confidence in the hazard database is high, as the adverse effects associated with exposure to this substance are extensively documented.

There is uncertainty concerning the scientific validity of the oral-to-dermal route extrapolation. On account of its short half-life and the rate and extent of pre-systemic metabolism following oral exposure, phenacetin is not an ideal candidate for extrapolating toxicity from the enteral to parenteral routes. However, the extrapolation is considered highly conservative, as the toxic metabolite(s) are a product of the first-pass effect; this source of uncertainty therefore does not detract from confidence in the proposed conclusion. Even considering equivalent internal dosimetry in terms of area under the curve, the peak concentration (Cmax) of the reactive metabolite(s) is expected to be lower via the dermal route and thus less likely to saturate detoxification or DNA repair mechanisms.

Lastly, there is uncertainty regarding the use of dose averaging to amortize doses received intermittently over a period of chronic exposure, particularly for a substance with a relatively short biological half-life. The principle of dose averaging is based on Haber's rule and the assumption that toxicity is related to the total combined exposure. While the basic concept is routinely applied in cancer risk assessment for genotoxic carcinogens, there is uncertainty as to the extent which average exposure calculated by dose averaging reflects the relevant measure of exposure in toxicological terms. However, the comparison of effect levels from laboratory studies involving chronic exposure over the course of a lifetime with brief, intermittent exposure in humans is considered highly conservative.

7. Conclusion

Considering all available lines of evidence presented in this draft screening assessment, there is low risk of harm to organisms and the broader integrity of the environment from phenacetin. It is proposed to conclude that phenacetin does not meet the criteria under paragraphs 64(a) or (b) of CEPA as it is not entering the environment in a quantity or concentration or under conditions that have or may have an immediate or long-term harmful effect on the environment or its biological diversity or that constitute or may constitute a danger to the environment on which life depends.

Based on the information presented in this draft screening assessment, it is proposed to conclude that phenacetin does not meet the criteria under paragraph 64(c) of CEPA as it is not entering the environment in a quantity or concentration or under conditions that constitute or may constitute a danger in Canada to human life or health.

Therefore, it is proposed to conclude that phenacetin does not meet any of the criteria set out in section 64 of CEPA.

References

Angervall L, Bengtsson U. 1967. Impairment of renal concentrating capacity in albino rats induced by phenacetin and acetylsalicylic acid. Acta Pharmacologica et Toxicologica 26:105 112.

Asanami S, Shimono K, Sawamoto O, Kurisu K, Uejima M. 1995. The suitability of rat peripheral blood in suchronic studies for the micronucleus assay. Mutation Research Letters 347:73–78.

Bach PH, Hardy TL. 1985. Relevance of animal models to analgesic-associated renal papillary necrosis in humans. Kidney Int. 28:605–613.

Baethke R, Müller B. 1965. Embryotoxic activity of phenacetin during chronic studies on rats (Ger.). Klin. Wochenschr. 43:364–368.

Boelsterli UA, Shie KP, Brändle E, Zbinden G. 1983. Toxicological screening models: Drug-induced oxidative hemolysis. Toxicology Letters 15:153–1588.

Boyd EM. 1959. The acute oral toxicity of phenacetin. Toxicology and Applied Pharmacology 1:240–249.

Boyd EM, Hottenroth SM. 1968. The toxicity of phenacetin at the range of the oral LD 50 (100 days) in albino rats. Toxicology and Applied Pharmacology 12:80–93.

Briggs GG, Freeman RK, Yaffe SJ. 2011. Drugs in pregnancy and lactation: A reference guide to fetal and neonatal risk. Philadelphia (PA): Lippincott Williams & Wilkins. p. 1149.

Brodie BB, Axelrod J. 1949. The fate of acetophenetidin (phenacetin) in man and methods for the estimation of acetophenetidin and its metabolites in biological material. Journal of Pharmacology and Experimental Therapeutics 97:58–67.

Broséus J, Gentile N, Esseiva P. 2016. The cutting of cocaine and heroin: A critical review. Forensic Science International 262:73–83.

[Cal/EPA] California Environmental Protection Agency. 1992. Expedited cancer potency values and proposed regulatory levels for certain proposition 65 carcinogens.

Camus AM, Friesen M, Croisy A, Bartsch H. 1982. Species-specific activation of phenacetin into bacterial mutagens by hamster liver enzymes and identification of N-hydroxyphenacetin O-glucuronide as a promutagen in the urine. Cancer Research 42:3201–8.

Canada. 1999. Canadian Environmental Protection Act, 1999. S.C. 1999, c. 33. Canada Gazette Part III, vol. 22, no. 3.

Canney AH, Pantuck EJ, Hsiao KC, Garland WA, Anderson KE, Alvares AP, Kappas A. 1976. Enhanced phenacetin metabolism in human subjects fed charcoal-broiled beef. Clinical Pharmacology & Therapeutics 20:633–642.

ChemIDplus [database]. 1993– . Bethesda (MD): US National Library of Medicine. CAS 62-44-2 search query. [accessed 2016 Jan 27].

Cleek RL, Bunge AL. 1993. A new method for estimating dermal absorption from chemical exposure. 1. General approach. Pharm Res. 10:497–506.

Cole C, Jones L, McVeigh J, Kicman A, Syed Q, Bellis M. 2011. Adulterants in illicit drugs: a review of empirical evidence. Drug Testing and Analysis3:89–96.

[CPDB] Carcinogenic Potency Database. 2007. Phenacetin. [updated 2007 Oct 3].

Davidson RJL. 1971. Phenacetin-induced haemolytic anaemia. Journal of Clinical Pathology 24:537–541.

de Leeuw NK, Shapiro L, Lowenstein L. 1963. Drug-induced hemolytic anemia. Annals of Internal Medicine 58:592–607.

[DPD] Drug Product Database [database]. 2010. Ottawa (ON): Health Canada.

[ECCC] Environment and Climate Change Canada. 2016a. Science Approach Document: Ecological Risk Characterization of Organic Substances.

[ECCC] Environment and Climate Change Canada. 2016b. Gatineau (QC): Data used to create substance-specific hazard and exposure profiles and assign risk classifications.

Environment Canada, Health Canada. 2007. Categorization. Ottawa (ON): Government of Canada. [updated 2007 Apr 20;.

Environment Canada. 2009. DSL Inventory Update data collected under the Canadian Environmental Protection Act, 1999, section 71: Notice with respect to certain inanimate substances (chemicals) on the Domestic Substances List. Data prepared by: Environment Canada, Health Canada; Existing Substances Program.

[EPI Suite] Estimation Program Interface Suite for Microsoft Windows [estimation model]. c2000-2010. Ver. 4.10. Washington (DC): US Environmental Protection Agency, Office of Pollution Prevention and Toxics; Syracuse (NY): Syracuse Research Corporation.

Fukami T, Yokoi T. 2012. The emerging role of human esterases. Drug Metabolism and Pharmacokinetics 27:466–477.

Gault MH, Rudwal TC, Redmond NI. 1968. Analgesic habits of 500 veterans: incidence and complications of abuse. Canadian Medical Association Journal98:619.

Gilman AG, Rall TW, Nies AS, Taylor P, editors. 1990. Goodman and Gilman's The pharmacological basis of therapeutics. 8th ed. New York (NY): Pergamon Press.

Gold LS, Gaylor DW, Slone TH. 2003. Comparison of cancer risk estimates based on a variety of risk assessment methodologies. Regul Toxicol Pharmacol. 37:45–53.

Halevy S. 1979. Drug sensitivity of the neonate. In: Marx GF (ed.). Clinical management of mother and newborn. New York (NY): Springer-Verlag. p. 101.

Hart ER. 1947. The toxicity and analgetic potency of salicylamide and certain of its derivatives as compared with established analgetic-antipyretic drugs. Journal of Pharmacology and Experimental Therapeutics 89:205–209.

Hayashi M, Sutou S, Shimada H, Sato S, Sasaki YF, Wakata A. 1989. Difference between intraperitoneal and oral gavage application in the micronucleus test: the 3rd collaborative study by CSGMT/JEMS· MMS. Mutation Research/Genetic Toxicology 223:329–344.

Health Canada. 1998. Exposure factors for assessing total daily intake of priority substances by the general population of Canada. Unpublished report. Ottawa (ON): Health Canada, Environmental Health Directorate.

Health Canada. 2015b. Prescription Drug List. [accessed 2016 Jan 28].

Health Council of the Netherlands. 2012. Phenacetin - Evaluation of the carcinogenicity and genotoxicity. Subcommittee on the Classification of Carcinogenic Substances of the Dutch Expert Committee on Occupational Safety. The Hague (NL). No. 2012/21.

Hinson JA. 1983. Reactive metabolites of phenacetin and acetaminophen: a review. Environmental Health Perspectives 49:71.

[HSDB] Hazardous Substances Data Bank [database on the Internet]. 1983– . Bethesda (MD): National Library of Medicine (US). [accessed 2016 Feb].

[IARC] International Agency for Research on Cancer. 1977. Some miscellaneous pharmaceutical substances. IARC Monogr Eval Carcinog Risks Hum. 13:1–255.

[IARC] International Agency for Research on Cancer. 1980. Some pharmaceutical drugs. IARC Monogr Eval Carcinog Risks Hum. 24:1–337.

[IARC] International Agency for Research on Cancer. 2012. Pharmaceuticals. IARC Monogr Eval Carcinog Risks Hum. 100A:377–398.

Insel PA. 1993. Analgesic-antipyretics and anti-inflammatory agents; Drugs employed in the treatment of rheumatoid arthritis and gout. In: Sanford L and Gilman A, editors. Goodman and Gilman's the pharmacological basis of therapeutics, 8th ed. McGraw-Hill, Inc. Health Professions Division.

[IPCS] International Programme on Chemical Safety. 2006. Dermal Absorption. Environmental Health Criteria 235.

Isaka H, Yoshii H, Otsuji A, Koike M, Nagai Y, Koura M, Sugiyasu K, Kanabayashi T. 1979. tumours of Sprague-Dawley rats induced by long-term feeding of phenacetin. Gan. 70:29–36.

Jensen CB, Jollow DJ. 1991. The role of N-hydroxyphenetidine in phenacetin-induced hemolytic anemia. Toxicology and Applied Pharmacology 111:1–2.

Johansson SL, Radio SJ, Saidi J, Sakata T. 1989. The effects of acetaminophen, antipyrine and phenacetin on rat urothelial cell proliferation. Carcinogenesis 10:105–111.

Kawamura Y, Hayashi H, Masumura K, Numazawa S, Nohmi T. 2014. Genotoxicity of phenacetin in the kidney and liver of Sprague-Dawley gpt delta transgenic rats in 26-week and 52-week repeated-dose studies. Toxicology 324:10–17.

Kincaid Smith P. 1988. Analgesic nephropathy. Australian and New Zealand Journal of Medicine 18:251–254.

Kobayashi Y, Fukami T, Nakajima A, Watanabe A, Nakajima M, Yokoi T. 2012. Species differences in tissue distribution and enzyme activities of arylacetamide deacetylase in human, rat, and mouse. Drug Metabolism and Disposition 40:671–679.

Kriger Research Center. 2012. Kriger's Textbook of Pharmacology. Altaspera Publishing and Literary Agency Inc. 278 pp.

Kroes R., Renwick AG, Feron V, Galli CL, Gibney M, Greim H, Guy RH, Lhuguenot JC, Van de Sandt JJM. 2007. Application of the threshold of toxicological concern (TTC) to the safety evaluation of cosmetic ingredients. Food and Chemical Toxicology 45:2533–2562.

Lexchin J. 2005. Drug withdrawals from the Canadian market for safety reasons, 1963–2004. Canadian Medical Association Journal 172:765–767 (online Appendix).

Li WW, Li BG, Chen YZ. 1999. A new nor-sesquiterpene from Tripterygium wilfordii [J]. Chin J Appl Environ Biol. 5:267–274.

[LNHPD] Licensed Natural Health Products Database [database]. [modified 2014 Feb 27]. Ottawa (ON): Health Canada. [accessed 2016 May 10].

Margetts G. 1976. Phenacetin and paracetamol. Journal of International Medical Research4:55–70.

Nakagawa Y, Izumi K, Oikawa N, Sotomatsu T, Shigemura M, Fujita T. 1992. Analysis and prediction of hydrophobicity parameters of substituted acetanilides, benzamides and related aromatic compounds. Environmental Toxicology and Chemistry 11:901–916.

Nelson SD, Forte AJ, Vaishnav Y, Mitchell JR, Gillette JR, Hinson JA. 1981. The formation of arylating and alkylating metabolites of phenacetin in hamsters and hamster liver microsomes. Molecular Pharmacology 19:140–145.

[NHPID] Natural Health Products Ingredients Database [database]. [modified 2016 Apr 18]. Ottawa (ON): Health Canada. [accessed 2016 May 10].

Nohmi T, Yoshikawa K, Nakadate M, Ishidate M. 1983. Species difference in the metabolic activation of phenacetin by rat and hamster liver microsomes. Biochemical and Biophysical Research Communications 110:746–752.

[NTP] National Toxicology Program (US). 2014. Report on Carcinogens, 13th ed. Research Triangle Park (NC): US Department of Health and Human Services, Public Health Service.

O'Neil MJ. (ed.). 2001. The Merck Index - An Encyclopedia of Chemicals, Drugs, and Biologicals. 13th ed., Whitehouse Station (NJ): Merck and Co., Inc. p. 1292.

Osol A. (ed.). 1980. Remington's pharmaceutical sciences. 16th ed. Easton (PA): Mack Publishing Co. p. 1060.

Parkinson A. 2001. Biotransformation of xenobiotics. In: Casarett LJ, Klaassen CD, Doull J, eds. Casarett and Doull's toxicology: the basic science of poisons. 6th ed. McGraw-Hill Medical Pub. Division. p. 182.

Parkinson A, Ogilvie BW, Buckley DB, Kazmi F, Czerwinski M, Parkinson O. 2013. Biotransformation of xenobiotics. In: Klaassen CD, ed. Casarett and Doull's toxicology: the basic science of poisons. 8th ed. McGraw-Hill Medical Pub. Division. p. 1274.

[PCKOCWIN] Organic Carbon Partition Coefficient Program for Windows [Estimation Model]. 2008. Version 2.00. Washington (DC): US Environmental Protection Agency, Office of Pollution Prevention and Toxics; Syracuse (NY): Syracuse Research Corporation.

[PCPC] Personal Care Products Council. 2016. Phenacetin, monograph 2286. Cosmetic Ingredient Identification Database: International Nomenclature of Cosmetic Ingredients (INCI) Dictionary. [accessed 2016 Jan 27].

Potts RO, Guy RH. 1992. Predicting skin permeability. Pharm Res. 9:663–669.

Rennke HG, Denker BM. 2007. Analgesic abuse nephropathy. In: Renal pathophysiology: the essentials. 2nd ed. Lippicott, Williams and Wilkins. p. 351.

[RIVM] Rijksinstituut voor Volksgezondheid en Milieu. 2006. Cosmetics Fact Sheet: To assess the risks for the consumer. RIVM report 320104001/2006.

Sanerkin NG, Weaver CM. 1964. Chronic phenacetin nephropathy ("chronic interstitial nephritis" with papillary necrosis). British Medical Journal 1(5378):288.

[SCCNFP] Scientific Committee on Cosmetic Products and Non-Food Products Intended For Consumers. 2000. Notes of guidance for testing of cosmetic ingredients for their safety evaluation, 4th revision. SCCNFP/0321/00.

Schmähl D, Bunk B. 1991. Carcinogenic drugs and their relevance in risk assessment. In: Schettler G, Schmähl D, Klenner T, editors. Risk assessment in chemical carcinogenesis. Springer Berlin Heidelberg. p. 56–63.

Seidell A. 1941. Solubilities of inorganic and metal organic compounds: a compilation of quantitative solubility data from the periodical literature, Volume 2. van Nostrand.

Smith RL, Timbrell JA. 1974. Factors affecting the metabolism of phenacetin I. Influence of dose, chronic dosage, route of administration and species on the metabolism of [1-14C-acetyl] phenacetin. Xenobiotica 4:489–501.

Uehara T, Kondo C, Morikawa Y, Hanafusa H, Ueda S, Minowa Y, Nakatsu N, Ono A, Maruyama T, Kato I, Yamate J. 2013. Toxicogenomic biomarkers for renal papillary injury in rats. Toxicology 303:1–8.

[US EPA] US Environmental Protection Agency. 2002. Evaluation of the potential carcinogenicity of phenacetin. EPA/600/8-91/173.

[US EPA] US Environmental Protection Agency. 2015. Benchmark dose modelling software (BMDS) version 2.6.

[US FDA] US Food and Drug Administration. 1983. Human Drugs; Prescription and Over-the-Counter Drug Products Containing Phenacetin; Withdrawal of Approval of New Drug Application. Federal Register 48 194. [accessed 2016 Feb 16].

Velázquez F, Manríquez R, Maya L, Barrientos L, López-Dellamary F. 2009. Phenacetin isolated from Bursera grandifolia, a herbal remedy with antipyretic properties. Natural Product Communications 4:1575.

Venkatakrishnan K, Moltke LL, Greenblatt DJ. 1998. Human cytochromes P450 mediating phenacetin O-deethylation in vitro: Validation of the high affinity component as an index of CYP1A2 activity. Journal of Pharmaceutical Sciences 87:1502–1507.

Veronese ME, McLean S, D'souza CA, Davies NW. 1985. Formation of reactive metabolites of phenacetin in humans and rats. Xenobiotica 15:929–940.

Watanabe A, Fukami T, Takahashi S, Kobayashi Y, Nakagawa N, Nakajima M, Yokoi T. 2010. Arylacetamide deacetylase is a determinant enzyme for the difference in hydrolase activities of phenacetin and acetaminophen. Drug Metab Dispos. 38(9)1532-1537.

[WHO] World Health Organization. 1989. Glucose-6-phosphate dehydrogenase deficiency. Bull World Health Organ. 67:601–611.

Wiedemann HG. 1972. Applications of thermogravimetry for vapor pressure determination. Thermochimica Acta 3:355–366.

Williams FM, Rothe H, Barrett G, Chiodini A, Whyte J, Cronin MT, Monteiro-Riviere NA, Plautz J, Roper C, Westerhout J, Yang C, Guy RH. 2016. Assessing the safety of cosmetic chemicals: Consideration of a flux decision tree to predict dermally delivered systemic dose for comparison with oral TTC (Threshold of Toxicological Concern). Regulatory Toxicology and Pharmacology 76:174–186.

Yengi LG, Xiang Q, Pan J, Scatina J, Kao J, Ball SE, Fruncillo R, Ferron G, Wolf CR. 2003. Quantitation of cytochrome P450 mRNA levels in human skin. Analytical Biochemistry 316:103–110.

Appendicies

Appendix A. Upper-bounding estimated exposure from use of hair dye products

Calculation of systemic exposure based on maximum flux

The model of Potts and Guy (1992) calculates the skin permeability coefficient (K_p) (in cm/h) on the basis of permeant size (expressed as molecular weight) and lipophilicity (expressed as the logarithm of the octanol:water partition coefficient). Given that log K_o/w = 1.58 and molecular mass (weight) of phenacetin is 179.2 g/mole, log K_p is calculated as:

The Cleek and Bunge (1993) correction is then applied to account for the relative permeabilities of the stratum corneum and the epidermis:

The maximum flux (J_max) can then be calculated from the modified skin permeability coefficient and the aqueous solubility of the compound (C_sat ≈ 1 mg/mL) as follows:

Using the predicted maximum flux, surface area of exposure and duration of exposure, the maximum systemic dose may be estimated.

a. Assumptions are based on RIVM (2006) and Health Canada (1998).

Systemic exposure dose per event = 2.01 μg/cm²/h * 565 cm^2* 40/60 h / 70.9 kg

Chronic systemic dose = per event dose * 12/365

Appendix B. Calculation of carcinogenic risk

Derivation of the BMDL₁₀ for phenacetin

Benchmark dose calculations were performed using the BMDS 2.6 software (US EPA). The multistage cancer model was fitted to the data of Isaka et al. (1979) using all instances of tumours in males that were determined to be "effective animals" (Table B-1). The authors defined an effective animal as one that survived more than 24 months or died due to tumours that developed within 24 months. A benchmark response (BMR) equal to a 10% increase in tumor incidence relative to controls (BMD_0.1) was derived along with its 95% lower confidence limits (BMDL₁₀).

The multistage cancer model is the default model used by the US EPA for cancer bioassay data. Although other models are available for fitting dichotomous data, none offered either greater conservatism or improved goodness of fit (Table B-2). Therefore, the BMDL10 of 13.75 mg/kg bw/d from the multistage cancer model was selected as the point of departure for risk assessment (Figure B-1).

a. AIC is the Akaike information criterion, defined as AIC= -2 x (LL-p), where LL is the log-likelihood at the maximum likelihood estimates and p is the degrees of freedom. All else being equal, a lower AIC is preferred.
b. [(Observed value – expected value)/standard error]

Estimated incremental lifetime cancer risk based on carcinogenic potency of phenacetin

Cancer potency is proportional to the slope of the dose response curve at low doses. A multistage cancer model was fitted to the animal bioassay data of Isaka et al. (1979). There is an inherent assumption in this approach that data collected at high doses are also relevant at very low doses, or that the model is capable of extrapolating potency outside the range of experimental observations to yield estimates of "low" dose potency (Cal/EPA 1992).

To estimate cancer potency, the benchmark response (BMR) of 0.1 is divided by the lower 95% confidence limit on the dose that induces tumours in 10% of animals (BMDL₁₀).

Cancer slope factor = BMR/ BMDL₁₀ = 0.1/13.75 mg/kg bw/d = 7.27 [ug/kg/d]^-1

This cancer slope factor derived from the bioassay data may be allometrically scaled by the 2/3 power of body weight to yield a human-equivalent slope factor:

This value may be multiplied by the chronic exposure dose in order to derive an estimate of incremental lifetime cancer risk.
