Reference method for measuring emissions of nitrogen oxides from stationary sources: chapter 5


5 Apparatus

5.1 Sampling Train (Figure 1)

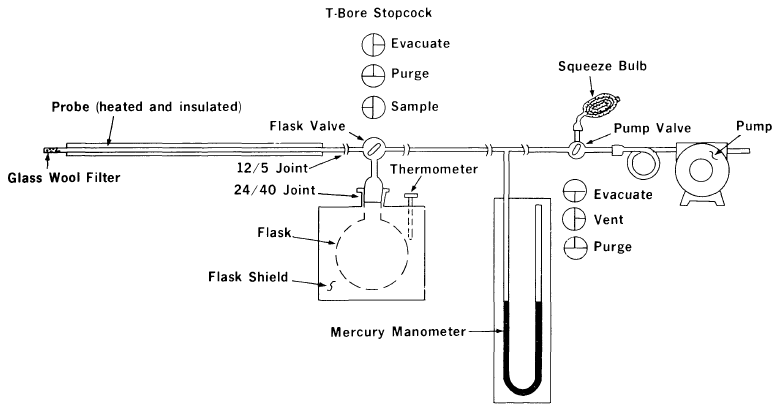

Figure 1. Sampling train for determination of oxides of nitrogen

Figure 1. Sampling train for determination of oxides of nitrogen (See long description below)
Description of Figure 1

From right to left, a pump feeds a pump valve with a squeeze bulb above and the tube train flowing left. This tube then continues to a split at another T valve with one end connected below to a Mercury Manometer, while the primary tube line goes to a flask valve. This valve connects down to a 24/40 joint into a shielded flask which has a thermometer. Flowing left from the flask valve is a 12/5 joint which then connects to a heated and insulated probe with a glass wool filter at the end. The T-bore stopcock can be set to evacuate, purge or sample.

5.2 Sample Recovery

5.3 Sample Analysis
